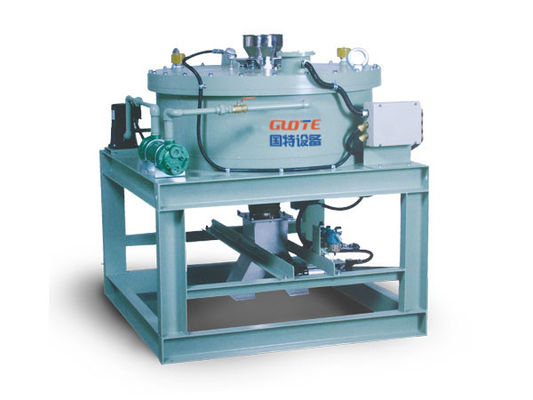

High Intensity Dry Powder Electromagnetic Separator for Mineral Iron Separation Top

Large Image : High Intensity Dry Powder Electromagnetic Separator for Mineral Iron Separation Top

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE, Guote
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$8,000.00/sets >=1 sets
Packaging Details:	standard export container,20GP,40GP ,40HQ,FR container,in bulk,the spare parts in wooden case or according to the customer's requirements.
Supply Ability:	100 Set/Sets per Month

Contact Now

High Intensity Dry Powder Electromagnetic Separator for Mineral Iron Separation Top

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	Different Models	Weight:	200 KG, Different
Warranty:	1 Year	Marketing Type:	Hot Product 2019
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	High Magnetic Strength Filed	Application:	Ore
Installation:	Engineer Guide	Color:	Customers' Request
Capacity:	5-20t/h	Product Name:	GDF High Field Strength Electromagnetic Separator
Price:	Negotible	Filter Net Sheet Number:	Different
Port:	Qingdao/Dalian/Shanghai

dry powder high intensity electromagnetic separator mineral iron separator

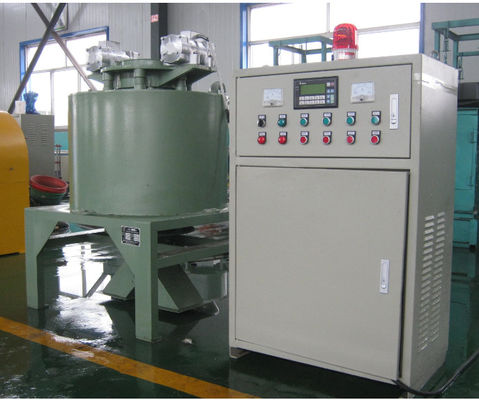

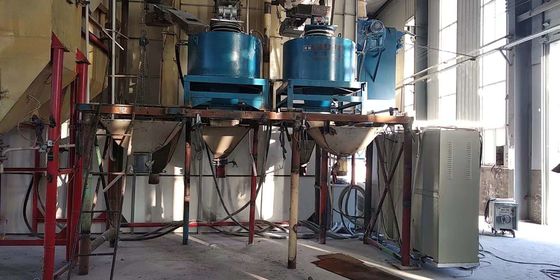

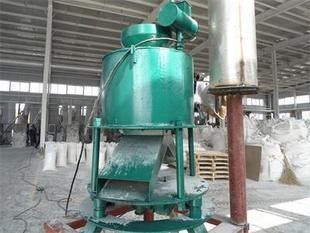

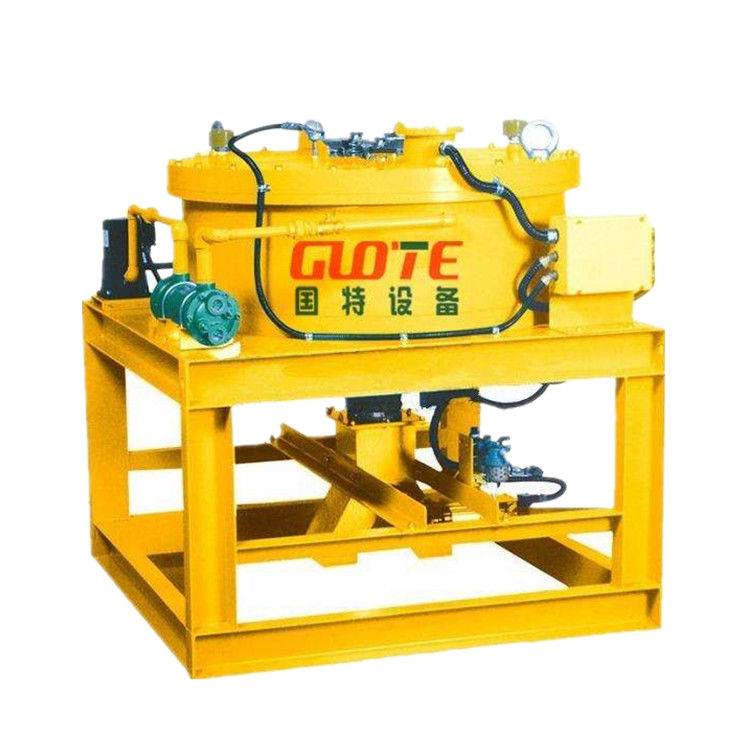

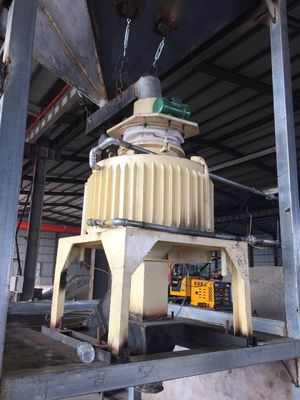

Product Show

High Intensity Dry Powder Electromagnetic Separator for Mineral Iron Separation Top 0

High Intensity Dry Powder Electromagnetic Separator for Mineral Iron Separation Top 1

High Intensity Dry Powder Electromagnetic Separator for Mineral Iron Separation Top 2

Product Description

Product Introduction:

GDF series electromagnetic dry powder magnetic separator used for Removal of feeble magnetic oxides in non-metallic mineral materials such as ceramics, glass, refractories, etc. It can also be used in pharmaceutical, chemical, food and other industries for material purification.There are two outlet at the bottom of the equipment : iron outlet and materials outlet Each equipment all equipped an electro control cabinet.

Technical features:

1.Wipe off fine materials that are not easy to circulate: under the effect of the vibration motor, the material, which is ≥ 200mm or with high humidity, can go throng the screen mesh.

2.Processing the material with high temperature: the standard model can processing material with up to 70 centigrade and the special model can process the material with higher temperature.

3. Easy installation: you can install the equipment in any way, as long as the frame is safe and stable.

4.Cleaning the magnetic filtering net easily: laying a plate at the discharging pole, and at the same time, turn off the power to erase the magnetism for the cleaning operation.
5. Separating the iron pollution and the material totally: the material definitely has no way to go into the separating chamber.

6.Simple connection : during operation ,the host vibration . The input and output of raw materials can be connected by external pipes or canvas bags .

Technical parameter:

Model	Standard			High strength magnetic force
Model	GDF-150	GDF-250	GDF-300	GDF-150H	GDF-250H	GDF-300H
Capacity (T/H)	5	15	20	5	15	20
Weight (kg)	200	400	450	800	1200	1400
Filter Net Outer Diameter (mm)	145	245	295	145	245	295
Filter Net sheet Number	13	15	15	13	15	15
Insulation Oil Amount (L)	18	50	50	60	70	70
Control Panel Size (mm)	300400540			350500600

Working principle:

Related Peoducts Links


permanent magnetic type
CTB(N/S) wet magnetic separator	GCT/F dry magnetic separator	GCX dry magnetic separator

electronmagnetic type
GDF dry electromagnetic separator	GTLH wet electromagnetic separator	GTDZ electromagnetic separator for slurry

Company Information

High Intensity Dry Powder Electromagnetic Separator for Mineral Iron Separation Top 6

Certification

High Intensity Dry Powder Electromagnetic Separator for Mineral Iron Separation Top 7

International Trade Department

High Intensity Dry Powder Electromagnetic Separator for Mineral Iron Separation Top 8

Our customers :

Our Services

1.EPC service for single equipment and whole production line.

2.OEM service for your personal equipment or production line

3.Testing before delivery and Pretesting in working site until get qualified products

4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.

Packaging & Shipping

High Intensity Dry Powder Electromagnetic Separator for Mineral Iron Separation Top 10

FAQ

Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
