83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency

83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency

Large Image :  83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency

Product Details:
Place of Origin: Shandong, China
Brand Name: GUOTE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $10,000.00/sets >=1 sets
Packaging Details: standard export container,20GP,40GP ,40HQ container,in bulk,the spare parts in wooden case or according to the customer's requirements.
Supply Ability: 10 Set/Sets per Month
Contact Now

83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency

Description
Applicable Industries: Energy & Mining Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product 2019 Warranty Of Core Components: 1 Year
Core Components: Motor Condition: New
Voltage: 220v Power: 83kw, 83kw
Dimension(L*W*H): Different Model Weight: 2000 Kg
Warranty: 1 Year Key Selling Points: High Efficiency
Keyword: Sand Making Machine Dust Control Area: 100 Cubic Meter
Capacity: 5-30 T/h Installation: Engineer Guide
Quality: High Level Rotate Speed: Adjustable
After Warranty Service: Video Technical Support After-sales Service Provided: Free Spare Parts
Keywords: Sand Making Machinery Price Port: QINGDAO

Input size:≤30 mm
Output size:0.125-4.75 mm(4-120 mesh) 4-6 ,6-8,8-16,16-26,26-40,40-70,70-120 mesh
Capacity:5-50 TPH
Finished product Usage:for quartz slab
Product Overview

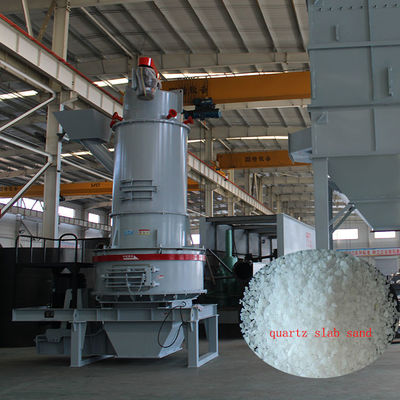

83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 0



Sand Making Machine
our patent product, feeding size less than 3 cm, can make 4-120 mesh quartz plate sand
finished product:high purity, no pollution, large output, low investment

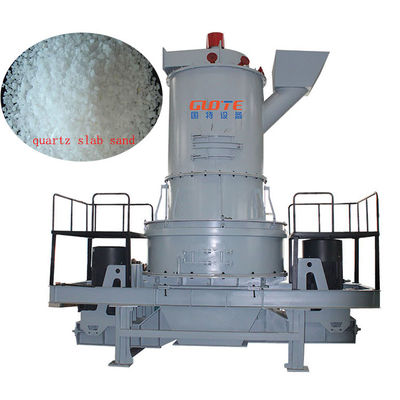

83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 1

Basic Introduction

Vertical sand making machine is our company's patented product, with the characteristics of large output, high purity, pollution-free and less investment. The  plate sand is
specially used for high-grade quartz plate, which can be used in plate, glass, ceramics, casting, construction and other industries.

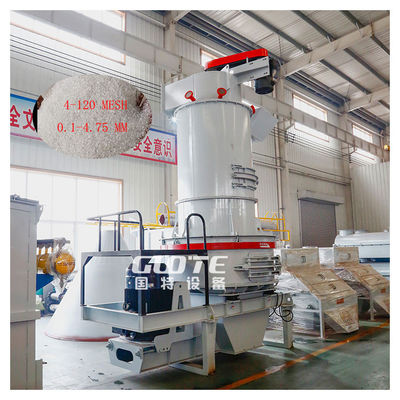

83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 2

Outstanding advantages

1. Large output and high efficiency. 2. The sand production rate is high, more than 90%. 3. The product has good iron removal
effect. 4. The entire equipment structure is simple and reasonable, easy to operate, low failure rate, easy maintenance. 5.
Environment-friendly and dust-free.

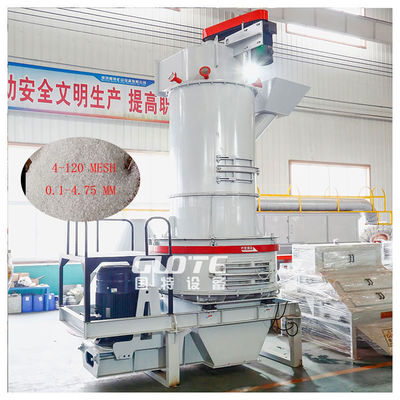

83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 3

Working principle

Feed requirements are less than 3cm, the material from the top of the equipment directly into the high-speed rotating turntable, at this time from the feed into the material and the surrounding into the material impact, stone hit stone, the formation of sand, you can get 4-120 qualified plate sand grain size.
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 4

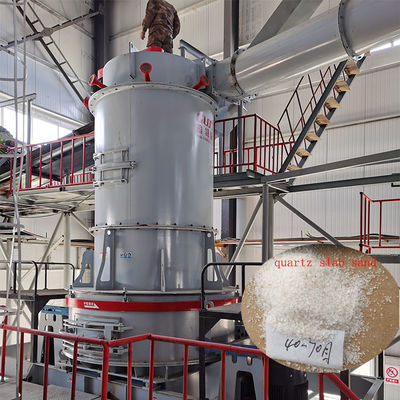

product scene picture
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 5
product scene picture
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 6
product scene picture
PRODUCT SPECIFICATIONS
Model
Feed granularity
(mm)
Product granularity
(mesh)

Total power
(kw)
Dust removal area
(㎡)
Rotating Speed
(rpm)
Productivity
(t/h)
GZP180
≤50
4-120
110
100
Variable speed
7-9
GZP200
≤80
4-120
130
150

8-12
GZP220
≤120
4-120
170
200

10-15
GZP260
≤150
4-120
260
300

15-20

Successful Project
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 7
Project in Vietnam
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 8
Project in Gangsu
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 9
Project in Xinjiang
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 10
Company Profile
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 11
Basic Company Introduction
Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 12
About GUOTE
Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as:quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 13
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 14
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 15
our laboratory
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 16
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 17
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 18
Certifications
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 19
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 20
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 21
Customer Photos
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 22

About customers:

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
Services,packing,FAQ
1.EPC service for single equipment and whole production line. 2.OEM service for your personal equipment or production line  3.Testing before delivery  and Pretesting in working site until get qualified products  4.24hours for technical Operation Guide and  4hours offer technical proposal for problem shooting.
83kw Quartz Sand Processing Plant Sand Making Machine High Efficiency 23
Q: Why we believe in Weifang GuoteMining Equipment  Company? A: 1. More than 10 years experience. Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry. A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery. Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality
