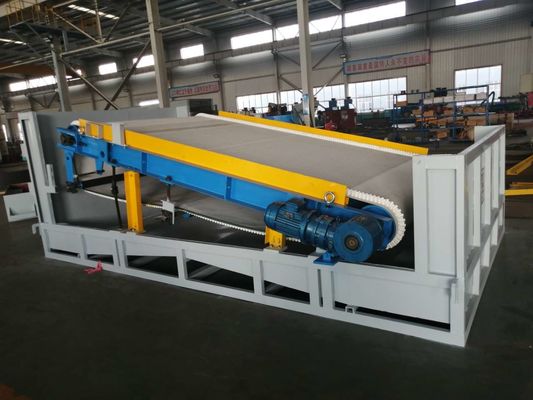

3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models

3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models

Large Image :  3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models

Product Details:
Place of Origin: Shandong, China
Brand Name: GUOTE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3,000.00/sets >=1 sets
Packaging Details: Specially made wooden boxes and containers (sea transport) for RCYB series conveyor belt magnetic separator for separating Iron
Supply Ability: 100 Set/Sets per Month magnetic separator for separating Iron
Contact Now

3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models

Description
Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Magnetic Separator
Production Capacity: 98% Voltage: 220V/380V
Dimension(L*W*H): Diffrent Model Weight: 3600 KG
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Key Selling Points: Self-discharging Application: Iron Removal
Magnetic Field Intensity: ≥15000GS Concentration Of The Slurry: 10-30%
Capacity: 8-50t/h Keywords: Magnetic Separator
Color: Customers' Requirements Machine Type: Beneficiation Equipment
Installation: Engineer Guide Advantage: Self Discharging
Quality: China Standard Port: Qingdao

GTGB Series 4,500-15,000GS Wet Type Permanent Magnetic Separator
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 0
Products Description
GTGB series permanent high filed strength magnetic flat type magnetic separator is our latest research and development of high gradient and high intensity magnetic separator equipment.

It is mainly used to 1.2 mm fine non-metallic minerals, such as quartz, feldspar and nepheline. Kaolin iron impurities removing purification, can also be used in red iron ore (hematite, limonite and siderite, etc.), manganese ore, ilmenite, wolframite variety of weak magnetic ore wet separation and black and white tungsten separation, black tungsten and tin separation.
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 1

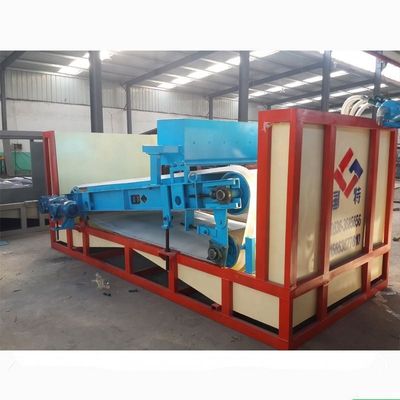

Details Images
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 2
Product Paramenters
Model
Capacity
(t/h)
Magnetic field Intensity
Concentration of the Slurry
Belt Speed
Power
(kw）
Machine Size
GTGB815
8-10
15,000GS

10-30%
2-8
(r/min)
1.1
2500X1500X1400
GTGB1020
10-15
1.5
3000X1600X1400
GTGB1520
15-20
2.2
3000X2000X1500
GTGB2025
20-25
3
4200X2600X1700
GTGB2030
25-30
4
4600X2600X1700
GTGB2030
30-35
4
4900X2600X1900

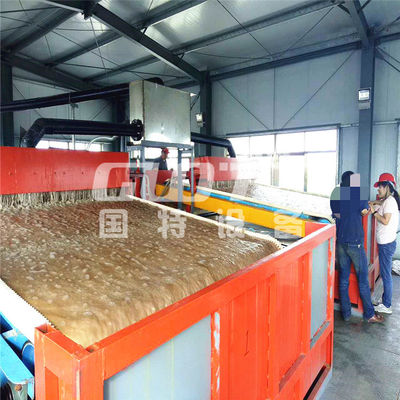

Working principle
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 3
The slurry enters the distribution device of the magnetic separator through the feeding pipe, and after fully dispersed, it is evenly sprinkled on the belt of iron removing which on the upper part of the magnetic plate.
Under the action of gravity, the slurry flows downward along the inclined direction of the magnetic plate. The ferromagnetic material contained in the slurry is firmly adsorbed on the iron-removing belt under the strong magnetic field provided by the magnetic plate,the motor drive the belt to move
upward along the direction of the magnetic plate, and at the same time, the adsorbed ferromagnetic material is brought into the iron removing area. Washed by the flushing water and get into the tailing hopper for concentrated collection and the non-magnetic slurry continues to flow down the magnetic plate, and the inflow into the concentrate bucket for collection.

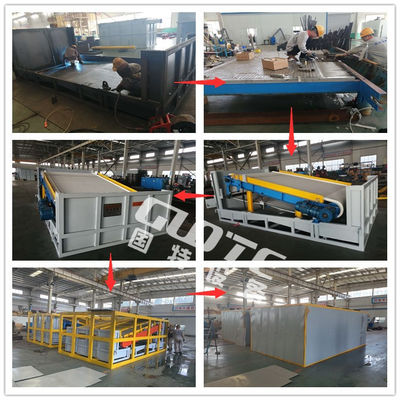

Manufacturing Technique
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 4
Outstanding Advantages
1.Selection of high performance NdFeB magnetic materials , the magnetic circuit design is unique, the magnetic filed intensity , the surface magnetic field strength can reach15000Gs.
2.Compared to the other permanent separation of the magnetic field , Large scavenging area of magnetic field , the magnetic separation effect is better.
3.Variable frequency adjustable belt speed , Power saving and energy conservation

4. Automatic cleaning of adsorbed magnetic materials

5.Compared to other high gradient magnetic separator energy saving,power saving
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 5

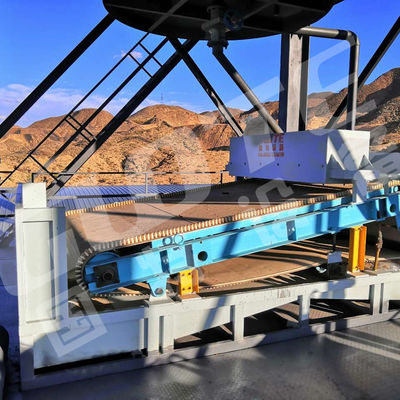

Site Picture 1
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 6

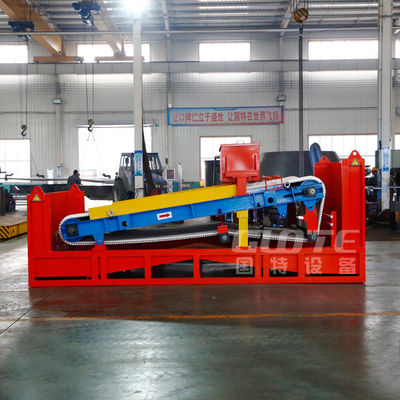

Site Picture 2
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 7
Recommend Products
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 8

GTLH vertical ring Magnetic Separato

1.0T 1.3T 1.5T Wet Process Electromagnetic Type
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 9

GTGB Plate Magnetic Separator

4,500GS-15,000GS Wet Process Permanent
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 10

CTB/N/S Drum Magnetic Separator

1,000-6,500GS Wet Process Permanent Magnetic Type
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 11

GDF Magnetic Separator

10,000-20,000GS Dry Powder Electromagnetic Type
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 12

GCT/F Roller Magnetic Separator

15,000GS Dry Permanent Multi Rollers Type
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 13

GTZ Drum Magnetic Pulley

1,000-7,000GS Dry Permanent Drum Magnetic Pulley
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 14
Company Profile
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 15
Basic Company Introduction
Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 16
About GUOTE
Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 17
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 18
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 19
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 20
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 21
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 22
Certifications
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 23
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 24
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 25
Customer Photos
3600 KG Wet Belt Rare Earth Permanent High Intensity Magnetic Separator Machine for Different Models 26

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
