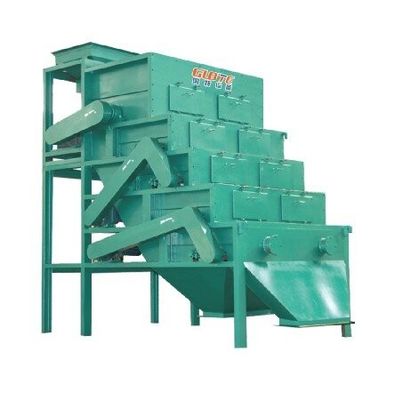

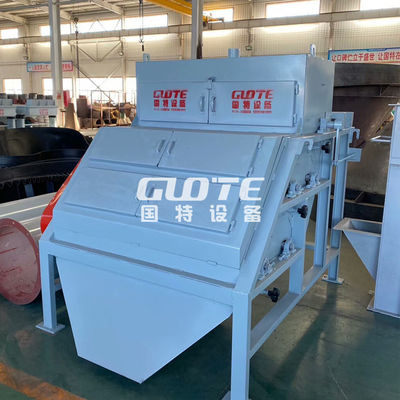

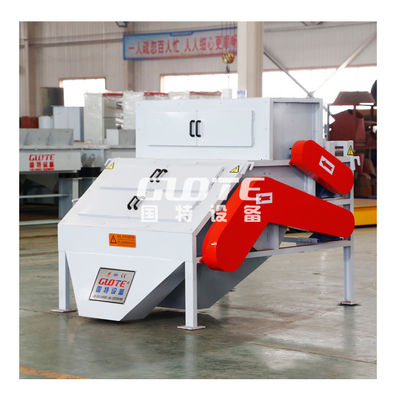

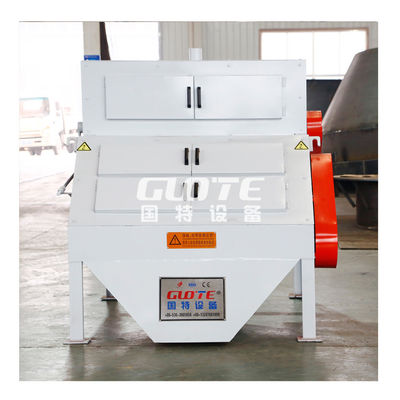

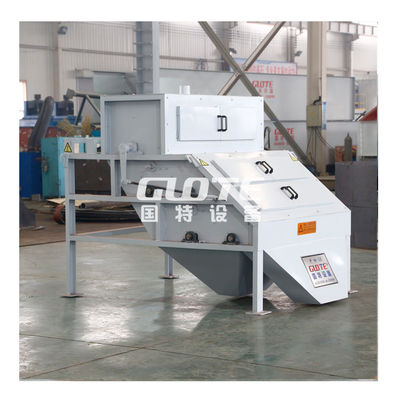

1000mm Roller Length Motor-driven Belt-type Double Roller Permanent Magnetic Separator

Large Image : 1000mm Roller Length Motor-driven Belt-type Double Roller Permanent Magnetic Separator

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,000.00/sets >=1 sets
Packaging Details:	standard sea worthy packing for drum type wet magnetic separator for for iron ore
Supply Ability:	50 Set/Sets per Month magnetic separator

Contact Now

1000mm Roller Length Motor-driven Belt-type Double Roller Permanent Magnetic Separator

Description

Applicable Industries:	Energy & Mining	Showroom Location:	Turkey, Viet Nam, Philippines, Saudi Arabia, Indonesia, India, South Korea, Bangladesh, Kazakhstan, Ukraine, Uzbekistan, Australia
Condition:	New	Type:	Magnetic Separator
Production Capacity:	2-15T/H	Voltage:	220V/380V
Dimension(LWH):	Diffrent Model	Weight:	800 KG
Warranty:	1 Year	Marketing Type:	Hot Product 2019
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	High Magnetic Strength	Material Size:	83-5000um
Belt Thickness:	0.1-2mm	Magnetic Field Intensity Of Dum:	4000-10000Gs
Magnetic Field Intensity Of Roller:	15000-20000Gs	Roller Length:	1000mm
Application:	Coal Preparation Plant/mine	Name:	Roller Magnetic Separator Mineral Separator Magnetic Separator
Port:	Qingdao

Product Description

Introduction

Input size:≤0-5 mm
Capacity:0.5-10 TPH
Magnetic strength: 15000 GS
Usage :remove iron impurity for sand
It is used for iron removal from particles and coarse powder materials, It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral,And It's apply to purification of chemical, food, medicine and purification, hematite, feldspar and manganese.

Specification

Model	Capacity(t/h)	Magnetic field strength of roller(Gs)	Magnetic field strength of drum(Gs)	Belt thickness(mm)	Material size(μm)	Drum driving power(kw)
GCT/F-3	0.4-0.6	15000-20000	4000-10000	0.1-2	83-5000	0.75*2
GCT/F-5	0.8-0.1	15000-20000	4000-10000	0.1-2	83-5000	0.75*2
GCT/F-8	1.2-2	15000-20000	4000-10000	0.1-2	83-5000	1.1*2
GCT/F-10	2-3.5	15000-20000	4000-10000	0.1-2	83-5000	1.5*2
GCT/F-12	4-7	15000-20000	4000-10000	0.1-2	83-5000	2.2*2
GCT/F-15	7-10	15000-20000	4000-10000	0.1-2	83-5000	3*2
