KG 1400mm Drum Length Dry Type Magnetic Separator for Iron Separation and Removing

Name: KG 1400mm Drum Length Dry Type Magnetic Separator for Iron Separation and Removing
Brand: Weifang Guote Mining Equipment Co., Ltd.
Availability: InStock

All Products

Magnetic Separator machine
(908)

Quartz Silica Sand Processing Line
(432)

Quartz Powder Processing Line
(291)

Mining Vibrating Screen
(210)

Mining Process Equipment
(92)

Quartz Purifying Equipment
(332)

Iron Remover Separator
(191)

Square Swing Screen
(50)

Automatic Metal Detector
(9)

Industrial Dryer Machine
(61)

Top Sale Product
(87)

Certification

I'm Online Chat Now

KG 1400mm Drum Length Dry Type Magnetic Separator for Iron Separation and Removing

Large Image : KG 1400mm Drum Length Dry Type Magnetic Separator for Iron Separation and Removing

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE
Certification:	ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$6,000.00/sets >=1 sets
Packaging Details:	standard export container,20GP,40GP ,40HQ,FR container,in bulk, the spare parts in wooden case or according to the customer's requirements
Supply Ability:	100 Set/Sets per Month

Contact Now

KG 1400mm Drum Length Dry Type Magnetic Separator for Iron Separation and Removing

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	Diffrent Model	Weight:	KG
Warranty:	12 Months	Marketing Type:	Hot Product 2019
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Easy To Operate	Magnetic Strength:	1000-10000Gs
Capacity:	≤5-15t	Color:	Customers' Request
Keywords:	Magnetic Separator	Drum Length(mm):	1200 1400 1600
Partilce Size(mm):	≤ 10 , ≤12 , ≤15	Drum Speed (r/min):	17-82
Drum QTY:	1-3

drum magnetic separator

Product Show

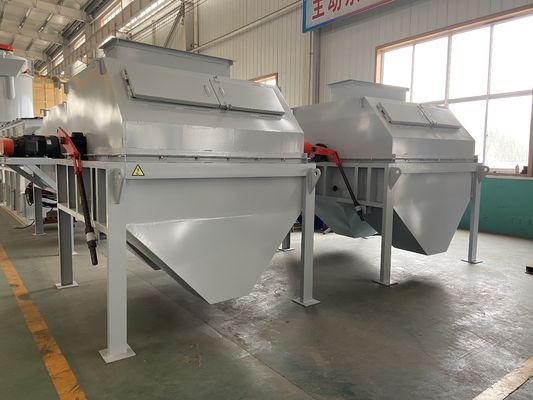

KG 1400mm Drum Length Dry Type Magnetic Separator for Iron Separation and Removing 0

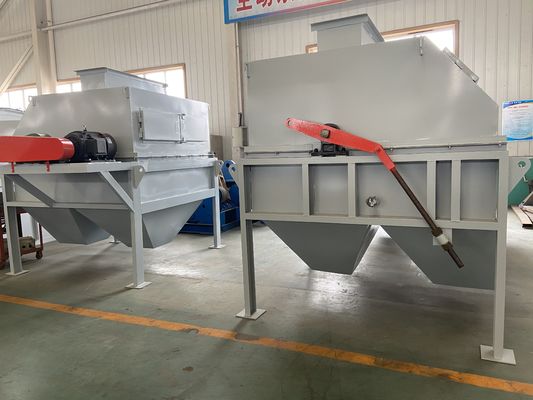

KG 1400mm Drum Length Dry Type Magnetic Separator for Iron Separation and Removing 1

Product Description

Summary:

Clean off iron pollutants from powder and fine granular materials .Used for purification of non-metal ores ,such as refractory matter ,glass , cream , abrasives processing .It can also used for removing impurities from non-magnetic metal ores and dry method selection of hematited and limonite.

Technical features:

1. Equipped with vibrating feeder feed uniformity

2. Rare earth permanent magnetic material, as magnetic source, has strong magnetic penetration and strong suction.

3. It can be made into two cylinder or multi barrel type.

4. The whole machine is free from maintenance and safe to use

Technical parameter:

Model	Overall Dimension (mm)	Drum Length (mm)	Drum Diameter (mm)	Magnetic Field Intensity (GS)	Drum	Quantity Drum Speed (r/min)	Capacity(t/h)	Feed Particle Siza(mm)	Power(kw)
GCXII-120-1	200611001450	1200	600	1000-10000	1	17-82	≤5	≤10	3
GCXII-120-II	227417002250	1200	600		2		≤6	≤10	5.5
GCXII-120-III	288017002950	1200	600		3		≤8	≤10	3*3
GCXII-140-I	220611001450	1400	608		1		≤6	≤10	4
GCXII-140-II	227420002250	1400	608		2		≤8	≤10	7.5
GCXII-140-II	280020002850	1400	800		3		≤10	≤10	4*3
GCXII-160-I	196012741650	1600	800		1		≤10	≤10	5.5
GCXII-160-II	267421602850	1600	800		2		≤12	≤ 12	5.5*2
GCXII-160-II	312021603700	1600			3		≤15	≤ 15	5.5*3

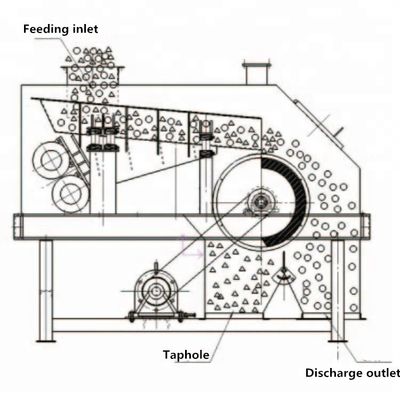

Schematic

KG 1400mm Drum Length Dry Type Magnetic Separator for Iron Separation and Removing 2

Related Peoducts Links


permanent magnetic type
CTB(N/S) wet magnetic separator	GCT/F dry magnetic separator	GCX dry magnetic separator

electronmagnetic type
GDF dry electromagnetic separator	GTLH wet electromagnetic separator	GTDZ electromagnetic separator for slurry

Company Information

KG 1400mm Drum Length Dry Type Magnetic Separator for Iron Separation and Removing 5

Certification

KG 1400mm Drum Length Dry Type Magnetic Separator for Iron Separation and Removing 6

Our customers :

KG 1400mm Drum Length Dry Type Magnetic Separator for Iron Separation and Removing 7

Our Services

1.EPC service for single equipment and whole production line.

2.OEM service for your personal equipment or production line

3.Testing before delivery and Pretesting in working site until get qualified products

4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.

Packaging & Shipping

KG 1400mm Drum Length Dry Type Magnetic Separator for Iron Separation and Removing 8

FAQ

Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
