220V/380V High Magnetic Field Glass Industry Separator Machine for Wet Separation

Large Image : 220V/380V High Magnetic Field Glass Industry Separator Machine for Wet Separation

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Guote
Certification:	ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$10,000.00/sets >=1 sets
Packaging Details:	standard export container,20GP,40GP ,40HQ,FR container,in bulk, <br> the spare parts in wooden case or according to the customer's requirements.
Supply Ability:	100 Set/Sets per Month

Contact Now

220V/380V High Magnetic Field Glass Industry Separator Machine for Wet Separation

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	Diffrent Model	Weight:	1800 KG
Warranty:	1 Year	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Automatic	Capacity:	8t/h
Magnetic Field Intensity:	≥15000GS	Concentration Of The Slurry:	10-30%
Belt Speed:	2-8r/min	Keywords:	Magnetic Separator
Feeding Size:	0-1.2mm	Price:	Negotiable
Color:	Customers' Requirements	Feature:	High Magnetic Field
Port:	Qingdao/Shanghai/Dalian

GTGB Series 4,500-15,000GS Wet Type Permanent Magnetic Seprator

Products Description

GTGB series permanent high filed strength magnetic flat type magnetic separator is our latest research and development of high gradient and high intensity magnetic separator equipment.

It is mainly used to 1.2 mm fine non-metallic minerals, such as quartz, feldspar and nepheline. Kaolin iron impurities removing purification, can also be used in red iron ore (hematite, limonite and siderite, etc.), manganese ore, ilmenite, wolframite variety of weak magnetic ore wet separation and black and white tungsten separation, black tungsten and tin separation.

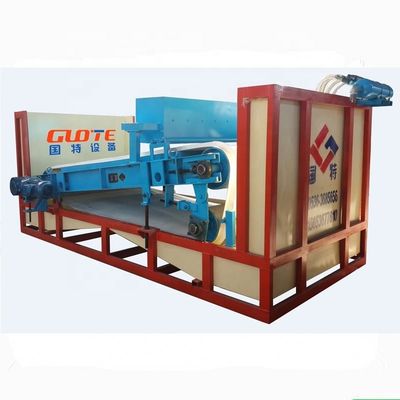

Details Images

Product Paramenters

Model	Capacity (t/h)	Magnetic field Intensity	Concentration of the Slurry	Belt Speed	Power (kw）	Machine Size
GTGB815	8-10	15,000GS	10-30%	2-8 (r/min)	1.1	2500X1500X1400
GTGB1020	10-15						1.5	3000X1600X1400
GTGB1520	15-20						2.2	3000X2000X1500
GTGB2025	20-25						3	4200X2600X1700
GTGB2030	25-30						4	4600X2600X1700
GTGB2030	30-35						4	4900X2600X1900

Working principle

The slurry enters the distribution device of the magnetic separator through the feeding pipe, and after fully dispersed, it is evenly sprinkled on the belt of iron removing which on the upper part of the magnetic plate.
Under the action of gravity, the slurry flows downward along the inclined direction of the magnetic plate.

The ferromagnetic material contained in the slurry is firmly adsorbed on the iron-removing belt under the strong magnetic field provided by the magnetic plate,the motor drive the

belt to move upward along the direction of the magnetic plate, and at the same time, the adsorbed ferromagnetic material is brought into the iron removing area. Washed by the flushing water and get into the tailing hopper for concentrated collection and the non-magnetic slurry continues to flow down the magnetic plate, and the inflow into the concentrate bucket for collection.

Manufacturing Technique

Outstanding Advantages

1.Selection of high performance NdFeB magnetic materials , the magnetic circuit design is unique, the magnetic filed intensity , the surface magnetic field strength can reach15000Gs.
2.Compared to the other permanent separation of the magnetic field , Large scavenging area of magnetic field , the magnetic separation effect is better.

3.Variable frequency adjustable belt speed , Power saving and energy conservation

4. Automatic cleaning of adsorbed magnetic materials

5.Compared to other high gradient magnetic separator energy saving,power saving

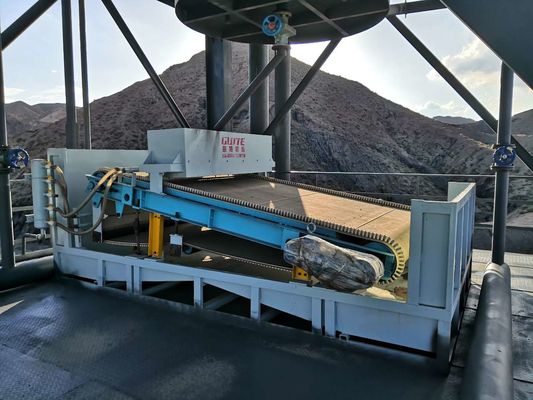

Site Picture 1

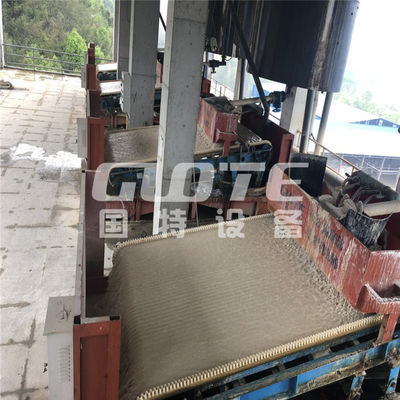

Site Picture 2

Company Profile

Basic Company Introduction

Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.

About GUOTE

Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...

Certifications

Customer Photos

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
