Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity

Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity

Large Image :  Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity

Product Details:
Place of Origin: Shandong, China
Brand Name: Guote
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $10,000.00/sets >=1 sets
Contact Now

Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity

Description
Applicable Industries: Energy & Mining Showroom Location: Viet Nam, Indonesia, India, Russia, South Korea, Sri Lanka, Uzbekistan, Malaysia, Australia
Condition: New Type: Magnetic Separator
Production Capacity: 98% Voltage: 220V/380V
Dimension(L*W*H): Diffrent Model Weight: 5000 KG
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Key Selling Points: Automatic Capacity: 8-35t/h
Magnetic Field Intensity: ≥13000GS Concentration Of The Slurry: 10-30%
Keywords: Wet Magnetic Separator Feeding Size: 0-1.2mm
Price: Negotiable Color: Customers' Requirements
Feature: High Magnetic Field Processed Materials: Separating Iron From Non Metallic Mining
Advantage: 98% Separate Rate Separated

Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 0
Products Description
Feed size:0-1.2mm
Magnetic strength:0.8T 1.0T 1.2T 1.4T wet type electro magnetic
Usage:removing weak magnetic iron impurity

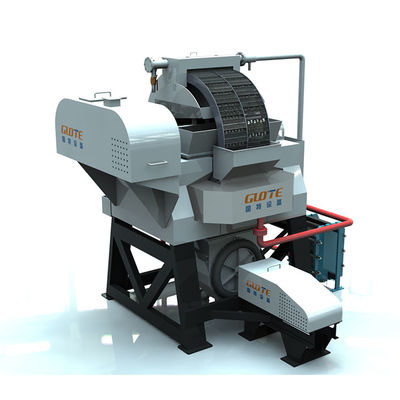

The high intensity magnetic separator with most advanced technology and best performance in the worldwide. Whole equipment have swivel vertical rotation and back flush mineral ores functions, following with high frequency vibration motor. It has higher enrichment ratio and can adapt different particle size and concentration and grade of mineral ores. And also have advantages of reliable working and easy operation and maintenance. The vertical ring high gradient magnetic separator is composed of frame, yoke, rotating ring, ore hopper, flushing device, concentrate hopper, medium box, tailings tank, oil cooling excitation coil, oil cooling system and control system. The core magnetic circuit is designed by computer simulation, with high magnetic field intensity and large gradient.
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 1
Details Images
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 2
Product Paramenters
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 3

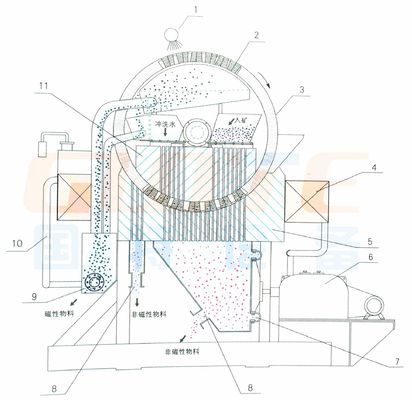

Working principle
High Intensity Wet Vertical Ring Magnetic Separator ,Magnetic yoke fixed on the machine frame, which generate the strong magnetic field together with exciting coil. Rotary ring is in the clockwise drived by the rotary device, and goes through the magnetic field slowly. There are many separation boxes on the outer circle of the rotary ring , there is the multi-layer magnetic medium which is made of magnetic material inside the separation box. When the rotary ring goes through the magnetic filed, it would be
magnetized, and formed the high gradient magnetic field. In the mineral processing, the mine slurry goes into the rotary ring along with the gap of the magnetic pole, and the magnetic particle would be attracted in the magnetic medium surface, revolving to the non-magnetic area. The magnetic particle would be put into the fine tank, and the nonmagnetic material goes into the tailing tank along the lower magnetic yoke gap.
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 4
Outstanding Advantages
1. Vertical rotating ring, high separation efficiency;
2. Unique magnetic medium, high induction magnetic field;
3. Good heat dissipation effect, more stable magnetic field;
4. Wide range of application, complete machine reliable maintenance free;
5. The coil has a special structure and can operate in severe conditions;
6. Special cooling method, coil is not easy to block, long service life.
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 5
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 6
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 7
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 8
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 9
Recommend Products
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 10

GTLH vertical ring Magnetic Separato

1.0T 1.3T 1.5T Wet Process Electromagnetic Type
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 11

GTGB Plate Magnetic Separator

4,500GS-15,000GS Wet Process Permanent
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 12

CTB/N/S Drum Magnetic Separator

1,000-6,500GS Wet Process Permanent Magnetic Type
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 13

GDF Magnetic Separator

10,000-20,000GS Dry Powder Electromagnetic Type
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 14

GCT/F Roller Magnetic Separator

15,000GS Dry Permanent Multi Rollers Type
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 15

GTZ Drum Magnetic Pulley

1,000-7,000GS Dry Permanent Drum Magnetic Pulley

Packing and shipping
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 16
Company Profile
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 17
Basic Company Introduction
Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 18
About GUOTE
Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 19
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 20
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 21
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 22
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 23
Certifications
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 24
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 25
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 26
Customer Photos
Float Glass Sand Processing Machine High Gradient Wet Magnetic Separator with 8-35t/h Capacity 27

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
