Wet Slurry Magnetic Separator for Iron Ore Concentration Depend on Different Models

Large Image : Wet Slurry Magnetic Separator for Iron Ore Concentration Depend on Different Models

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Guote

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3,000.00/sets >=1 sets
Packaging Details:	standard export container,20GP,40GP ,40HQ,FR container,in bulk,the spare parts in wooden case or according to the customer's requirements.
Supply Ability:	100 Set/Sets per Month

Contact Now

Wet Slurry Magnetic Separator for Iron Ore Concentration Depend on Different Models

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	98%	Voltage:	380V
Dimension(LWH):	Different Models	Weight:	2600 KG
Warranty:	12 Months	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Easy To Operate	Cooling Type:	Oil And Water Compound
Color:	Customers' Request	Installation:	Engineer Guide
Capacity:	Depend On Different Models	Material:	Stainless Steel
Keywords 1:	Magnetic Separator	Keywords 2:	Magnetic Separator Price
Keywords 3:	High Gradient Magnetic Separator	Keywords 4:	Magnetic Separator For Slurry
Port:	Qingdao

Wet Magnetic Separator for Magnetite High i=Intensity Electromagnetic Separator

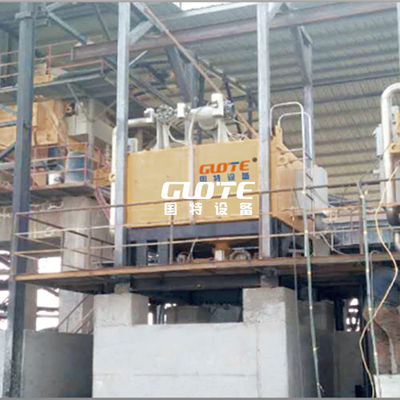

Wet Slurry Magnetic Separator for Iron Ore Concentration Depend on Different Models 0

Product Description

Product Introduction:

GTDZ series electromagnetic sizing agent magnetic separator is the latest magnetic separation products developed by our company ,

The background magnetic field reaches 1.5t ,High magnetic field gradient .

It can be equipped with a variety of special magnetic stainless steel media to meet the needs of different minerals in different regions

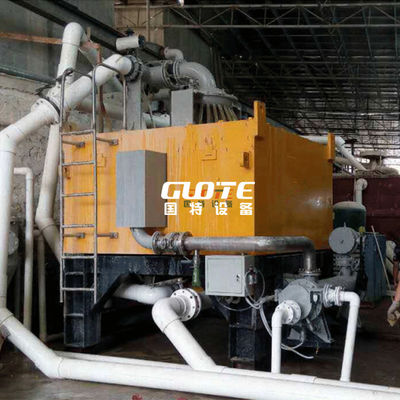

Wet Slurry Magnetic Separator for Iron Ore Concentration Depend on Different Models 1

Product Show

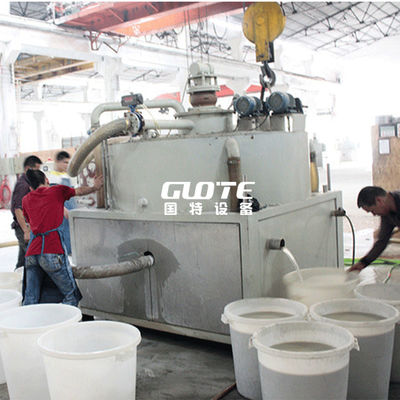

Wet Slurry Magnetic Separator for Iron Ore Concentration Depend on Different Models 2

Application scope:

used for iron removal and purification of nonmagnetic ores such as quartz ,feldspar ,kaolin and other minerals . It can also be used for waste water treatment and clean of contaminated chemical materials in iron and steel power plants.

Outstanding advantages:

Unique electromagnetic coil design and efficient cooling method

---The magnetic coil of the magnetic separator of electromagnetic paste is cooled with fully sealed cooling oil, and the external high-efficiency heat exchanger is used for heat exchange of oil and water to realize compound cooling of oil and water, with fast cooling speed, low temperature rise and stable magnetic field

The separation medium produces high magnetic field gradient, and the removal of iron is better

---The medium is made of special magnetic-conducting stainless steel, which can generate extremely high gradient magnetic field under the excitation of background magnetic field. It has a strong adsorption effect on low content of weak magnetic impurities and a better effect on iron removal

Fully automatic operation, low operating and maintenance cost

---The working process of this equipment is controlled by automatic program, which can realize automatic operation without human being on duty and reduce operation and maintenance cost

High pressure water positive and reverse washing, iron removal clean, no residue

--- When removing iron from the equipment, use high pressure water to clean the medium and remove iron cleanly. The cleaning time can be set according to different mineral stages to improve the treatment efficiency

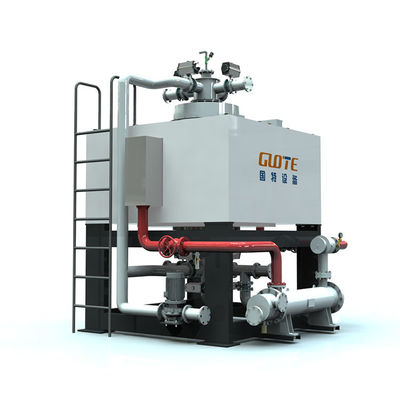

Wet Slurry Magnetic Separator for Iron Ore Concentration Depend on Different Models 3

Technical parameter:

Model	GTDZ-520F	GTDZ-780F	GTDZ-1000F	GTDZ-1250F	GTDZ-1500F	GTDZ-2000F
Rated background field strength(T)	1.0					0.8
Input Voltage (ACV)	380
Exciting Current(DCA)	≤220	≤300	≤360	≤420	≤510	≤590
Rated exciting power (KW)	≤80	≤120	≤130	≤160	≤210	≤230
Cooling Mode	Oil and weter compound
Magnetic Cavity (mm)	520	780	1000	1250	1500	2000
Inlet pipe size (mm)	100	150	200	200	250	300
Water pump motor power (KW)	5.5	11	18.5	18.5	30	45
Capacity (m³/h)	15-25	30-40	55-70	7090	90-110	11-140
Slurry Density	10-25%
Overall Dimension (mm)	270030403200	370031003800	355032003720	410040004200	430042004350	545051506

Related Peoducts Links


permanent magnetic type
CTB(N/S) wet magnetic separator	GCT/F dry magnetic separator	GCX dry magnetic separator

electronmagnetic type
GDF dry electromagnetic separator	GTLH wet electromagnetic separator	GTDZ electromagnetic separator for slurry

Company Information

Wet Slurry Magnetic Separator for Iron Ore Concentration Depend on Different Models 7

Certification

Wet Slurry Magnetic Separator for Iron Ore Concentration Depend on Different Models 8

Our customers :

Wet Slurry Magnetic Separator for Iron Ore Concentration Depend on Different Models 9

Our Services

1.EPC service for single equipment and whole production line.

2.OEM service for your personal equipment or production line

3.Testing before delivery and Pretesting in working site until get qualified products

4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.

Packaging & Shipping

Wet Slurry Magnetic Separator for Iron Ore Concentration Depend on Different Models 10

FAQ

Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
