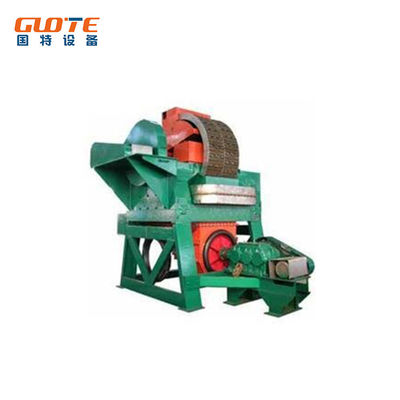

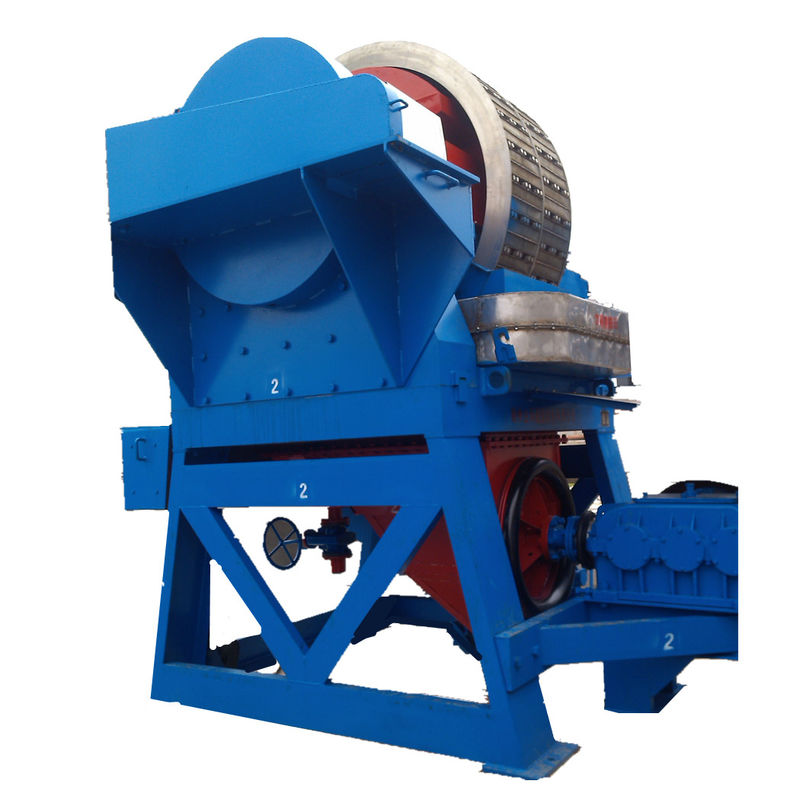

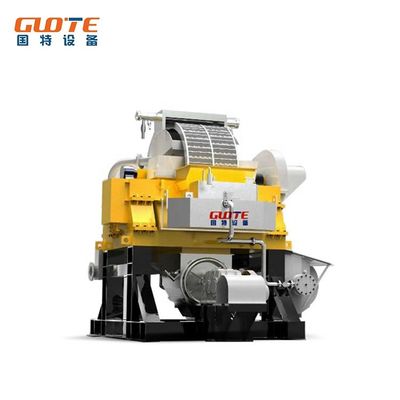

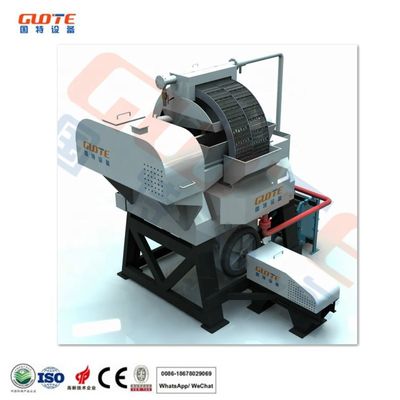

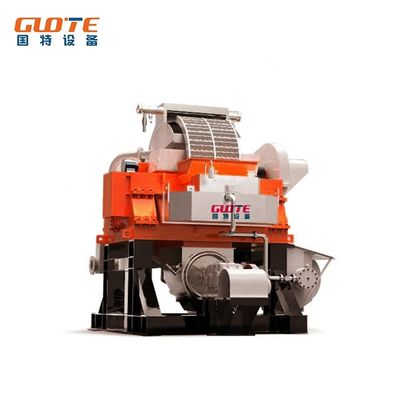

High Density Electromagnetic Separator for Hematite Iron Concentration in Thailand

Double Vertical Ring High Gradient Magnetic Separator for Hematite  GUOTE High Gradient Magnetic Separator with ce ISO90012008

GTLH Series high gradient magnetic separator is a new product developed independently by GUOTE. It combines the characteristics of international advanced high intensity magnetic separators, which is so far the high intensity magnetic separator of best performance and most advanced technology. This product utilizes vertical ring rotation, pulsating beneficiation and high frequency vibrator, and it has no magnetic medium jam problem in flat ring high intensity magnetic separator and flat ring high gradient magnetic separator.

It has the advantages of large beneficiation ratio, high security and convenient operation etc. This product realizes both high beneficiation ratio and high recycle ratio in separating weak magnetic minerals.

• Product introduction of  High density electromagnetic separator

High Gradient Magnetic Separator is a new mine selection machine which has developed in the recent 20 years, mainly uses in thin grade ferromagnetism mineral dry and wet separates and  recycle weak magnetic metal ores.

• Application field of  High density electromagnetic separator

Ferrous metal: recycling feint hematite, hematite, limonite, siderite, ilmenite, manganese,etc.

Nonferrous metal: separating wolframite, garnet, etc.

Rare metal: recycling tantalum niobite, iron lepidolite, monazite, xenotime, etc.

Nonmetal: decontaminating quartz, feldspar, kaolin and refractory material.

•  Specifications of cement vibrating feeder

• Features

 l Application field

1. Updating Ferrous Metals: Martite, Hematite, Siderite, Chromite, Ilmenite, Manganese, Etc.

2. Separating Non-Ferrous Metals: Wolframite and Quartz, Pyrrhotite and Cassiterite, Wolframite and Cassiterite, Limonite Purifying, Scheelite, Wolframite and Garnet, Etc.

3. Recovering Rare Earth: Tantalum and Niobium, Lepidomelane, Monazite, Etc.

4. Brightening Non Metals: Quartz, Feldspar And Kaolin for Ceramics, Sillimanite, Cassiterite, Andalusite, Kyanite for Refractory, and Separating Impurities From Hornblende, Mica, Tourmaline, Garnet, Etc,

• l Technical features

1. Vertical Ring Rotation & Pulsating Beneficiation

2. High Frequency Vibration Mechanism

3. Wide Range of Feed Particle Size

4. Multi-Gradient Matrixes & Liquid Level Control System.

These technologies improve the grade of magnetic concentrate and recovery.

5. Frequency Conversion Step-less Adjustment for Rotary Speed & Vibrating Frequency.

6. No Stepper Phenomenon of Rotary Rings

OEM Service

We could make whole production line or single equipment following different clients requirements.

For whole process as below:

• Firstly Please offer detailed technical drawing in CAD including whole detailed requirements.
• Secondly we will offer different technical proposals follwing offered drawings with requirements for clients.
• Thridly make decision for which proposal and confirm it.
• At last manufacture whole equipments following techncial proposal and holding test in warehouse.
• Finally finished equipment/prodcution line and offered service as turn-key-project.
