Energy Mining GCT/F Series Dry Drum Magnetic Separator with Permanent Magnet

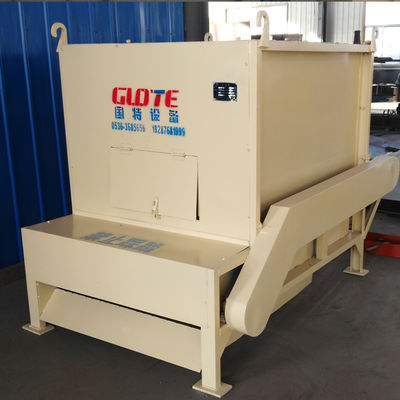

Large Image : Energy Mining GCT/F Series Dry Drum Magnetic Separator with Permanent Magnet

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE
Certification:	ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,889.00/sets
Packaging Details:	Specially made wooden boxes and containers (sea transport) for roll type laboratory magnetic separator with permanent magnet

Contact Now

Energy Mining GCT/F Series Dry Drum Magnetic Separator with Permanent Magnet

Description

Applicable Industries:	Energy & Mining	Showroom Location:	Viet Nam, Indonesia
Condition:	New	Type:	Magnetic Separator
Production Capacity:	7-10 T/H	Voltage:	220V/380V
Dimension(LWH):	Diffrent Model	Weight:	1800 KG
Warranty:	1 Year	Marketing Type:	Other
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor, PLC
Key Selling Points:	Easy To Operate	After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training
Product Name:	Roll Type Laboratory Magnetic Separator With Permanent Magnet	Application:	Non-metallic Minerals
Installation:	Technical Guidance	Color:	Customers' Requirements
Material:	Stainless Steel	Item:	Beneficiation Plant
Advantage:	Easy Operation	Price:	Competetive
Quality:	Strongest Magentic Roller	Local Service Location:	Viet Nam, Indonesia

GCT/F series dry drum magnetic separator with permanent magnet

Product Description

Application

1 It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral

2 It's apply to purification of chemical, food, medicine and purification, hematite,limonite and manganese.

Technical characteristics

Cylinder and roller reasonablely combined, iron removal more efficient.
Cylinder with new type permanent magnet ,magnetic field more stronger, suction more stronger
Drum magnetic system can be turning block type, efficient more higher
Surface magnet field up to 8000GS
Cylinder and roller's speed is variable frequency regulation
Magnetic roller adopted polymer composite magnetic system,magnetic field up to 15000GS, higher gradient
Belt made with special materials, high wear resistance
Controllable feeding system ensure the uniformity of material when it go through magnetic field
Selfclean weakly magnetic oxide,longlife work
Dust discharged only by dust collector, so it can meet the environmental protection requirements

Thenical parameter

ITEM	Magnetic roller length(mm)	Magnetic field intensity(GS)	cylinder magnetic field intensity(GS)	Belt thickness(mm)	Material size(µm)	Capacity(t/h)	Power(KW)
MODEL							Cylinder drive	roller drive
GCT/F3-I	300	1500-2000	4000-10000	0.1-2	83-5000	0.4-0.6	0.75*2	0.55*1
GCT/F3-II								0.55*2
GCT/F5-I	500	1500-2000	4000-10000	0.1-2	83-5000	0.8-1	0.75*2	0.55*1
GCT/F5-II								0.55*2
GCT/F8-I	800	1500-2000	4000-10000	0.1-2	83-5000	1.2-2	1.1*2	0.55*1
GCT/F8-II								0.55*2
GCT/F10-I	1000	1500-2000	4000-10000	0.1-2	83-5000	2-3.5	1.5*2	0.55*1
GCT/F10-II								0.55*2
GCT/F12-I	1200	1500-2000	4000-10000	0.1-2	83-5000	4-7	2.2*2	0.55*1
GCT/F12-II								0.55*2
GCT/F15-I	1500	1500-2000	4000-10000	0.1-2	83-5000	7-10	3*2	0.55*1
GCT/F15-II								0.55*2

Energy Mining GCT/F Series Dry Drum Magnetic Separator with Permanent Magnet 0
