1.Introduction of CTB wet magnetic separator

  Series CTB wet magnetic separator is usally used for sorting the fine-grained magnetic minerals, or removing magnetic minerals from non-magnetic minerals. Its composite magnetic system consists of high performance rare earth permanent magnet (main magnetic source) and ferrite permanent magnet. With a deep magnetic field, the machine can make a continuous row of ore feed and discharge. It also has enough working clearance and high processing capacities
Applicable scope:
The permanent magnetic drum separator are used in mines and coal separating factories to separate the wet fine magnetic substances or remove the magnetic substances from the non-magnetic materials

2.Working principal of CTB wet magnetic separator

 When the ore pulp goes into the separation area of the wet drum magnetic separator, as a result of different magnetic susceptibilities of a variety of minerals, under the magnetic force, the magnetic minerals are absorbed to the surface of drum, and are brought to the discharge area for ore concentrate along with the rotation of drum, then after leaving the magnetic system, the magnetic materials are flushed to ore concentrate box by the flushing water; Weak magnetic and non-magnetic minerals can not be absorbed and will flow to the discharge pipe for tailings.

4.Advantage of wet magnetic separator

♦ High magnetic field intensity
♦ Magnetic field depth, uneasy demagnetization
♦ High efficiency
♦ Strong adaptability of production fluctuation

5.Technical parameter of the machine

 6.Technical Characteristics:
The separators have three types of tanks :half countercurrent tank(CTB),direct flow tank(CTS) and countercurrent tank(CTN),which are used according to different granular and technological requirements.
The features of our products are :optimized computer design ,rational magnetic circuit, strong magnetic coercive force and high-remanence permanent magnetic which can keep the magnet performance in a long period and safeguard the long -term interest of the customer, the whole structure is reliable.

Models and parameters:

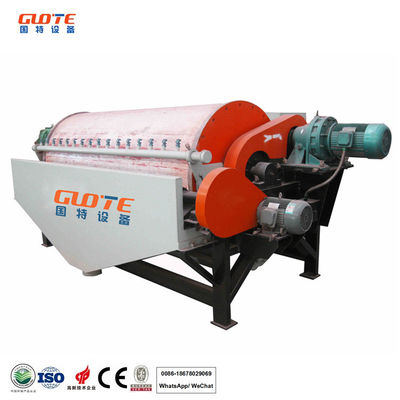

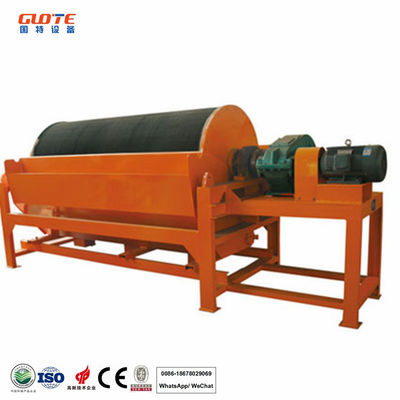

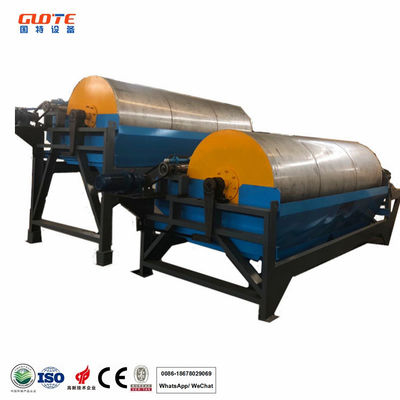

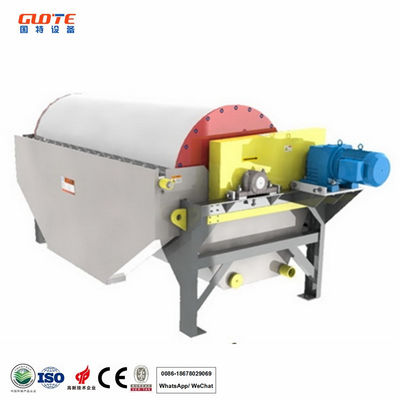

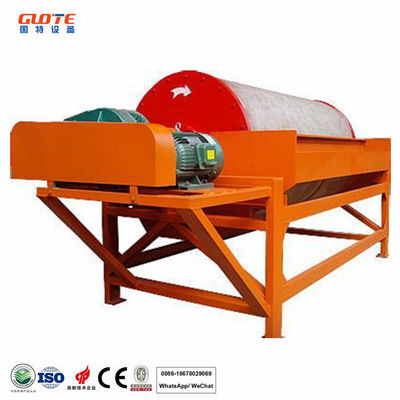

 7.pictures about wet magnetic separator

1 Packaging: Specially made wooden boxes and containers
2 Shipping: 5-45 days after receiving initial payment

Weifang GUOTE Mine Equipment co.ltd. is professional and modern enterprise including research and development, engineering design, production and installation, debugging services , automatic control equipment, non-metallic mineral production line test, design, consultation and the complete line of delivery.The scope of services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles,food, cement ,etc.Our product sell well in more than thirty provinces, autonomous region.
Our product have electromagnetic, permanent magnetic separator, dry wet magnetic separator,electromagnetic vibration feeder, quartz sand making machine, air classifier, dust collector, water separator, washing machine, flotation machine,metal detector, screw conveyor, timing quantitative feeding,weigher and centralized control system, etc.
Facing the new opportunities and challenges, the company in line with the spirit of "honesty-oriented, mutual benefit, cooperation and innovation" , dedicated to providing “dependable,simple and efficient” products and services to customers, make enterprises become domestic advanced mining equipment manufacturer.
Our company is willing to work together with people from all walks of life for a better future.

We could make whole production line or single equipment following different clients requirements.
For whole process as below:
Firstly, Please offer detailed technical drawing in CAD or requirements. Secondly, we will offer different technical proposals follwing offered drawings or requirements for clients. Thridly make decision for which proposal.At last manufacture whole equirements following techncial proposal and holding test in warehouse. Finally finished equipment/prodcution line offered as turn-key project.
