Weifang Guote Mining Equipment Co. Presents Automatic Magnetic Eddy Current Separator

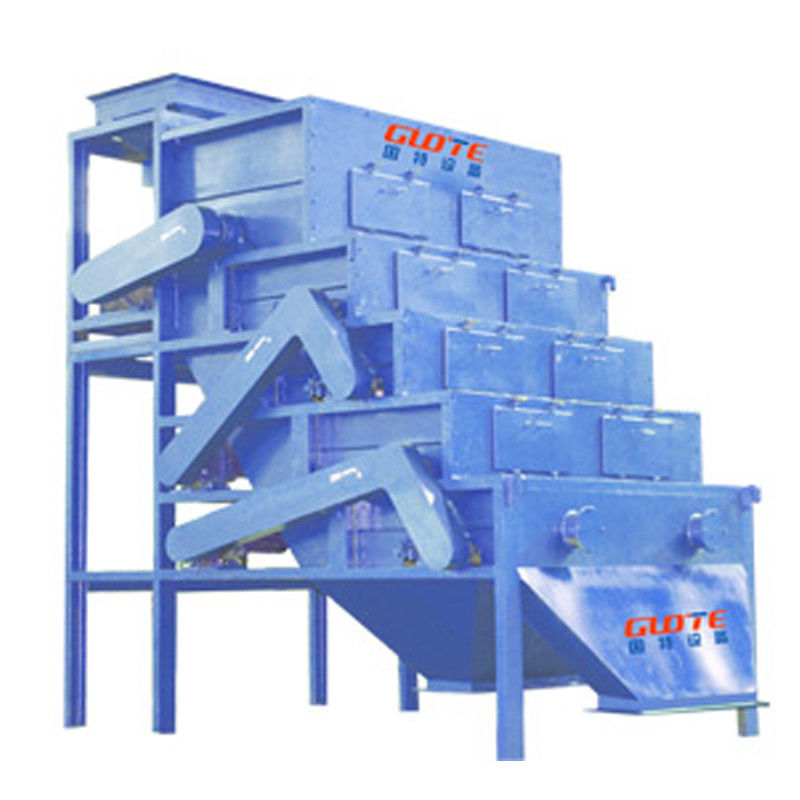

Large Image : Weifang Guote Mining Equipment Co. Presents Automatic Magnetic Eddy Current Separator

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE
Certification:	ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$6,000.00/sets >=1 sets
Packaging Details:	Specially made wooden boxes and containers (sea transport),by 20 feet container/ 40 feet container ,and for large machinery, we use deck transportation or according to the customer's requirements
Supply Ability:	10 Set/Sets per Month

Contact Now

Weifang Guote Mining Equipment Co. Presents Automatic Magnetic Eddy Current Separator

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	0.4-10t/h	Voltage:	220V/380V
Dimension(LWH):	Diffrent Model	Weight:	3000kg-10000kg
Warranty:	12 Months	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor, Engine
Key Selling Points:	High Rigidity	Product Name:	Roller Magnetic Separator
Company Name:	Weifang Guote Mining Equipment Co.,Ltd.	Capacity:	0.4-10t/h
Magetic Field Strength Of Roller:	15000-20000GS	Material Size:	83-5000μm
Belt Thickness:	0.1-0.2mm	Roller Length:	300-1500mm
Installation:	Engineer Guide	Spare Parts Supply:	Anytime
Keywords:	Magnet Separator	Local Service Location:	None
Port:	Qingdao Port

1.Introduction

It is used for iron removal from particles and coarse powder materials, It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral,And It's apply to purification of chemical, food, medicine and purification, hematite, Limonite and manganese.

2.Technical parameter

Model	Capacity(t/h)	Magnetic field strength of roller(Gs)	Magnetic field strength of drum(Gs)	Belt thickness(mm)	Material size(μm)	Drum driving power(kw)
GCT/F-3	0.4-0.6	15000-20000	4000-10000	0.1-2	83-5000	0.75*2
GCT/F-5	0.8-0.1	15000-20000	4000-10000	0.1-2	83-5000	0.75*2
GCT/F-8	1.2-2	15000-20000	4000-10000	0.1-2	83-5000	1.1*2
GCT/F-10	2-3.5	15000-20000	4000-10000	0.1-2	83-5000	1.5*2
GCT/F-12	4-7	15000-20000	4000-10000	0.1-2	83-5000	2.2*2
GCT/F-15	7-10	15000-20000	4000-10000	0.1-2	83-5000	3*2

3.Advantages Weifang Guote Mining Equipment Co. Presents Automatic Magnetic Eddy Current Separator 1

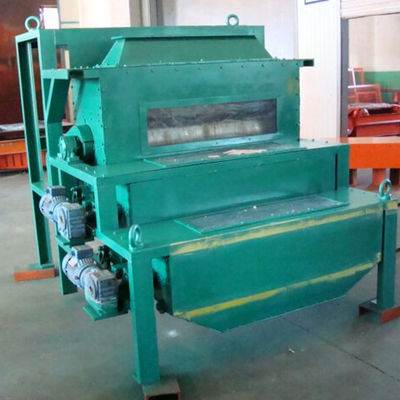

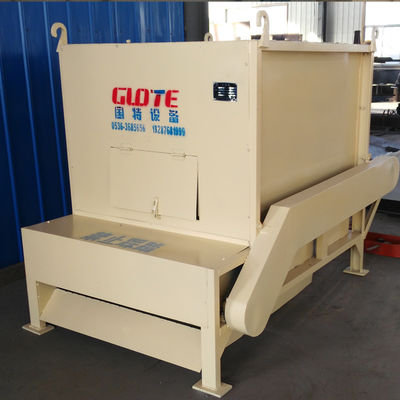

Detailed Images

Company Information

Weifang guote Mine Equipment Co., Ltd. is a research and development, engineering design, production and installation, commissioning services as one of the professional production of mining equipment, automation control equipment and the provision of non-metallic mineral production line test, design, consultation and the whole line delivery of the modern enterprise. The scope of services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles, food, cement and other industries, products are sold in more than thirty provinces, autonomous region.

The company products are: electromagnetic, permanent magnetic separator, dry wet magnetic separator, electromagnetic vibration feeder, quartz sand making machine, air classifier, dust collector, water separator, washing machine, flotation machine, metal detector, screw conveyor, timing quantitative feeding weigher, centralized control system and other products.

Weifang Guote Mining Equipment Co. Presents Automatic Magnetic Eddy Current Separator 6

Certifications

Weifang Guote Mining Equipment Co. Presents Automatic Magnetic Eddy Current Separator 9

Our Services

1. Assist you to selecting equipment.
2. Go through all the questions you have by chatting online.
3. Design production line for you and the equipment you selected will be fitted together by our professional engineer.
4. Send our technician to your work scene to help you to install the equipment and commissioning.
5. Help you to train you stuff.
6. Offering technical consultation.

FAQ

Q: Why we believe in Weifang GuoteMining Equipment Company?
A:
1. More than 10 years experience.
2. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
3. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and
part availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: what will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when
the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should i do if I want to get a best quotation?
A: If you want a suitable type for you ,please let us know your material and capacity.
