Slurry Density 10-40 Wet High Intensity Magnetic Separator for Quartz/Feldspar/Clay

Large Image : Slurry Density 10-40 Wet High Intensity Magnetic Separator for Quartz/Feldspar/Clay

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$10,000.00/sets >=1 sets
Packaging Details:	Wood boxes and containers (sea transport).
Supply Ability:	300 Set/Sets per Month GTLH series Vertical Ring High Gradient Magnetic Separator

Contact Now

Slurry Density 10-40 Wet High Intensity Magnetic Separator for Quartz/Feldspar/Clay

Description

Applicable Industries:	Building Material Shops, Construction Works , Energy & Mining	Showroom Location:	Egypt, United States, Germany, Philippines, Indonesia, Pakistan, Thailand, South Korea, Chile, South Africa
Condition:	New	Type:	Magnetic Separator
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	700020003000 Mm	Weight:	20 KG
Warranty:	1 Year	Marketing Type:	Hot Product 2019
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Long Service Life	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	GTLH Vertical Ring High Gradient Magnetic Separator	Induced Magnetic Field::	2.1/3.6T
Rated Background Field Strength::	1.4/1.8T	Slurry Density:	10~40
Ring Speed:	3 (r/min)	Pulsion Storke:	0-30mm
Application:	Ore	Usage:	Mining Separatoion
Installation:	Technical Guidance	Port:	Qingdao

Magnetic Separator Supplier Self-Cleaning Electromagnetic Separator, Electric Magnetic Iron Remover ilmenite, monazite,

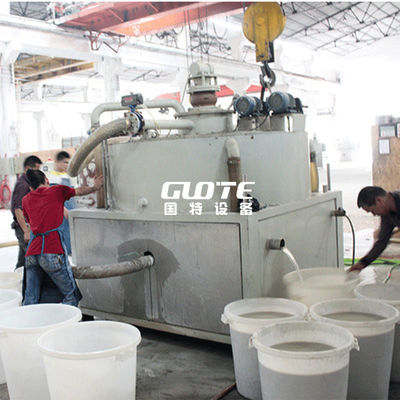

Slurry Density 10-40 Wet High Intensity Magnetic Separator for Quartz/Feldspar/Clay 0

Product Description

Product Introduction:

GTDZ series electromagnetic sizing agent magnetic separator is the latest magnetic separation products developed by our company ,

The background magnetic field reaches 1.5t ,High magnetic field gradient .

It can be equipped with a variety of special magnetic stainless steel media to meet the needs of different minerals in different regions

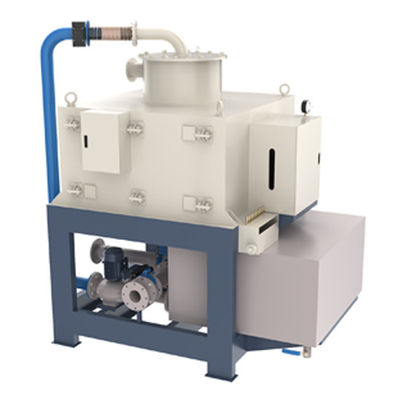

Slurry Density 10-40 Wet High Intensity Magnetic Separator for Quartz/Feldspar/Clay 1

Product Show

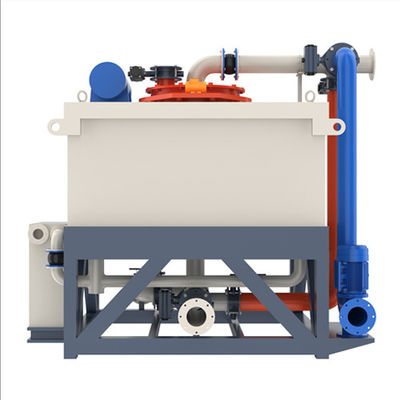

Slurry Density 10-40 Wet High Intensity Magnetic Separator for Quartz/Feldspar/Clay 2

Application scope:

used for iron removal and purification of nonmagnetic ores such as quartz ,feldspar ,kaolin and other minerals . It can also be used for waste water treatment and clean of contaminated chemical materials in iron and steel power plants.

Outstanding advantages:

Unique electromagnetic coil design and efficient cooling method

---The magnetic coil of the magnetic separator of electromagnetic paste is cooled with fully sealed cooling oil, and the external high-efficiency heat exchanger is used for heat exchange of oil and water to realize compound cooling of oil and water, with fast cooling speed, low temperature rise and stable magnetic field

The separation medium produces high magnetic field gradient, and the removal of iron is better

---The medium is made of special magnetic-conducting stainless steel, which can generate extremely high gradient magnetic field under the excitation of background magnetic field. It has a strong adsorption effect on low content of weak magnetic impurities and a better effect on iron removal

Fully automatic operation, low operating and maintenance cost

---The working process of this equipment is controlled by automatic program, which can realize automatic operation without human being on duty and reduce operation and maintenance cost

High pressure water positive and reverse washing, iron removal clean, no residue

--- When removing iron from the equipment, use high pressure water to clean the medium and remove iron cleanly. The cleaning time can be set according to different mineral stages to improve the treatment efficiency

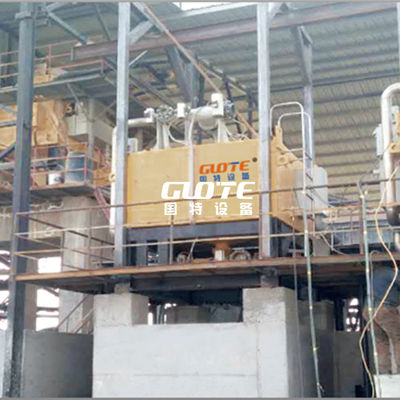

Slurry Density 10-40 Wet High Intensity Magnetic Separator for Quartz/Feldspar/Clay 3

Technical parameter:

Model	GTDZ-520F	GTDZ-780F	GTDZ-1000F	GTDZ-1250F	GTDZ-1500F	GTDZ-2000F
Rated background field strength(T)	1.0					0.8
Input Voltage (ACV)	380
Exciting Current(DCA)	≤220	≤300	≤360	≤420	≤510	≤590
Rated exciting power (KW)	≤80	≤120	≤130	≤160	≤210	≤230
Cooling Mode	Oil and weter compound
Magnetic Cavity (mm)	520	780	1000	1250	1500	2000
Inlet pipe size (mm)	100	150	200	200	250	300
Water pump motor power (KW)	5.5	11	18.5	18.5	30	45
Capacity (m³/h)	15-25	30-40	55-70	7090	90-110	11-140
Slurry Density	10-25%
Overall Dimension (mm)	270030403200	370031003800	355032003720	410040004200	430042004350	545051506

Related Peoducts Links


permanent magnetic type
CTB(N/S) wet magnetic separator	GCT/F dry magnetic separator	GCX dry magnetic separator

electronmagnetic type
GDF dry electromagnetic separator	GTLH wet electromagnetic separator	GTDZ electromagnetic separator for slurry

Company Information

Slurry Density 10-40 Wet High Intensity Magnetic Separator for Quartz/Feldspar/Clay 7

Certification

Slurry Density 10-40 Wet High Intensity Magnetic Separator for Quartz/Feldspar/Clay 8

Our customers :

Slurry Density 10-40 Wet High Intensity Magnetic Separator for Quartz/Feldspar/Clay 9

Our Services

1.EPC service for single equipment and whole production line.

2.OEM service for your personal equipment or production line

3.Testing before delivery and Pretesting in working site until get qualified products

4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.

Packaging & Shipping

Slurry Density 10-40 Wet High Intensity Magnetic Separator for Quartz/Feldspar/Clay 10

FAQ

Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
