Separate Titanium Ore from Black Ilmenite Sand with High Intensity Magnetic Separator

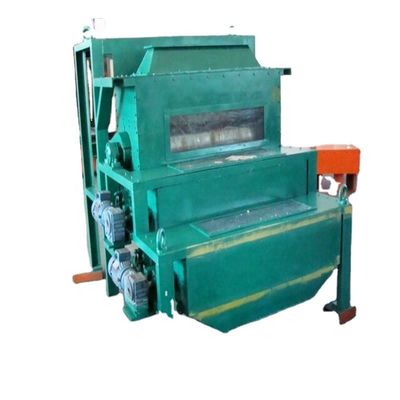

Large Image : Separate Titanium Ore from Black Ilmenite Sand with High Intensity Magnetic Separator

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,889.00/sets
Packaging Details:	Specially made wooden boxes and containers (sea transport) for roll type laboratory magnetic separator with permanent magnet

Contact Now

Separate Titanium Ore from Black Ilmenite Sand with High Intensity Magnetic Separator

Description

Applicable Industries:	Energy & Mining	Showroom Location:	Viet Nam, Indonesia
Condition:	New	Type:	Magnetic Separator
Production Capacity:	7-10 T/H	Voltage:	220V/380V
Dimension(LWH):	Diffrent Model	Weight:	2300 KG
Warranty:	1 Year	Marketing Type:	Other
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor, PLC
Key Selling Points:	Easy To Operate	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	Roll Type Laboratory Magnetic Separator With Permanent Magnet	Application:	Non-metallic Minerals
Installation:	Technical Guidance	Color:	Customers' Requirements
Material:	Stainless Steel	Item:	Beneficiation Plant
Advantage:	Easy Operation	Price:	Competetive
Quality:	Strongest Magentic Roller

High Intensity Dry Permanent Magnetic Roll Separat

Series CFL-J Roller Permanent magnetic Separator

Product Description

Introduction

Input size:≤0-1.5 mm
Capacity:0.5-10 TPH
Magnetic strength: 15000 GS
Usage :remove iron impurity for sand
It is used for iron removal from particles and coarse powder materials, It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral,And It's apply to purification of chemical, food, medicine and purification, hematite, feldspar and manganese.

Specification

Model	Capacity(t/h)	Magnetic field strength of roller(Gs)	Magnetic field strength of drum(Gs)	Belt thickness(mm)	Material size(μm)	Drum driving power(kw)
GCT/F-3	0.4-0.6	15000-20000	4000-10000	0.1-2	83-5000	0.75*2
GCT/F-5	0.8-0.1	15000-20000	4000-10000	0.1-2	83-5000	0.75*2
GCT/F-8	1.2-2	15000-20000	4000-10000	0.1-2	83-5000	1.1*2
GCT/F-10	2-3.5	15000-20000	4000-10000	0.1-2	83-5000	1.5*2
GCT/F-12	4-7	15000-20000	4000-10000	0.1-2	83-5000	2.2*2
GCT/F-15	7-10	15000-20000	4000-10000	0.1-2	83-5000	3*2

Product Features:

1, Cylinder and roller reasonablely combined, iron removal more efficient. 2, Cylinder with new type permanent magnet ,magnetic field more stronger, suction more stronger 3, Drum magnetic system can be turning block type, efficient more higher 4, Surface magnet field up to 8000GS 5, Cylinder and roller's speed is variable frequency regulation 6, Magnetic roller adopted polymer composite magnetic system,magnetic field up to 20000GS, higher gradient 7, Belt made with special materials, high wear resistance 8, Controllable feeding system ensure the uniformity of material when it go through magnetic field 9, Self-clean weakly magnetic oxide,long life work 10, Dust discharged only by dust collector, so it can meet the environmental protection requirements

Recommend Products

GTLH vertical ring Magnetic Separato

1.0T 1.3T 1.5T Wet Process Electromagnetic Type

GTGB Plate Magnetic Separator

4,500GS-15,000GS Wet Process Permanent

CTB/N/S Drum Magnetic Separator

1,000-6,500GS Wet Process Permanent Magnetic Type

GDF Magnetic Separator

10,000-20,000GS Dry Powder Electromagnetic Type

GCT/F Roller Magnetic Separator

15,000GS Dry Permanent Multi Rollers Type

GTZ Drum Magnetic Pulley

1,000-7,000GS Dry Permanent Drum Magnetic Pulley

Company Profile

Basic Company Introduction

Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.

About GUOTE

Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...

Certifications

Customer Photos

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
