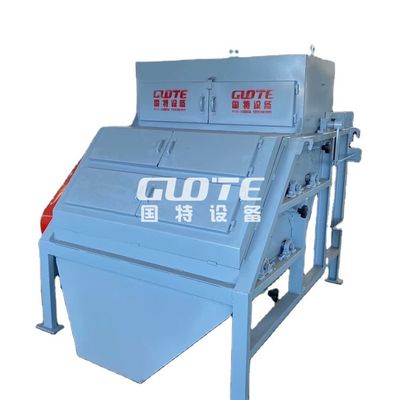

Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing

Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing

Large Image :  Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing

Product Details:
Place of Origin: Shandong, China
Brand Name: GUOTE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $5,889.00/sets
Packaging Details: Specially made wooden boxes and containers (sea transport) for roll type laboratory magnetic separator with permanent magnet
Contact Now

Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing

Description
Applicable Industries: Energy & Mining Showroom Location: Viet Nam, Indonesia
Condition: New Type: Magnetic Separator
Production Capacity: 7-10 T/H Voltage: 220V/380V
Dimension(L*W*H): Diffrent Model Weight: 2300 KG
Warranty: 1 Year Marketing Type: Other
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, PLC
Key Selling Points: Energy Saving After-sales Service Provided: Engineers Available To Service Machinery Overseas
Product Name: Roll Type Laboratory Magnetic Separator With Permanent Magnet Application: Non-metallic Minerals
Installation: Technical Guidance Color: Customers' Requirements
Material: Stainless Steel Item: Beneficiation Plant
Advantage: Easy Operation Price: Competetive
Quality: Strongest Magentic Roller

High Intensity Dry Permanent Magnetic Roll Separat

Series CFL-J Roller Permanent magnetic Separator
Product Description
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 0

Introduction

Input size:≤0-1.5 mm
Capacity:0.5-10 TPH
Magnetic strength: 15000 GS
Usage :remove iron impurity for sand
It is used for iron removal from particles and coarse powder materials, It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral,And It's apply to purification of chemical, food, medicine and purification, hematite, feldspar and manganese.
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 1
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 2
Specification

Model
Capacity(t/h)
Magnetic field strength of roller(Gs)
Magnetic field strength of drum(Gs)
Belt thickness(mm)
Material size(μm)
Drum driving power(kw)
GCT/F-3
0.4-0.6
15000-20000
4000-10000
0.1-2
83-5000
0.75*2
GCT/F-5
0.8-0.1
15000-20000
4000-10000
0.1-2
83-5000
0.75*2
GCT/F-8
1.2-2
15000-20000
4000-10000
0.1-2
83-5000
1.1*2
GCT/F-10
2-3.5
15000-20000
4000-10000
0.1-2
83-5000
1.5*2
GCT/F-12
4-7
15000-20000
4000-10000
0.1-2
83-5000
2.2*2
GCT/F-15
7-10
15000-20000
4000-10000
0.1-2
83-5000
3*2
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 3
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 4
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 5

Product Features:

1, Cylinder and roller reasonablely combined, iron removal more efficient. 2, Cylinder with new type permanent magnet ,magnetic field more stronger, suction more stronger 3, Drum magnetic system can be turning block type, efficient more higher 4, Surface magnet field up to 8000GS 5, Cylinder and roller's speed is variable frequency regulation 6, Magnetic roller adopted polymer composite magnetic system,magnetic field up to 20000GS, higher gradient 7, Belt made with special materials, high wear resistance 8, Controllable feeding system ensure the uniformity of material when it go through magnetic field 9, Self-clean weakly magnetic oxide,long life work 10, Dust discharged only by dust collector, so it can meet the environmental protection requirements
Recommend Products
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 6

GTLH vertical ring Magnetic Separato

1.0T 1.3T 1.5T Wet Process Electromagnetic Type
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 7

GTGB Plate Magnetic Separator

4,500GS-15,000GS Wet Process Permanent
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 8

CTB/N/S Drum Magnetic Separator

1,000-6,500GS Wet Process Permanent Magnetic Type
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 9

GDF Magnetic Separator

10,000-20,000GS Dry Powder Electromagnetic Type
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 10

GCT/F Roller Magnetic Separator

15,000GS Dry Permanent Multi Rollers Type
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 11

GTZ Drum Magnetic Pulley

1,000-7,000GS Dry Permanent Drum Magnetic Pulley
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 12
Company Profile
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 13
Basic Company Introduction
Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 14
About GUOTE
Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 15
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 16
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 17
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 18
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 19
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 20
Certifications
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 21
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 22
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 23
Customer Photos
Motor Core Components Wet Type Magnetic Separator for Non-Metallic Minerals Processing 24

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
Contact Information
Weifang Guote Mining Equipment Co., Ltd.
Contact: Annie Chang (Sales manager)
Mobile :+86 18678029069 whatsapp/wechat)
Add: Dongjing Road East, Industrial Zone,Qingzhou City, Weifang,Shandong Province, P.R.China
E-mail: annieflower.chang@sdguote.com
Alibaba website: http://sdguote.en.alibaba.com/
Webstie: www.guotegroup.com

If you have any questions, pls don't hesitate to contact me. We will reply you ASAP.
