1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite

1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite

Large Image :  1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite

Product Details:
Place of Origin: Shandong, China
Brand Name: GUOTE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $38,800.00/sets 1-4 sets
Packaging Details: Containers or according to customer requirements
Contact Now

1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite

Description
Applicable Industries: Machinery Repair Shops, Construction Works , Energy & Mining Showroom Location: Viet Nam, Russia, Morocco, Argentina, Colombia, Algeria, Kyrgyzstan
Condition: New Type: Sprial Separator
Production Capacity: 98%, 0-100T/H Voltage: 220V/380V
Dimension(L*W*H): 1800*1400*1320MM Weight: 3500 KG
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Engine, Gearbox
Key Selling Points: Automatic Model: GTLH-1500
Application: Nonmetal Feature: Pulp High Frequency Vibration Mechanism
Applicable Materials: Quartz Feldspar

Product Overview


silica sand magnetic separator/neodymium magnet separator/permanent magnet iron separator


FEATURES AT A GLANCE
*The rotary ring vertical rotation and recoil concentrate overcome the problem of magnetic medium blockage of the flat ring strong magnetic separator,magnetic separator

*A pulp high frequency vibration mechanism is set to drive the pulp to produce pulsating fluid force Under the action of pulsating fluid force, the ore particles in the pulp are always in a loose state, which can improve the quality of magnetic concentrate.

*  permanent magnet iron separator, permanent magnet separator,The upper limit of feeding particle size of magnetic separator reaches 2.0mm, which simplifies the on-site classification operation and has wider adaptability.

1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 0
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 1

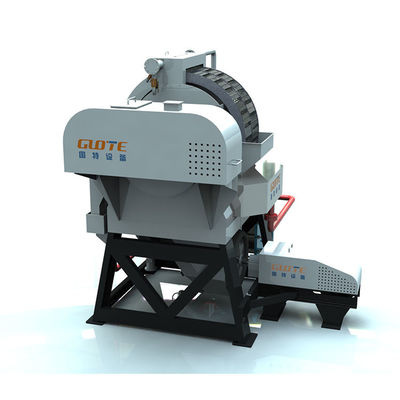

Front elevation
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 2

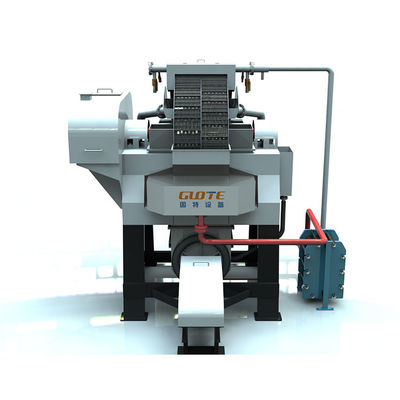

Right elevation
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 3

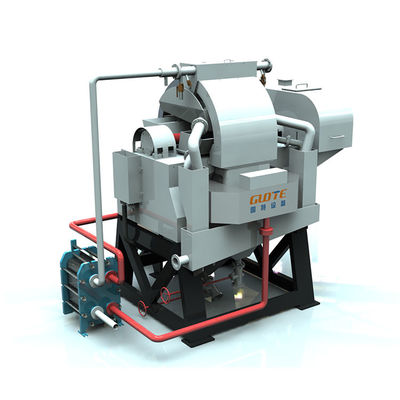

Back elevation
PRODUCT SPECIFICATIONS
Model
GTLH-500
GTLH-750(Z)
GTLH-1000(Z)
GTLH-1500(Z)
Rated background magnetic field(T)
1(0.6)Constant current continuously adjustable
37.5KW
Magnetic field
1.9(1.2)Constant current continuously adjustable
2.8 M3
Energizing power(KW)
≤10(6)
≤13(8)
≤17(10)
≤27(15.5)
Handing capacity(t/h)
0.1-0.3
0.1-0.5
3.5-7.5
20-30
Slurry throughput(m3/h)
0.25-0.5
5-10
12.5-20
50-100
Magnetizing current(A)
63
72
85
105
Slurry density(%)
10-40
6750ml
Feed particle size
-1.0
-1.0
-1.2
-1.2
Ring speed(r/min)
3
Ring diameter(mm)
Φ500
Φ750
Φ1000
Φ1500
Ring motor power(KW)
0.37
0.75
1.1
3
Ripply motor power(KW)
0.37
2.2
3
3
Pulsion stroke(mm)
0-30(Mechanically adjustable)
Pulsion frequency
0-300(Variable frequency conversion)
Excitation voltage(DCV)
0-409(280)(Change with current)
Unloading water pressure(Mpa)
0.1-0.2
0.1-0.2
0.2-0.4
0.2-0.4
Water supply pressure(m3/h)
0.65-1.4
1.4-2.5
8-12
20-30
Host weight(t)
3(1.5)
5(3.5)
9(7)
24(20)
Maximum part weight(t)
0.3(0.25)
0.6(0.5)
2.2(2)
5(5)
Dimensions(mm)
1800*1400*1320
2000*1360*1680
2700*2000*2400
3600*2900*3200
PRODUCT CONFIGURATION
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 4
swivel
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 5
ore hopper, ore concentrate hopper
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 6
rotary drive part
SALES AND SERVICE NETWORK
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 7
Successful Project
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 8
Project in Thailand
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 9
Project in India
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 10
Project in Dubai
SIMILAR PRODUCTS
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 11
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 12
1 High Intensity Vertical Ring High Gradient Magnetic Separator for Tantalum Niobium Lepidomelane Monazite 13
FAQ
Q.Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part
availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
