Energy Mining High Gradient Magnetic Separator for High Productivity Silica Sand

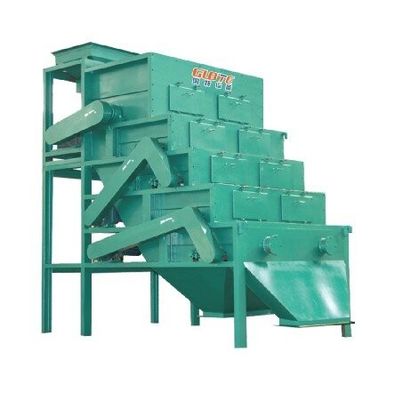

Large Image : Energy Mining High Gradient Magnetic Separator for High Productivity Silica Sand

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Guote

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$15,695.00/sets >=1 sets
Packaging Details:	Containers or according to customer requirements

Contact Now

Energy Mining High Gradient Magnetic Separator for High Productivity Silica Sand

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	99.9	Voltage:	220V/380V
Dimension(LWH):	Diffrent Model	Weight:	2500 KG
Warranty:	1 Year	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	High Productivity	Material:	Stainless Steel
Application:	Non-metallic Minerals	Magnetic Roller Length:	300-1500mm
Magnetic Roller Field Strength:	15000-20000GS	Applicable Materials:	Quartz, Feldspar, Nepheline, Mullite, Limonite, Mangane
Port:	Qingdao

Product Description

GCT/F High Field Strength Roller Magnetic Separator,roller permanent magnetic separator machine

Gold mine equip magnetic separator of Input size:≤0-1.5 mm
industrial magnetic separator has Capacity:0.5-10 TPH
separador magnetico of Magnetic strength: 15000 GS
Usage :magnet separator remove iron impurity for sand
It is used for iron removal from particles and coarse powder materials, It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral,And It's apply to purification of chemical, food, medicine and purification, hematite, feldspar and manganese.

Energy Mining High Gradient Magnetic Separator for High Productivity Silica Sand 0

Energy Mining High Gradient Magnetic Separator for High Productivity Silica Sand 1

Technical Features

1.Cylinder and roller reasonablely combined, iron removal more efficient.

2.Cylinder with new type permanent magnet ,magnetic field more stronger, suction more stronger

3. Drum magnetic system can be turning block type, efficient more higher

4. Surface magnet field up to 8000GS

5.Cylinder and roller's speed is variable frequency regulation

6.Magnetic roller adopted polymer composite magnetic system,magnetic field up to 20000GS, higher gradient 7. Belt made with special materials, high wear resistance

8.Controllable feeding system ensure the uniformity of material when it go through magnetic field

9. Self-clean weakly magnetic oxide,long life work

10.Dust discharged only by dust collector, so it can meet the environmental protection requirements

Technical Data

Model	Capacity (t/h)	Magnetic field strength of roller(Gs)	Magnetic field strength of drum(Gs)	Belt thickness (mm)	Material size(μm)	Drum driving power(kw)
GCT/F-3	0.4-0.6	15000-20000	4000-10000	0.1-2	83-5000	0.75*2
GCT/F-5	0.8-0.1	15000-20000	4000-10000	0.1-2	83-5000	0.75*2
GCT/F-8	1.2-2	15000-20000	4000-10000	0.1-2	83-5000	1.1*2
GCT/F-10	2-3.5	15000-20000	4000-10000	0.1-2	83-5000	1.5*2
GCT/F-12	4-7	15000-20000	4000-10000	0.1-2	83-5000	2.2*2
GCT/F-15	7-10	15000-20000	4000-10000	0.1-2	83-5000	3*2
