350 KG Automatic Rotating Drum for Wet Magnetic Separation of Pyrrhotite Roasted Ore

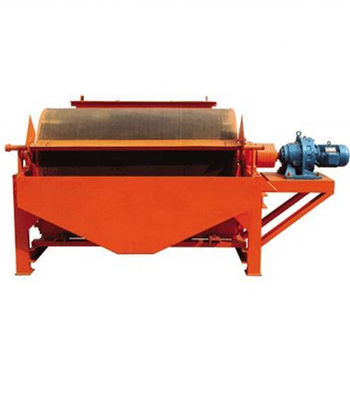

Large Image : 350 KG Automatic Rotating Drum for Wet Magnetic Separation of Pyrrhotite Roasted Ore

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Guote

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$8,000.00/sets >=1 sets
Packaging Details:	Containers or according to customer requirements
Supply Ability:	50 Set/Sets per Month

Contact Now

350 KG Automatic Rotating Drum for Wet Magnetic Separation of Pyrrhotite Roasted Ore

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	400*400mm	Weight:	350 KG
Warranty:	1 Year	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Automatic	Capacity:	5-10t/h 300-5400㎡/h
Drum Speed:	40r/min	Midfield Strong Magnetic Field::	250-400 MT
Material:	Stainless Steel	Power:	1.1-11kw
Magnetic Induction Intensity Of MT:	300-700	Key Selling Points::	High-accuracy
Application::	Coal Preparation Plant/mine	Installation::	Technical Guidance

Product Description

1.CTB(N/S)series permanent-magnetic drum magnetic separator,high intensity wet magnetic separator is used for mines and coal preparation plant to separate the wet fine magnetic substances or remove the magnetic substances from the non-magnetic materials.

2.The permanent magnetic drum separator,easy clean grid magnetic separator are used in mines and coal separating factories to separate the wet fine magnetic substances or remove the magnetic substances from non-magnetic materials.

3.Separador de aireThere are three types of tanks in the same cylinder: half counter current slot (CTB), counter current slot (CTN) and downstream slot (CTS), which are suitable for different granularity and separation process respectively.

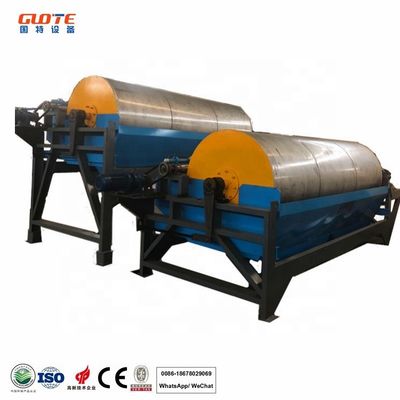

350 KG Automatic Rotating Drum for Wet Magnetic Separation of Pyrrhotite Roasted Ore 0

Advantages

1. Using computer optimization design.

2. The magnetic circuit is reasonable and the permanent magnet with high coercivity and high remanence is strictly selected . ensure that the magnetic does not decrease for a long time .The overall structure is reliable and durable .

3. Many magnetic filed intensity for option according to different mineral ores.

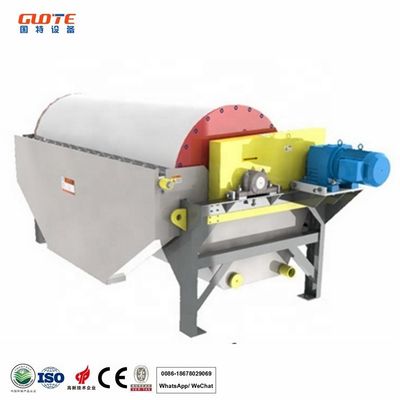

350 KG Automatic Rotating Drum for Wet Magnetic Separation of Pyrrhotite Roasted Ore 1

Working Principe

When the slurry enters the magnetic field area through the feeding hopper, the strong magnetic minerals are absorbed on the surface of the cylinder, while the weak magnetic and non-magnetic minerals are washed out by the water flow, while the magnetic minerals adsorbed on the surface of the cylinder rotate with the cylinder and are taken out of the magnetic field area, and the washing water is used to flush into the concentrate tank to complete the separation

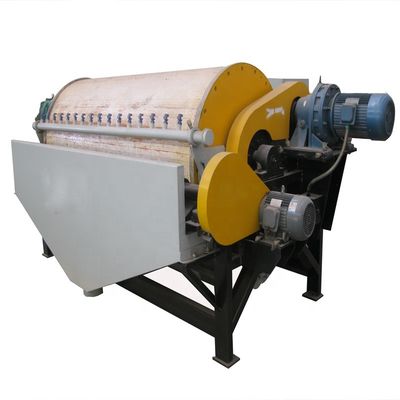

350 KG Automatic Rotating Drum for Wet Magnetic Separation of Pyrrhotite Roasted Ore 2

Technical Data

Model	Cylinder Size diameter*length mm	Magnetic Field Intensity			Capacity		Powder (KW)	Drum Speed (r/min)	Weight
CTB(N/S)-44	400*400	Average Value	Sweep the Constituency	Mid-Field Magnetic Field	t/h	m²/h	1.1	45	350
CTB(N/S)-46	400*600	130	180	250-400	1-2	4-5	1.1	45	600
CTB(N/S)-63	600*300	130	180	250-400	2-3	5-10	1.1	40	600
CTB(N/S)-66	600*600	140	180	250-400	3-5	5-15	1.1	40	750
CTB(N/S)-69	600*900	140	180	250-400	5-10	10-30	1.1	40	910
CTB(N/S)-612	600*1200	140	180	250-400	8-15	20-50	2.2	40	1050
CTB(N/S)-618	600*1800	140	180	250-400	10-20	25-60	2.2	40	1340
CTB(N/S)-712	750*1200	140	180	300-500	15-30	40-80	3	35	1500
CTB(N/S)-718	750*1800	160	200	300-500	15-30	40-80	3	35	2100
CTB(N/S)-918	900*1800	160	200	300-600	20-45	60-100	4	28	2900
CTB(N/S)-924	900*2400	170	200	300-600	25-55	70-120	4	28	3600
CTB(N/S)-1018	1050*1800	170	220	300-700	35-70	80-130	5.5	22	4000
CTB(N/S)-1021	1050*2100	180	220	300-700	40-75	110-160	5.5	22	4500
CTB(N/S)-1024	1050*2400	180	220	300-700	50-100	140-200	5.5	22	5000
CTB(N/S)-1030	1050*3000	180	220	300-700	60-120	170-260	7.5	22	6300
CTB(N/S)-1218	1200*1800	180	220	300-700	70-150	200-320	5.5	19	4900
CTB(N/S)-1224	1200*2400	180	220	300-700	60-110	150-230	7.5	19	5900
CTB(N/S)-1230	1200*3000	180	220	300-700	70-130	80-300	7.5	19	7200
CTB(N/S)-1530	1500*3000	180	220	300-700	80-160	250-400	11	14	8900
CTB(N/S)-1540	1500*4000	180	220	300-700	100-180	300-540	11	14	9900
