15000 20000 Silica Dressing Slurry Sand Wet Belt Magnetic Separator for Sand Separation

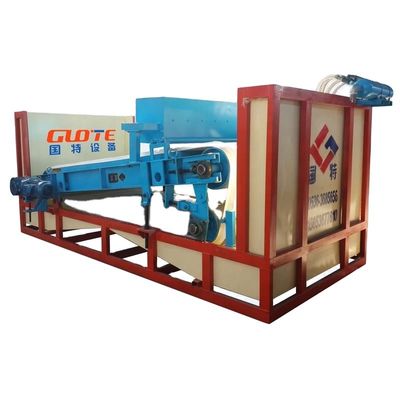

Large Image : 15000 20000 Silica Dressing Slurry Sand Wet Belt Magnetic Separator for Sand Separation

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Guote

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$9,500.00/sets >=1 sets
Packaging Details:	standard export container,20GP,40GP ,40HQ,FR container,in bulk, <br> the spare parts in wooden case or according to the customer's requirements.
Supply Ability:	98 Set/Sets per Month magenetic separator

Contact Now

15000 20000 Silica Dressing Slurry Sand Wet Belt Magnetic Separator for Sand Separation

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	Diffrent Model	Weight:	1000 KG
Warranty:	1 Year	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Sustainable	Capacity:	8-35t/h
Magnetic Field Intensity:	≥15000GS	Concentration Of The Slurry:	10-30%
Belt Speed:	2-8r/min	Keywords:	Magnetic Separator
Feeding Size:	0-1.2mm	Material:	Carbon Steel
Price:	Negotiable	Color:	Customers' Requirements
Feature:	High Magnetic Field	Port:	Qingdao/Shanghai/Dalian

GTGB Series 4,500-15,000GS Wet Type Permanent Magnetic Separator

Products Description

GTGB series permanent high filed strength magnetic flat type magnetic separator is our latest research and development of high gradient and high intensity magnetic separator equipment.

It is mainly used to 1.2 mm fine non-metallic minerals, such as quartz, feldspar and nepheline. Kaolin iron impurities removing purification, can also be used in red iron ore (hematite, limonite and siderite, etc.), manganese ore, ilmenite, wolframite variety of weak magnetic ore wet separation and black and white tungsten separation, black tungsten and tin separation.

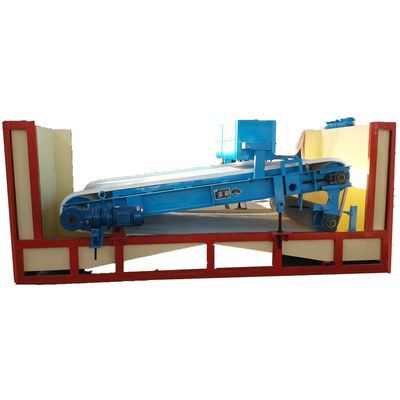

Details Images

Product Paramenters

Model	Capacity (t/h)	Magnetic field Intensity	Concentration of the Slurry	Belt Speed	Power (kw）	Machine Size
GTGB815	8-10	15,000GS	10-30%	2-8 (r/min)	1.1	2500X1500X1400
GTGB1020	10-15						1.5	3000X1600X1400
GTGB1520	15-20						2.2	3000X2000X1500
GTGB2025	20-25						3	4200X2600X1700
GTGB2030	25-30						4	4600X2600X1700
GTGB2030	30-35						4	4900X2600X1900

Working principle

The slurry enters the distribution device of the magnetic separator through the feeding pipe, and after fully dispersed, it is evenly sprinkled on the belt of iron removing which on the upper part of the magnetic plate.
Under the action of gravity, the slurry flows downward along the inclined direction of the magnetic plate. The ferromagnetic material contained in the slurry is firmly adsorbed on the iron-removing belt under the strong magnetic field provided by the magnetic plate,the motor drive the belt to move

upward along the direction of the magnetic plate, and at the same time, the adsorbed ferromagnetic material is brought into the iron removing area. Washed by the flushing water and get into the tailing hopper for concentrated collection and the non-magnetic slurry continues to flow down the magnetic plate, and the inflow into the concentrate bucket for collection.

Manufacturing Technique

Outstanding Advantages

1.Selection of high performance NdFeB magnetic materials , the magnetic circuit design is unique, the magnetic filed intensity , the surface magnetic field strength can reach15000Gs.
2.Compared to the other permanent separation of the magnetic field , Large scavenging area of magnetic field , the magnetic separation effect is better.

3.Variable frequency adjustable belt speed , Power saving and energy conservation

4. Automatic cleaning of adsorbed magnetic materials

5.Compared to other high gradient magnetic separator energy saving,power saving

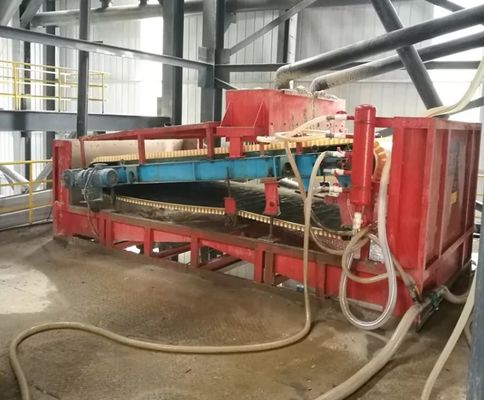

Site Picture 1

Site Picture 2

Recommend Products

GTLH vertical ring Magnetic Separato

1.0T 1.3T 1.5T Wet Process Electromagnetic Type

GTGB Plate Magnetic Separator

4,500GS-15,000GS Wet Process Permanent

CTB/N/S Drum Magnetic Separator

1,000-6,500GS Wet Process Permanent Magnetic Type

GDF Magnetic Separator

10,000-20,000GS Dry Powder Electromagnetic Type

GCT/F Roller Magnetic Separator

15,000GS Dry Permanent Multi Rollers Type

GTZ Drum Magnetic Pulley

1,000-7,000GS Dry Permanent Drum Magnetic Pulley
