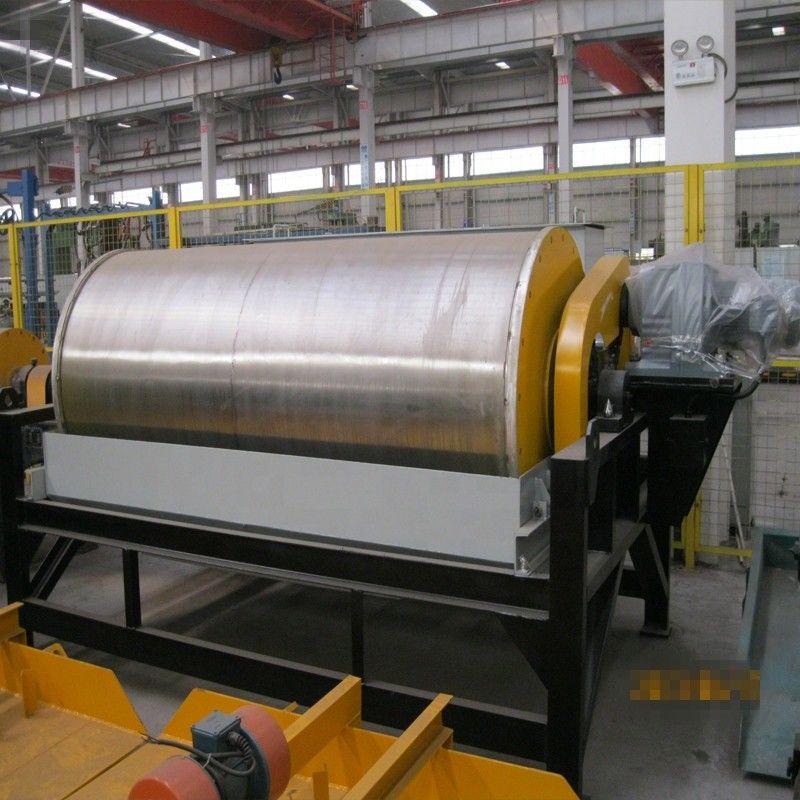

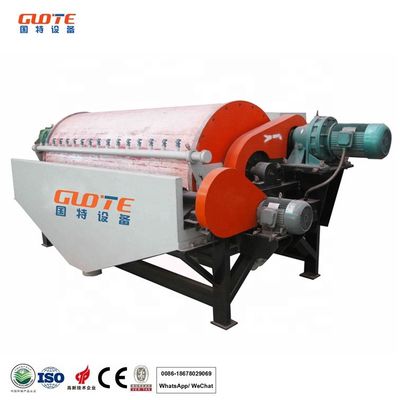

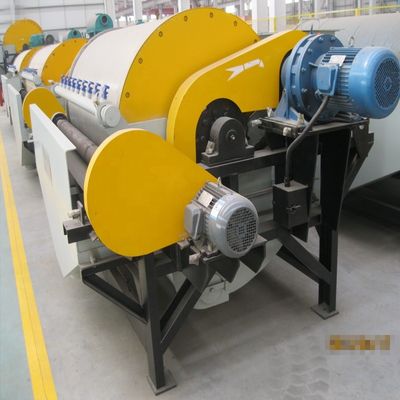

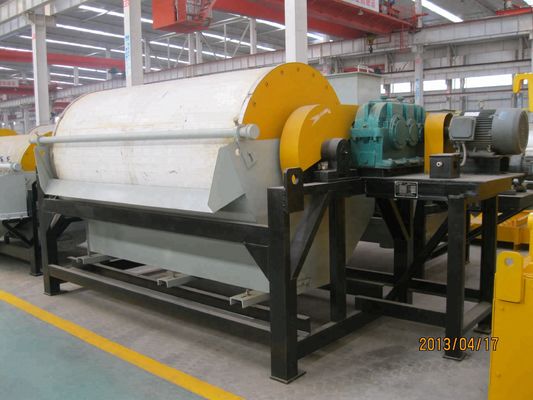

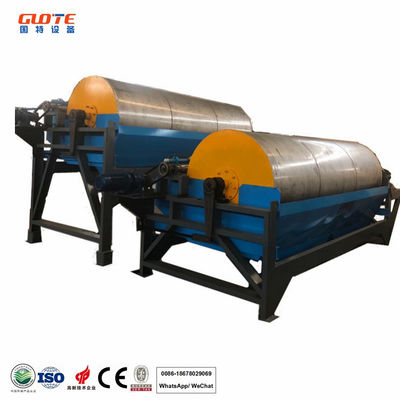

98% Efficiency Mineral Iron Removal Permanent Magnetic Cylinder Separator for Mining

Large Image : 98% Efficiency Mineral Iron Removal Permanent Magnetic Cylinder Separator for Mining

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Guote
Certification:	ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,000.00/sets >=1 sets
Packaging Details:	Special boxes and containers (sea transport).
Supply Ability:	30 Set/Sets per Month Permanent Magnet Drum Magnetic Separator

Contact Now

98% Efficiency Mineral Iron Removal Permanent Magnetic Cylinder Separator for Mining

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	550460660	Weight:	750 KG
Warranty:	12 Months	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Automatic	Product Name:	Permanent Magnet Drum Magnetic Separator
Application:	Mining	Usage:	Mining Separatoion
Installation:	Technical Guidance	Material:	Stainless Steel
Capacity:	1-100 T/h	Drum Speed:	14-45r/min
Magnetic Strength:	1000-7500	Port:	Qingdao

CTB(N/S) Series 800-6,500GS Wet Type Permanent Drum Magnetic Separator

Products Description

CTB:	half counter-current slot :0-0.5mm sand
CTS:	down-stream slot :0-0.6mm sand
CTN :	counter-current slot:0-6mm sand
Magnetic strength:800-6,500GS

Permanent magnet drum magnetic separator is suitable for mines, coal preparation plant and other units. For weak magnetic field wet fine particles of strong magnetic minerals, or in addition to without strong magnetic mineral mixed magnetic minerals.The machine the same cylinder admirable three tub: half counter-current slot (CTB), counter-current slot (CTN) and the down-stream slot (CTS) applicable to different sorting granularity and different sorting process requirements. This product USES the computer optimization design, magnetic circuit is reasonable and strict selection of high coercive force, high residual magnetism of permanent magnet, ensure magnetic over a long time not to reduce, ensure long-term interests of the users, the overall structure is reliable and durable.

Product Paramenters

Working principle

When the slurry enters the magnetic field area through the feeding hopper, the strong magnetic minerals are absorbed on the of the cylinder, while the weak magnetic and non-magnetic minerals are washed out by the water flow, while the magnetic minerals adsorbed on the surface of the cylinder rotate with the cylinder and are taken out of the magnetic field area, and the washing water is used to flush into the concentrate tank to complete the separation.

Manufacturing Technique

Outstanding Advantages

1. Using computer optimization design.

2. Many magnetic filed intensity for option according to different mineral ores.

3.The magnetic circuit is reasonable and the permanent magnet with high coercivity and high remanence is strictly selected . ensure
that the magnetic does not decrease for a long time .The overall structure is reliable and durable .

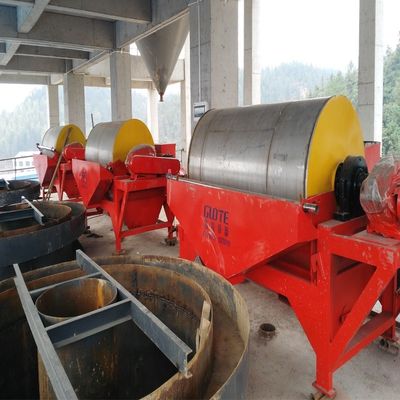

Site Picture 1

Site Picture 2

Recommend Products

GTLH vertical ring Magnetic Separato

1.0T 1.3T 1.5T Wet Process Electromagnetic Type

GTGB Plate Magnetic Separator

4,500GS-15,000GS Wet Process Permanent

CTB/N/S Drum Magnetic Separator

1,000-6,500GS Wet Process Permanent Magnetic Type

GDF Magnetic Separator

10,000-20,000GS Dry Powder Electromagnetic Type

GCT/F Roller Magnetic Separator

15,000GS Dry Permanent Multi Rollers Type

GTZ Drum Magnetic Pulley

1,000-7,000GS Dry Permanent Drum Magnetic Pulley
