Home ProductsMagnetic Separator machine

High Capacity Magnetic Separator for Dry Separation of Different Models

Certification
China Weifang Guote Mining Equipment Co., Ltd. certification
China Weifang Guote Mining Equipment Co., Ltd. certification
I'm Online Chat Now

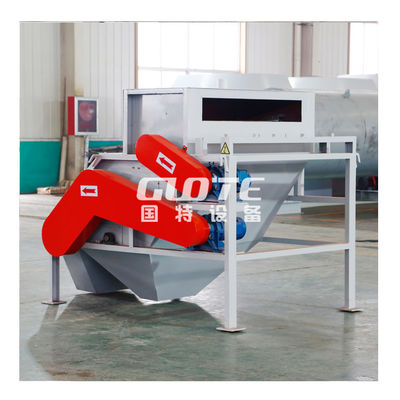

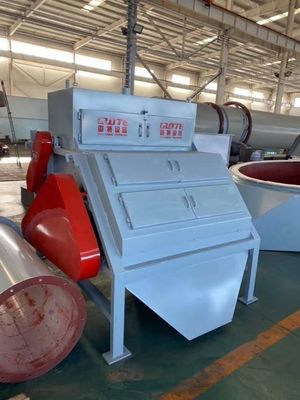

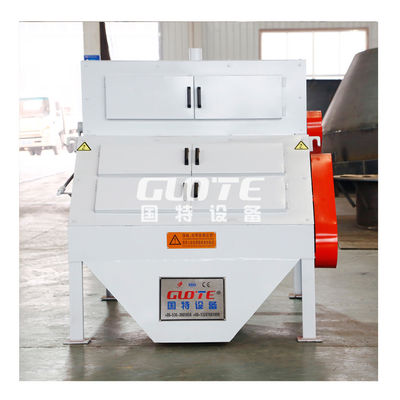

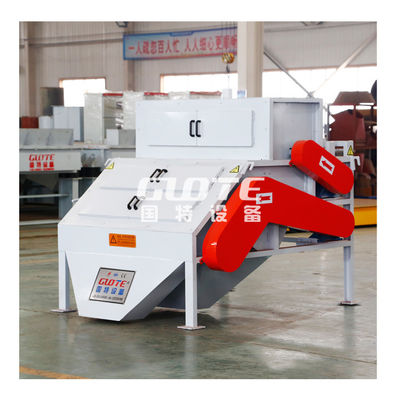

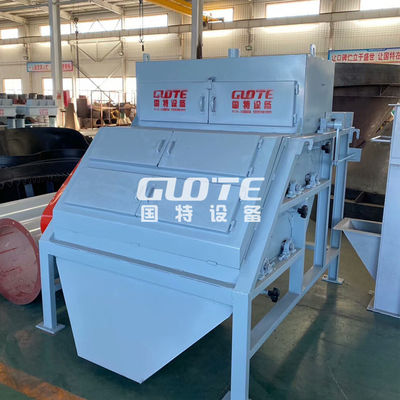

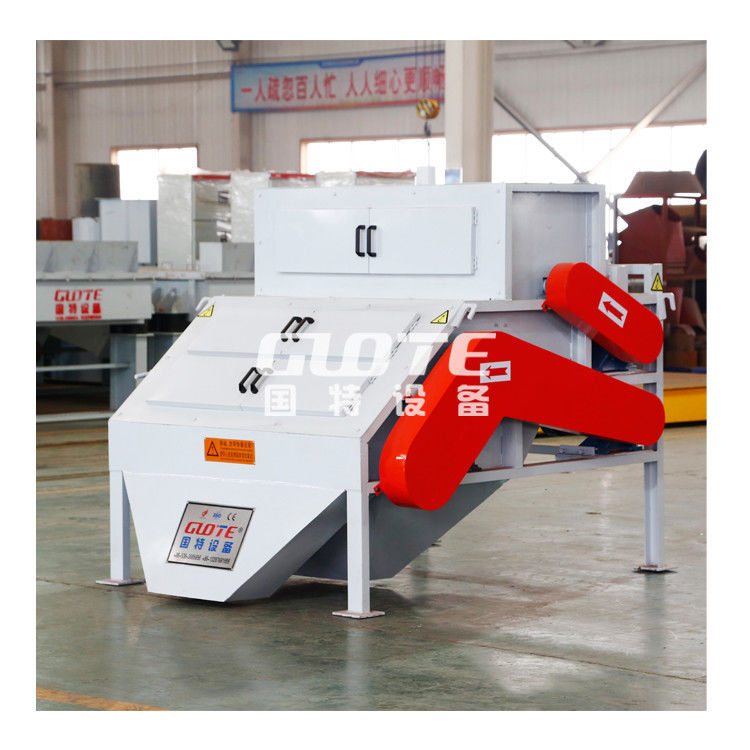

High Capacity Magnetic Separator for Dry Separation of Different Models

High Capacity Magnetic Separator for Dry Separation of Different Models
High Capacity Magnetic Separator for Dry Separation of Different Models High Capacity Magnetic Separator for Dry Separation of Different Models High Capacity Magnetic Separator for Dry Separation of Different Models High Capacity Magnetic Separator for Dry Separation of Different Models High Capacity Magnetic Separator for Dry Separation of Different Models High Capacity Magnetic Separator for Dry Separation of Different Models

Large Image :  High Capacity Magnetic Separator for Dry Separation of Different Models

Product Details:
Place of Origin: Shandong, China
Brand Name: GUOTE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $5,000.00/sets >=1 sets
Packaging Details: standard sea worthy packing for drum type wet magnetic separator for for iron ore
Supply Ability: 50 Set/Sets per Month magnetic separator

High Capacity Magnetic Separator for Dry Separation of Different Models

Description
Applicable Industries: Energy & Mining Showroom Location: Turkey, Viet Nam, Philippines, Saudi Arabia, Indonesia, India, South Korea, Bangladesh, Kazakhstan, Ukraine, Uzbekistan, Australia
Condition: New Type: Magnetic Separator
Production Capacity: 2-15T/H Voltage: 220V/380V
Dimension(L*W*H): Diffrent Model Weight: 800 KG
Warranty: 1 Year Marketing Type: Hot Product 2019
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Key Selling Points: High Magnetic Strength Material Size: 83-5000um
Belt Thickness: 0.1-2mm Magnetic Field Intensity Of Dum: 4000-10000Gs
Magnetic Field Intensity Of Roller: 15000-20000Gs Roller Length: 1000mm
Application: Coal Preparation Plant/mine Name: Roller Magnetic Separator Mineral Separator Magnetic Separator
Port: Qingdao

Product Description
High Capacity Magnetic Separator for Dry Separation of Different Models 0

Introduction

Input size:≤0-5 mm
Capacity:0.5-10 TPH
Magnetic strength: 15000 GS

Usage :remove iron impurity for sand
It is used for iron removal from particles and coarse powder materials, It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral,And It's apply to purification of chemical, food, medicine and purification, hematite, feldspar and manganese.
High Capacity Magnetic Separator for Dry Separation of Different Models 1
High Capacity Magnetic Separator for Dry Separation of Different Models 2
Specification

Model
Capacity(t/h)
Magnetic field strength of roller(Gs)
Magnetic field strength of drum(Gs)
Belt thickness(mm)
Material size(μm)
Drum driving power(kw)
GCT/F-3
0.4-0.6
15000-20000
4000-10000
0.1-2
83-5000
0.75*2
GCT/F-5
0.8-0.1
15000-20000
4000-10000
0.1-2
83-5000
0.75*2
GCT/F-8
1.2-2
15000-20000
4000-10000
0.1-2
83-5000
1.1*2
GCT/F-10
2-3.5
15000-20000
4000-10000
0.1-2
83-5000
1.5*2
GCT/F-12
4-7
15000-20000
4000-10000
0.1-2
83-5000
2.2*2
GCT/F-15
7-10
15000-20000
4000-10000
0.1-2
83-5000
3*2
High Capacity Magnetic Separator for Dry Separation of Different Models 3
High Capacity Magnetic Separator for Dry Separation of Different Models 4
High Capacity Magnetic Separator for Dry Separation of Different Models 5
Recommend Products
High Capacity Magnetic Separator for Dry Separation of Different Models 6

GTLH vertical ring Magnetic Separato

1.0T 1.3T 1.5T Wet Process Electromagnetic Type
High Capacity Magnetic Separator for Dry Separation of Different Models 7

GTGB Plate Magnetic Separator

4,500GS-15,000GS Wet Process Permanent
High Capacity Magnetic Separator for Dry Separation of Different Models 8

CTB/N/S Drum Magnetic Separator

1,000-6,500GS Wet Process Permanent Magnetic Type
High Capacity Magnetic Separator for Dry Separation of Different Models 9

GDF Magnetic Separator

10,000-20,000GS Dry Powder Electromagnetic Type
High Capacity Magnetic Separator for Dry Separation of Different Models 10

GCT/F Roller Magnetic Separator

15,000GS Dry Permanent Multi Rollers Type
High Capacity Magnetic Separator for Dry Separation of Different Models 11

GTZ Drum Magnetic Pulley

1,000-7,000GS Dry Permanent Drum Magnetic Pulley
High Capacity Magnetic Separator for Dry Separation of Different Models 12
Company Profile
High Capacity Magnetic Separator for Dry Separation of Different Models 13
Basic Company Introduction
Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
High Capacity Magnetic Separator for Dry Separation of Different Models 14
About GUOTE
Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as:quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...

High Capacity Magnetic Separator for Dry Separation of Different Models 15
High Capacity Magnetic Separator for Dry Separation of Different Models 16
High Capacity Magnetic Separator for Dry Separation of Different Models 17
High Capacity Magnetic Separator for Dry Separation of Different Models 18
High Capacity Magnetic Separator for Dry Separation of Different Models 19
High Capacity Magnetic Separator for Dry Separation of Different Models 20
Certifications
High Capacity Magnetic Separator for Dry Separation of Different Models 21
High Capacity Magnetic Separator for Dry Separation of Different Models 22
High Capacity Magnetic Separator for Dry Separation of Different Models 23
Customer Photos
High Capacity Magnetic Separator for Dry Separation of Different Models 24

About customers:

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
Contact Information
Weifang Guote Mining Equipment Co., Ltd.
Contact: Yolanda (Sales manager)
Mobile :+86 156 8429 0980 whatsapp/wechat)
Add: Dongjing Road East, Industrial Zone,Qingzhou City, Weifang,Shandong Province, P.R.China
E-mail: yolanda@sdguote.com
Alibaba website: http://sdguote.en.alibaba.com/
Webstie: www.guotegroup.com

If you have any questions, pls don't hesitate to contact me. We will reply you ASAP.
