Permanent Magnet Mini Magnetic Separator for Dry and Wet Materials in Energy Mining

Name: Permanent Magnet Mini Magnetic Separator for Dry and Wet Materials in Energy Mining
Brand: Weifang Guote Mining Equipment Co., Ltd.
Price: 4.00 USD
Availability: InStock

All Products

Magnetic Separator machine
(908)

Quartz Silica Sand Processing Line
(432)

Quartz Powder Processing Line
(291)

Mining Vibrating Screen
(210)

Mining Process Equipment
(92)

Quartz Purifying Equipment
(332)

Iron Remover Separator
(191)

Square Swing Screen
(50)

Automatic Metal Detector
(9)

Industrial Dryer Machine
(61)

Top Sale Product
(87)

Certification

I'm Online Chat Now

Permanent Magnet Mini Magnetic Separator for Dry and Wet Materials in Energy Mining

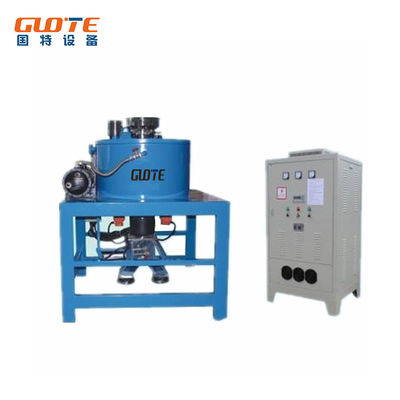

Large Image : Permanent Magnet Mini Magnetic Separator for Dry and Wet Materials in Energy Mining

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE
Certification:	ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$7,981.00/sets >=1 sets
Packaging Details:	standard export container,20GP,40GP ,40HQ,FR container,in bulk, the spare parts in wooden case or according to the customer's requirements
Supply Ability:	960 Set/Sets per Year

Contact Now

Permanent Magnet Mini Magnetic Separator for Dry and Wet Materials in Energy Mining

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	Size	Weight:	2750 KG
Warranty:	1 Year, 3 Months	Marketing Type:	Other
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Long Service Life	Width:	500-2000mm
Color:	Green Or Customers' Requirements	Power:	2.2-5.5kw
After-sales Service Provided:	Video Technical Support	Port:	Qingdao

Product Overview

Lithium-manganate dry powder magnetic separator

Electromagnetic Dry Powder Iron Separator /The Iron-Removing Magnetic Separation Equipment in Gypsum Powder Producti Lines / dry lithium ion battery raw materials electrostatic Carbon magnetic separation working principle electromagnetic separator / Lithium cobalt acid material magnetic separator /Feldspar Lithium Battery Quartz Sand Magnetic Drum Separator / dry wet magnet silica coolant permanent metal zircon electromagnetic separator mini magnetic gance separator

Product Introduction:
GDF series electromagnetic dry powder magnetic separator used for Removal of feeble magnetic oxides in non-metallic mineral
materials such as ceramics, glass, refractories, etc. It can also be used in pharmaceutical, chemical, food and other industries
for material purification.There are two outlet at the bottom of the equipment : iron outlet and materials outlet Each equipment
all equipped an electro control cabinet.

FEATURES AT A GLANCE

01 -

magnetic field intensity

18000-20000GS Linear adjustable Magnetic field

02-

Cellular conductive media

smooth material passing magnetic cavity is in a vibrating state

03-

Fully automatic type PLC intelligent control

The control system adopts a programmable controller as the core control component, which can effectively control each actuator to operate according to the process requirements cycle

04-

Oil circulating water cooling method

Temperature control device Real-time temperature detection and Automatic control function

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Model	Magnetic Field Intensity（GS）	Maximum Processing Capacity(T/H)	Mininum Matrial Size(um)	Filter Net Outer Diameter	Height
1	GDF-150	18000	0.8-1.5	50	150	1000
2	GDF-280	18000	2-4	50	280	1208
3	GDF-350	18000	3-6	50	350	1380
4	GDF-150H	22000	0.8-1.5	50	150	1000
5	GDF-280H	22000	2-4	50	280	1208
6	GDF-350H	22000	3-6	50	350	1380

Application area

1.Lithium anode and cathode materials

2.Photovoltaic raw material

3. Electronic semiconductor aerospace raw materials

4. Glass raw material

5.High Grade Ceramic Building materials

6.Crucible Raw material

7.Abrasives

8.Chemicals

9.Refractory materials

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in India

Project in Russia

Technical features:

1.Wipe off fine materials that are not easy to circulate: under the effect of the vibration motor, the material, which is ≥ 200mm
or with high humidity, can go throng the screen mesh.
2.Processing the material with high temperature: the standard model can processing material with up to 70 centigrade and the
special model can process the material with higher temperature.
3. Easy installation: you can install the equipment in any way, as long as the frame is safe and stable.
4.Cleaning the magnetic filtering net easily: laying a plate at the discharging pole, and at the same time, turn off the power to
erase the magnetism for the cleaning operation.
5. Separating the iron pollution and the material totally: the material definitely has no way to go into the separating chamber.
6.Simple connection : during operation ,the host vibration . The input and output of raw materials can be connected by external
pipes or canvas bags .

Our service

1.EPC service for single equipment and whole production line.
2.OEM service for your personal equipment or production line
3.Testing before delivery and Pretesting in working site until get qualified products
4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.

Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
