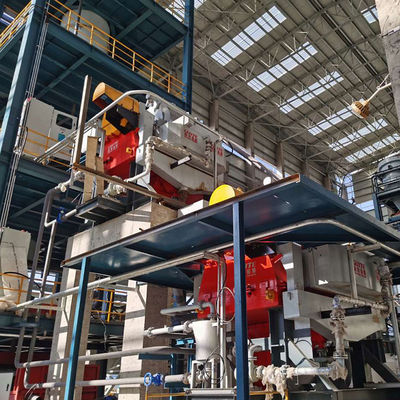

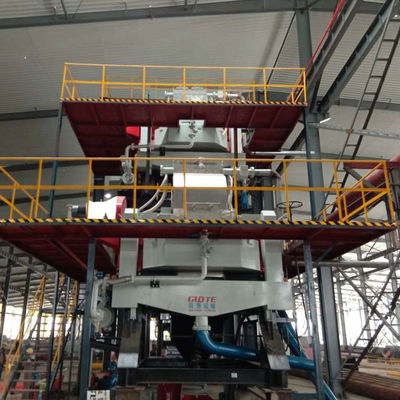

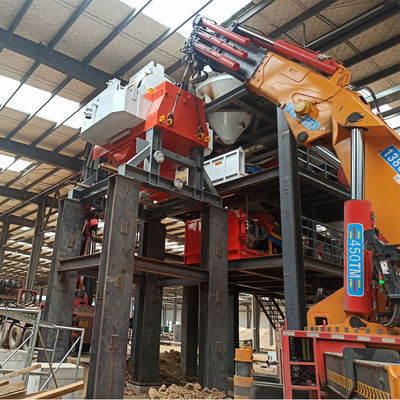

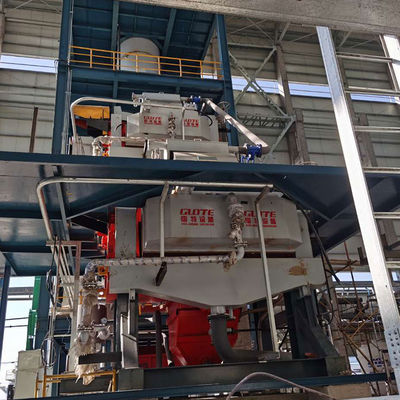

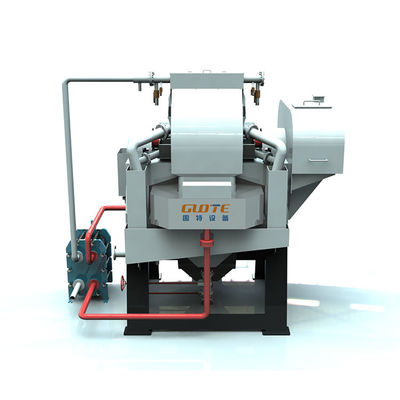

Product Introduction:
The high intensity magnetic separator with most advanced technology and best performance in the worldwide. Whole equipment have swivel vertical rotation and back flush mineral ores functions, following with high frequency vibration motor. It has higher enrichment ratio and can adapt different particle size and concentration and grade of mineral ores. And also have advantages of reliable working and easy operation and maintenance.
Application scope:
It is suitable for the purification of iron and fine grained red ore (hematite limonite siderite, etc.) in non-metallic ore, such as kaolinite
Advantages:
1,Vertical Swivel with High separation efficiency: Vertical Swivel rotation and back flush mineral ores make the flat ring jam problem shooting.
2,Unique magnetic medium with high magnetic intensity: the company patented magnetic medium could offer high gradient magnetic field with max. Magnetic intensity up to 20000Gs.
3,Good cooling effect with stable magnetic field. The excitation coil adapt hollow tube with higher thickness. The water could flow through tube and take away the heat after water circulation.
4,Widely used for different field and no need maintenance.
Technical parameter:
| Model | GTLH-500 | GTLH -750(Z) | GTLH -1000 (Z) | GTLH -1250 (Z) | GTLH -1500 (Z) | GTLH -1750 (Z) | GTLH -2000 (Z) | GTLH -2500 (Z) | GTLH -3000 (Z) |
| Rated background magnetic field(T) | 1(0.6)Constant current continuously adjustable |
| Magnetic field | 1.9(1.2)Constant current continuously adjustable |
| Energizing power(KW) | ≤10(6) | ≤13(8) | ≤17(10) | ≤19(12) | ≤27(15.5) | ≤37(23) | ≤42(29) | ≤57(37) | ≤74(48) |
| Handing capacity(t/h) | 0.1-0.3 | 0.1-0.5 | 3.5-7.5 | 10-20 | 20-30 | 30-50 | 50-80 | 80-150 | 150-250 |
| Slurry throughput(m3/h) | 0.25-0.5 | 5-10 | 12.5-20 | 20-50 | 50-100 | 75-150 | 100-200 | 200-400 | 360-650 |
| Magnetizing current(A) | 63 | 72 | 85 | 92 | 105 | 124 | 130 | 153 | 185 |
| Slurry density(%) | 10-40 |
| Feed particle size | -1.0 | -1.0 | -1.2 | -1.2 | -1.2 | -1.2 | -1.2 | -1.2 | -1.2 |
| Ring speed (r/min) | 3 |
| Ring diameter(mm) | Φ500 | Φ750 | Φ1000 | Φ1250 | Φ1500 | Φ1750 | Φ2000 | Φ2500 | Φ3000 |
| Ring motor power(KW) | 0.37 | 0.75 | 1.1 | 1.5 | 3 | 4 | 5.5 | 11 | 18.5 |
| Ripply motor power(KW) | 0.37 | 1.5 | 2.2 | 3 | 3 | 4 | 7.5 | 11 | 18.5 |
| Pulsion stroke(mm) | 0-30(Mechanically adjustable) |
| Pulsion frequency | 0-300(Variable frequency conversion) |
| Excitation voltage(DCV) | 0-409(280)(Change with current) |
| Unloading water pressure(Mpa) | 0.1-0.2 | 0.1-0.2 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.5 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
| Water supply pressure(m3/h) | 0.65-1.4 | 1.4-2.5 | 8-12 | 12-20 | 20-30 | 30-50 | 50-100 | 100-150 | 150-250 |
| Host weight(t) | 3(1.5) | 5(3.5) | 9(7) | 14(11) | 24(20) | 35(28) | 50(39) | 105(83) | 150(135) |
| Maximum part weight(t) | 0.3(0.25) | 0.6(0.5) | 2.2(2) | 4(3.5) | 5(5) | 11(9) | 16(13) | 23(18) | 24(19) |
| Dimensions(mm) | 1800* 1400* 1320 | 2000* 1360* 1680 | 2700* 2000* 2400 | 3200* 2340* 2700 | 3600* 2900* 3200 | 3900* 3300* 3800 | 4200* 3650* 4200 | 5800* 6000* 5400 | 7600* 6500* 7200 |
Working principle:

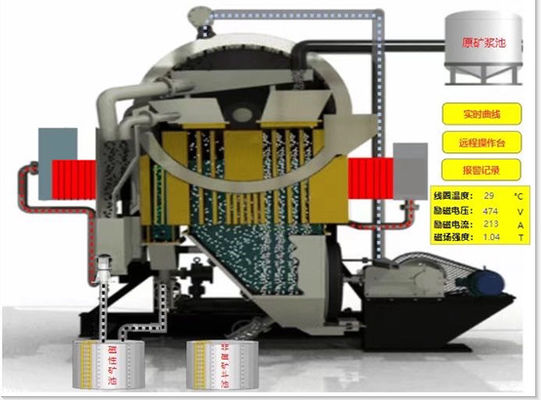

Pulp through the feeding tube into the feed hopper, pulp along the magnetic gap through the swivel,
high permeability of the stainless steel rods inside the ring of the magnetic induction medium magnetized in the background magnetic field, form a high gradient magnetic field, magnetic medium pulp in the magnetic particles are adsorbed on the surface of magnetic medium,
the swivel rotation was taken to to the top of the magnetic field area, by flushing with rinse water pressure, the magnetic materials into concentrate in the bucket, non-magnetic particles along the magnetic gap into the tailings under drained bucket in order to realize the separation of material
Swivel lower magnetic medium of submerged within the ore slurry surface,
at the same time of slurry injection, installed at the side of the tailings boxes of reciprocating motion stroke box constantly doing, make through tympanic membrane separation indoor pulp do fluctuate,
the pulsating flow physical ore grain group always maintain loose state in the process of sorting, effectively remove the particles in material, significantly improve the grade of concentrate
