Intensity Permanent Sand Magnetic Separator for Quartz Silica Sand Plant Performance

Name: Intensity Permanent Sand Magnetic Separator for Quartz Silica Sand Plant Performance
Brand: Weifang Guote Mining Equipment Co., Ltd.
Price: 5.00 USD
Availability: InStock

All Products

Magnetic Separator machine
(908)

Quartz Silica Sand Processing Line
(432)

Quartz Powder Processing Line
(291)

Mining Vibrating Screen
(210)

Mining Process Equipment
(92)

Quartz Purifying Equipment
(332)

Iron Remover Separator
(191)

Square Swing Screen
(50)

Automatic Metal Detector
(9)

Industrial Dryer Machine
(61)

Top Sale Product
(87)

Certification

I'm Online Chat Now

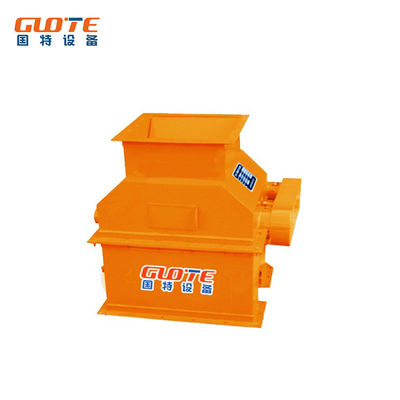

Intensity Permanent Sand Magnetic Separator for Quartz Silica Sand Plant Performance

Large Image : Intensity Permanent Sand Magnetic Separator for Quartz Silica Sand Plant Performance

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$9,500.00/sets >=1 sets
Packaging Details:	Special boxes and containers (sea transport) for dry type laboratory magnetic separator for bulk ore
Supply Ability:	100 Set/Sets per Month

Contact Now

Intensity Permanent Sand Magnetic Separator for Quartz Silica Sand Plant Performance

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	5-15t/h	Voltage:	220V
Dimension(LWH):	Customer Request	Weight:	0.5 KG
Warranty:	1year	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Pump
Key Selling Points:	Automatic	Application:	Ore
Installation:	Technical Guidance	Quality:	Strongest Magentic Roller
Advantage:	Low Consumption	Roller Dia:	600-800mm
Roller Length:	1200-1600mm	Magnetic Strength:	1000-10000gs

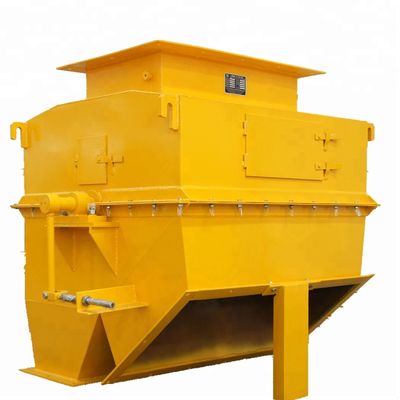

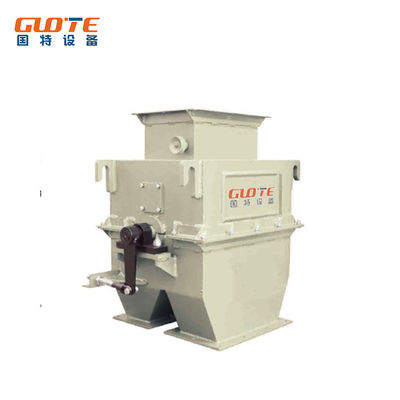

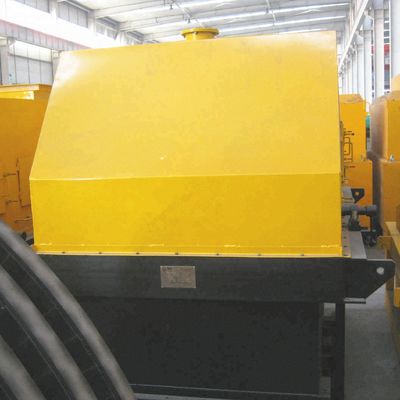

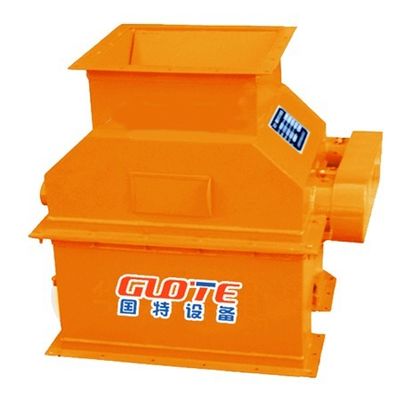

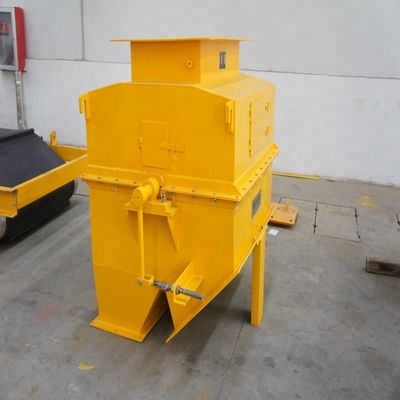

Product Show

Intensity Permanent Sand Magnetic Separator for Quartz Silica Sand Plant Performance 0

Product Description

The magnetic separation cylinder of the permanent magnet drum type magnetic separator can be equipped with three kinds of tanks, namely semi-counter-flow tank (CTB), forward-flow tank (CTS) and counter-flow tank (CTN), to meet different sorting requirements.

The semi-countercurrent groove permanent magnet drum magnetic separator is suitable for roughing and beneficiation of ore with a particle size of 0.5-0mm;The down-flow slot permanent magnet drum magnetic separator is suitable for roughing and beneficiation of the ore particle size of 6-0mm; the counter-flow slot permanent magnet drum-type magnetic separator is suitable for the rough separation and sweeping of the ore particle size of 0.6-0mm, and Heavy medium recovery in coal preparation industry.

Features:

1. Equipped with vibrating feeder feed uniformity

2. Rare earth permanent magnetic material, as magnetic source, has strong magnetic penetration and strong suction.

3. It can be made into two cylinder or multi barrel type. Magnetic force can be optional(1000Gs-10000Gs)

4. The whole machine is free from maintenance and safe to use

Application:

The permanent magnetic drum type magnetic separator is suitable for metallurgical mining, mineral processing, mineral processing plants, etc., to separate fine-grained magnetic minerals, or to remove magnetic minerals mixed with non-magnetic minerals.

Technical Parameter:

Working principle:

Intensity Permanent Sand Magnetic Separator for Quartz Silica Sand Plant Performance 2

Related Products Links


permanent magnetic iron separator
RCYB iron separator	RCYD iron separator	RCYZ iron separator

electronmagnetic iron separator
RCDB iron separator	RCDD iron separator	RCYF iron separator

Company Information

Intensity Permanent Sand Magnetic Separator for Quartz Silica Sand Plant Performance 5

Certification

Intensity Permanent Sand Magnetic Separator for Quartz Silica Sand Plant Performance 6

Our customers :

Intensity Permanent Sand Magnetic Separator for Quartz Silica Sand Plant Performance 7

Our Services

1.EPC service for single equipment and whole production line.

2.OEM service for your personal equipment or production line

3.Testing before delivery and Pretesting in working site until get qualified products

4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.

Packaging & Shipping

Intensity Permanent Sand Magnetic Separator for Quartz Silica Sand Plant Performance 8

FAQ

Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
