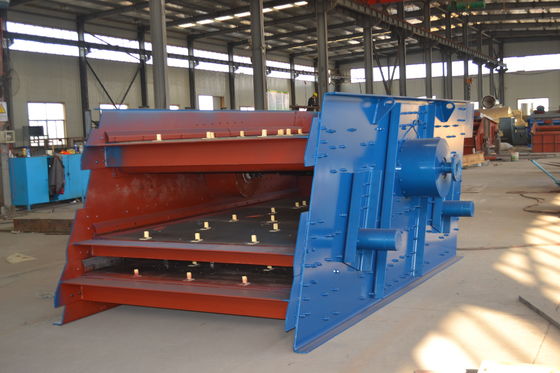

1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant

1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant
1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant

Large Image :  1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant

Product Details:
Place of Origin: Shandong, China
Brand Name: guote
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $38,800.00/sets 1-4 sets
Packaging Details: Containers or according to customer requirements
Supply Ability: 1000 Set/Sets per Month
Contact Now

1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant

Description
Applicable Industries: Energy & Mining Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Not Available
Marketing Type: Hot Product 2019 Warranty Of Core Components: 1 Year
Core Components: Motor Condition: New
Type: LINEAR Application: Ore
Voltage: 220V / 380V / As Client's Demand Dimension(L*W*H): Depends On Models
Weight: 2800 KG Warranty: 1 Year
Type:: LINEAR Material: Stainless Steel/carbon Steel
Product Name: Vibrating Screen Separator Layer(s): 1-5 Layers
Screen Mesh: 2-120mesh Sieve Size: 1000*3000mm
Feed Size: Less Than 20mm Usage: Classifying
Capacity: Capacity: 1-7tph Frequency: 1460/960mm

Product Description

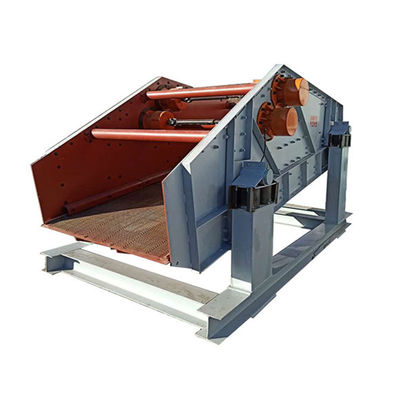

1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 0

Quartz sand vibration screen

GDS Quartz sand vibration screen is a device for the screening and grading of powdered and granular materials, made of special materials and processes for the quartz particle industry.
The vibrating screen works by means of the reciprocating vibration produced by the vibrator excitation. The above rotating hammer of the vibrator makes the sieve surface produce planar circular vibration, while the lower rotating hammer makes the sieve surface produce cone circular vibration. Its vibration track is a complex space curve. The curve is a circle on the horizontal plane and an ellipse on the vertical plane. The amplitude can be changed by adjusting the excitation force of the up and down rotating hammer. By adjusting the spatial phase Angle of the upper and lower hammer, the curve shape of the sieve surface's motion track can be changed and the motion track of the material on the sieve surface can be changed
Specification
Mode
Feeding particle size (mm)
Sieve pore size (mm)
Capacity(t/h)
Motor model
Power
Reference weight (kg)
Double-amplitude (mm)
GTYZ1230
≤150
10-80
75-245
G160M-6
7.5
2800
6-10
GTYZ1530
≤150
80-255
G160M-6
7.5
3440
GTYZ1536
≤150
95-310
G160M-6
7.5
3650
GTYZ1836
≤150
115-370
G160L-6
11
5310
GTYZ1848
≤150
150-490
G160L-6
15
6410
GTYZ2045
≤200
10-100
165-520
G180L-6
15
8900
8-12
GTYZ2060
170-550
G200L1-66
18.5
11000
GTYZ2148
175-570
G225M-8
22
10700
GTYZ2160
220-715
G225M-8
22
11900
GTYZ2460
250-810
G225M-8
30
13600
GTYZ3060
300-960
G225M-8
30
16800

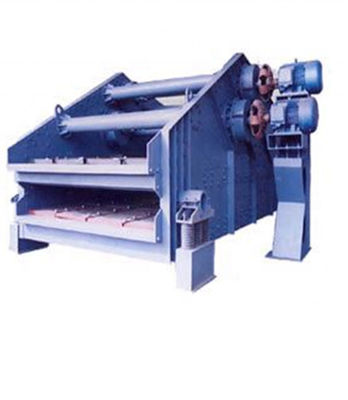

1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 1
Working principle:
Linear Vibrating Screen Sieve Size Sorting Grading Vibrator,The linear vibrating screen with double vibration motor drive, When two vibration motors are rotating synchronously and reversely,the vibration force produced by eccentric block in parallel to the direction of the motor axis offset each other, in the fold is perpendicular to the direction of the motor shaft for a resultant force, so the trajectories of sieve machine for a straight line the two motor shaft relative screen surface has a Angle, the vibration force and material since the gravitational force, under the action of the material on the screen was thrown up by leaps and bounds ahead for linear motion, so as to achieve the purpose of
the screening and grading the supplies.

vibration screen Advantages:

1. Low energy consumption, high output, simple structure, easy maintenance.
2. Fully enclosed structure, no dust, full compliance with national environmental protection requirements.
3 Automatic discharge, more suitable for assembly line operations.
4. The equipment uses special materials and processes, especially suitable for quartz particle industry.
Packing & Delivery

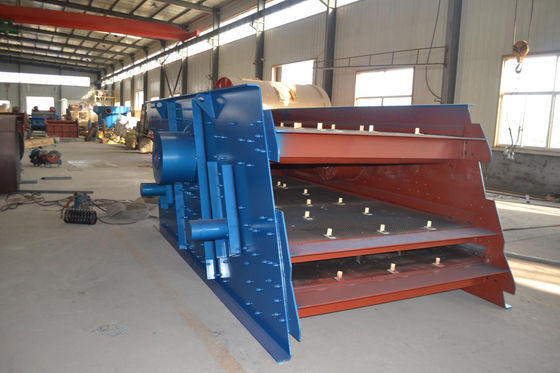

1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 2

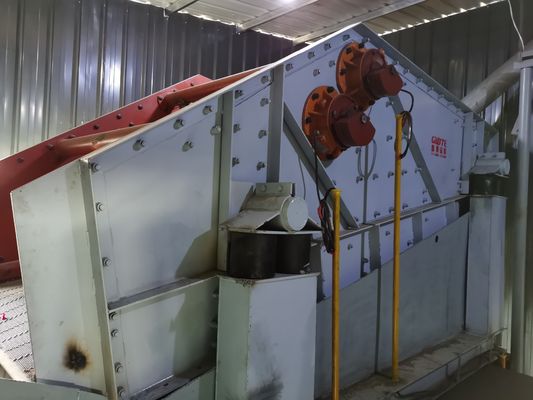

1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 3
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

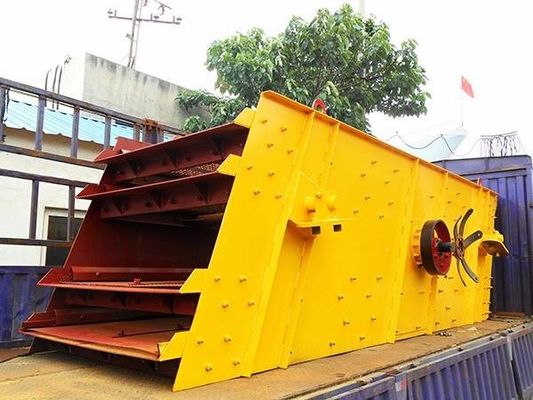

1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 4
Contact Information
Contact: Arya Wong
Mobile :+86 18217300835(whatsapp/wechat)
Add: Dongjing Road East, Industrial Zone,Qingzhou City, Weifang,Shandong Province, P.R.China
E-mail:arya@sdguote.com
Alibaba website: http://sdguote.en.alibaba.com/
Webstie: www.guotegroup.com
1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 5
1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 6
1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 7
1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 8
1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 9
1000*3000mm Sieve Size Gravel Vibrating Screen for River Sand Classification Plant 10
FAQ
Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part
availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity
