98% Separation Efficiency High Intensity Electromagnetic Separator for Quartz Sand

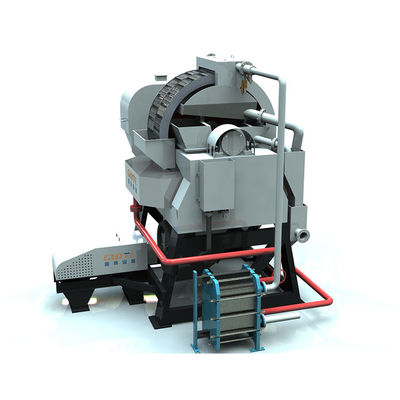

Large Image : 98% Separation Efficiency High Intensity Electromagnetic Separator for Quartz Sand

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$35,000.00/sets 1-4 sets
Packaging Details:	Containers or according to customer requirements

Contact Now

98% Separation Efficiency High Intensity Electromagnetic Separator for Quartz Sand

Description

Applicable Industries:	Machinery Repair Shops, Construction Works , Energy & Mining	Showroom Location:	Viet Nam, Russia, Morocco, Argentina, Colombia, Algeria, Kyrgyzstan
Condition:	New	Type:	Sprial Separator
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	200013601680MM	Weight:	5500 KG
Warranty:	1 Year	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor, Engine, Gearbox
Key Selling Points:	Automatic	Model:	GTLH-750
Application:	Rare Metals , Nonmetal	Keywords:	High Gradient High Intensity Magnetic Separator
Feature:	High Induced Magnetic Field	Advantage:	Magnetic Field Stability
Induced Field Intensity:	MT20000gs

Product Overview

Wet Electromagnetic High Gradient Magnetic Separator Remove Impurities
from silica sand/feldspar/kaolin

FEATURES AT A GLANCE

*The rotary ring vertical rotation and recoil concentrate overcome the problem of magnetic medium blockage of the flat ring strong magnetic separator.

*A pulp high frequency vibration mechanism is set to drive the pulp to produce pulsating fluid force Under the action of pulsating fluid force, the ore particles in the pulp are always in a loose state, which can improve the quality of magnetic concentrate.

*Strengthen Type Wet Fine Separation Selection Ore Processing Magnetic Separator with large beneficiation ratio,The upper limit of feeding particle size of magnetic separator reaches 2.0mm, which simplifies the on-site classification operation and has wider adaptability.

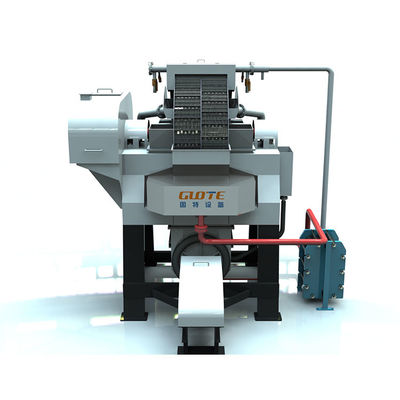

Front elevation

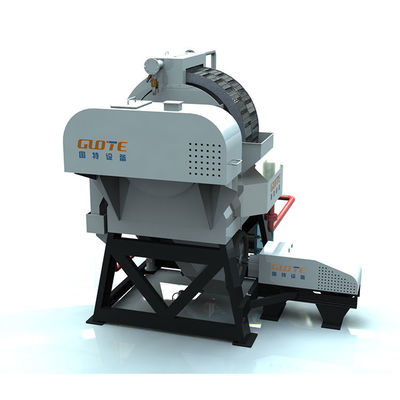

Right elevation

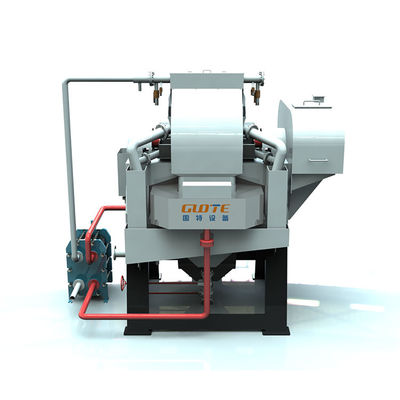

Back elevation

PRODUCT SPECIFICATIONS

Model	GTLH-500	GTLH-750(Z)	GTLH-1000(Z)	GTLH-1250(Z)
Rated background magnetic field(T)	1(0.6)Constant current continuously adjustable				37.5KW
Magnetic field	1.9(1.2)Constant current continuously adjustable				2.8 M3
Energizing power(KW)	≤10(6)	≤13(8)	≤17(10)	≤19(12)
Handing capacity(t/h)	0.1-0.3	0.1-0.5	3.5-7.5	10-20
Slurry throughput(m3/h)	0.25-0.5	5-10	12.5-20	20-50
Magnetizing current(A)	63	72	85	92
Slurry density(%)	10-40				6750ml
Feed particle size	-1.0	-1.0	-1.2	-1.2
Ring speed(r/min)	3
Ring diameter(mm)	Φ500	Φ750	Φ1000	Φ1250
Ring motor power(KW)	0.37	0.75	1.1	1.5
Ripply motor power(KW)	0.37	2.2	3	3
Pulsion stroke(mm)	0-30(Mechanically adjustable)
Pulsion frequency	0-300(Variable frequency conversion)
Excitation voltage(DCV)	0-409(280)(Change with current)
Unloading water pressure(Mpa)	0.1-0.2	0.1-0.2	0.2-0.4	0.2-0.4
Water supply pressure(m3/h)	0.65-1.4	1.4-2.5	8-12	12-20
Host weight(t)	3(1.5)	5(3.5)	9(7)	14(11)
Maximum part weight(t)	0.3(0.25)	0.6(0.5)	2.2(2)	4(3.5)
Dimensions(mm)	180014001320	200013601680	270020002400	320023402700

PRODUCT CONFIGURATION

swivel

ore hopper, ore concentrate hopper

rotary drive part
