Strong Drying Lab Magnetic Roller Separator with 15000gauss High Intensity Capacity

Large Image : Strong Drying Lab Magnetic Roller Separator with 15000gauss High Intensity Capacity

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Guote

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$15,695.00/sets >=1 sets
Packaging Details:	Containers or according to customer requirements
Supply Ability:	50 Set/Sets per Month

Contact Now

Strong Drying Lab Magnetic Roller Separator with 15000gauss High Intensity Capacity

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	99.9	Voltage:	220V/380V
Dimension(LWH):	Diffrent Model	Weight:	2500 KG
Warranty:	1 Year	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	High Productivity	Material:	Stainless Steel
Application:	Non-metallic Minerals	Magnetic Roller Length:	500mm
Magnetic Roller Field Strength:	15000-20000GS	Applicable Materials:	Quartz, Feldspar, Nepheline, Mullite, Limonite, Mangane
Magnetic Field Strength Of Drum:	4000-10000gs	Belt Thickness:	0.1-2mm
Material Size:	83-5000um	Capacity(t/h):	0.4-0.6
Drum Diving Powder:	0.75*2	Port:	Qingdao

Product Description

magnetic magnet 45 kw motor,magnetic separator for waste sorting plant

magnetic separator machine of Input size:≤0-1.5 mm
Dry Type High Intensity Permanent Rare Earth Magnetic Roller Separator Supplier for weakly magnetic mine Silica Powder Industry has Capacity:0.5-10 TPH
Magnetic strengthof Fine Mining Equipment Powder Dry Rare Earth High Intensity Iron Ore Magnetic Roller Separation Magnetic Separator can reach15000gs
Usage :magnetic separator nonferrous removes iron impurity for sand
high intensity magnetic separator is used for iron removal from particles and coarse powder materials, It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral,And It's apply to purification of chemical, food, medicine and purification, hematite, feldspar and manganese.

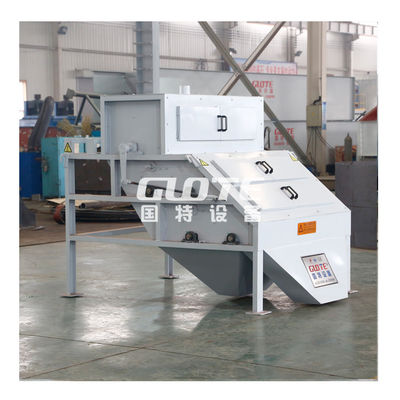

Strong Drying Lab Magnetic Roller Separator with 15000gauss High Intensity Capacity 0

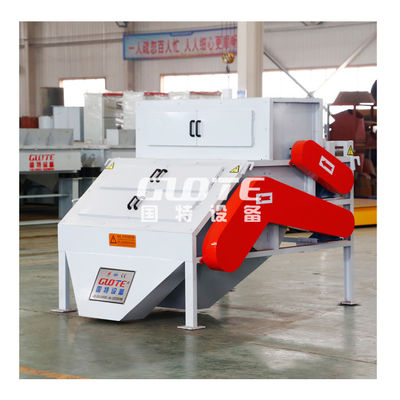

Strong Drying Lab Magnetic Roller Separator with 15000gauss High Intensity Capacity 1

Technical Features

1.Cylinder and roller reasonablely combined, iron removal more efficient.

2.Cylinder with new type permanent magnet ,magnetic field more stronger, suction more stronger

3. Drum magnetic system can be turning block type, efficient more higher

4. Surface magnet field up to 8000GS

5.Cylinder and roller's speed is variable frequency regulation

6.Magnetic roller adopted polymer composite magnetic system,magnetic field up to 20000GS, higher gradient 7. Belt made with special materials, high wear resistance

8.Controllable feeding system ensure the uniformity of material when it go through magnetic field

9. Self-clean weakly magnetic oxide,long life work

10.Dust discharged only by dust collector, so it can meet the environmental protection requirements

Technical Data

Model	Capacity (t/h)	Magnetic field strength of roller(Gs)	Magnetic field strength of drum(Gs)	Belt thickness (mm)	Material size(μm)	Drum driving power(kw)
GCT/F-3	0.4-0.6	15000-20000	4000-10000	0.1-2	83-5000	0.75*2
GCT/F-5	0.8-0.1	15000-20000	4000-10000	0.1-2	83-5000	0.75*2
GCT/F-8	1.2-2	15000-20000	4000-10000	0.1-2	83-5000	1.1*2
GCT/F-10	2-3.5	15000-20000	4000-10000	0.1-2	83-5000	1.5*2
GCT/F-12	4-7	15000-20000	4000-10000	0.1-2	83-5000	2.2*2
GCT/F-15	7-10	15000-20000	4000-10000	0.1-2	83-5000	3*2

Recommend Products

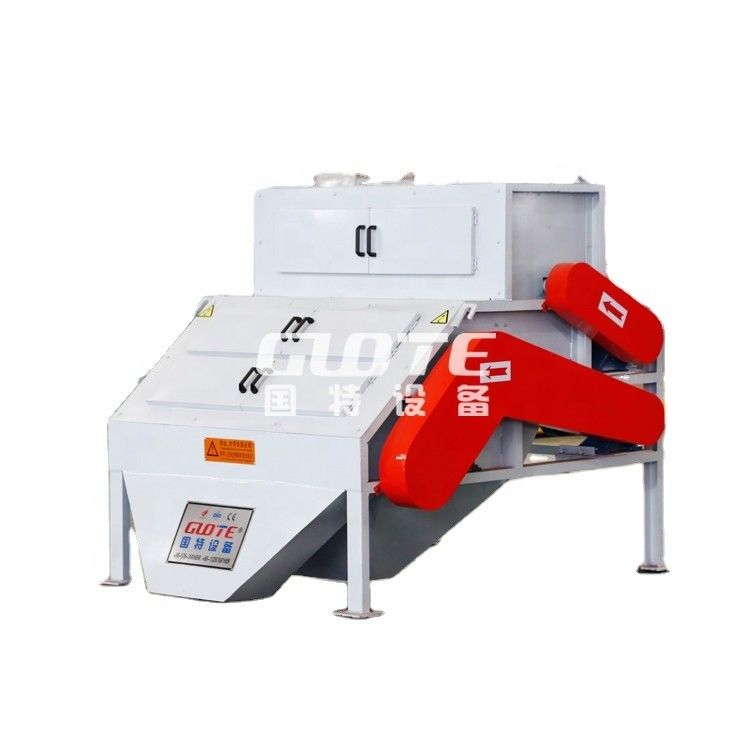

Strong Drying Lab Magnetic Roller Separator with 15000gauss High Intensity Capacity 2

Certification

Strong Drying Lab Magnetic Roller Separator with 15000gauss High Intensity Capacity 3

Our customers

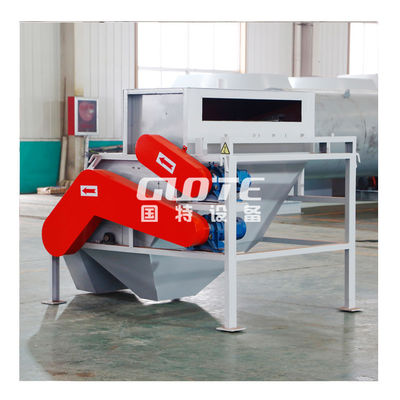

Strong Drying Lab Magnetic Roller Separator with 15000gauss High Intensity Capacity 5

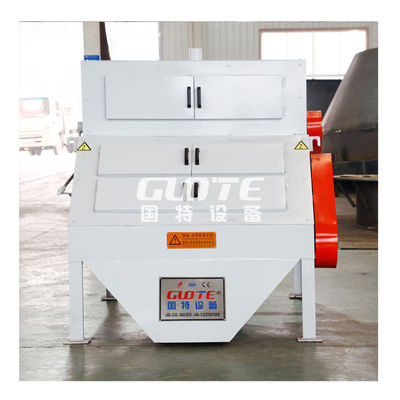

Strong Drying Lab Magnetic Roller Separator with 15000gauss High Intensity Capacity 6
