12000/16000 Gauss Magnet Separator for Iron Ore Video Outgoing-Inspection Provided

Large Image : 12000/16000 Gauss Magnet Separator for Iron Ore Video Outgoing-Inspection Provided

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$6,000.00/sets >=1 sets

Contact Now

12000/16000 Gauss Magnet Separator for Iron Ore Video Outgoing-Inspection Provided

Description

Applicable Industries:	Manufacturing Plant, Energy & Mining	Showroom Location:	Viet Nam, Indonesia, India, South Korea, Sri Lanka, Uzbekistan, Malaysia, Australia
Condition:	New	Type:	Magnetic Separator, Wet Type
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	Different Models	Weight:	2000 KG
Warranty:	12Month	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	High Magnetic Field Strength	Feeding Size:	<1.2mm
Installation:	Engineer Guide	Function:	Deironing Purification
Machine Type:	GTLH	Keywords 1:	Magnetic Separator
Keywords 2:	Electromagnetic Separator	Keywords 3:	High Intensity Magnetic Separator

Products Description

Feed size:0-1.2mm
Magnetic strength:0.8T 1.0T 1.2T 1.4T wet type electro magnetic
Usage:removing weak magnetic iron impurity

The high intensity magnetic separator with most advanced technology and best performance in the worldwide. Whole equipment have swivel vertical rotation and back flush mineral ores functions, following with high frequency vibration motor. It has higher enrichment ratio and can adapt different particle size and concentration and grade of mineral ores. And also have advantages of reliable working and easy operation and maintenance. The vertical ring high gradient magnetic separator is composed of frame, yoke, rotating ring, ore hopper, flushing device, concentrate hopper, medium box, tailings tank, oil cooling excitation coil, oil cooling system and control system. The core magnetic circuit is designed by computer simulation, with high magnetic field intensity and large gradient.

Product Paramenters

Working Principle

High Intensity Wet Vertical Ring Magnetic Separator ,Magnetic yoke fixed on the machine frame, which generate the strong magnetic field together with exciting coil. Rotary ring is in the clockwise drived by the rotary device, and goes through the magnetic field slowly. There are many separation boxes on the outer circle of the rotary ring , there is the multi-layer magnetic medium which is made of magnetic material inside the separation box. When the rotary ring goes through the magnetic filed, it would be magnetized, and formed the high gradient magnetic field. In the mineral processing, the mine slurry goes into the rotary ring along with the gap of the magnetic pole, and the magnetic particle would be attracted in the magnetic medium surface, revolving to the non-magnetic area. The magnetic particle would be put into the fine tank, and the nonmagnetic material goes into the tailing tank along the lower magnetic yoke gap.

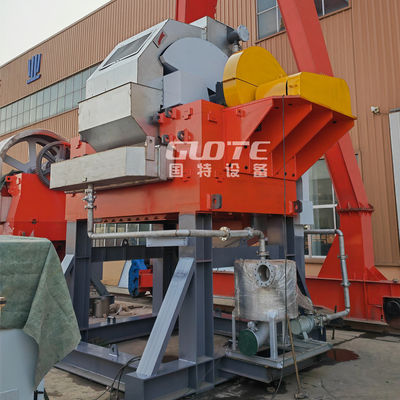

Details Images

1. Rack 2. Lower yoke 3. Upper yoke 4. Feed hopper 5. Swivel 6. Concentrate collecting hopper
7. Flushing hopper8. Medium box 9. Tailings box 10. Pulse box 11. Oil-cooled excitation coil 12. Plate condenser

Outstanding Advantages

1. Vertical rotating ring, high separation efficiency;
2. Unique magnetic medium, high induction magnetic field;
3. Good heat dissipation effect, more stable magnetic field;
4. Wide range of application, complete machine reliable maintenance free;
5. The coil has a special structure and can operate in severe conditions;
6. Special cooling method, coil is not easy to block, long service life.

Recommend Products

GTLH vertical ring Magnetic Separato

1.0T 1.3T 1.5T Wet Process Electromagnetic Type

GTGB Plate Magnetic Separator

4,500GS-15,000GS Wet Process Permanent

CTB/N/S Drum Magnetic Separator

1,000-6,500GS Wet Process Permanent Magnetic Type

GDF Magnetic Separator

10,000-20,000GS Dry Powder Electromagnetic Type

GCT/F Roller Magnetic Separator

15,000GS Dry Permanent Multi Rollers Type

GTZ Drum Magnetic Pulley

1,000-7,000GS Dry Permanent Drum Magnetic Pulley

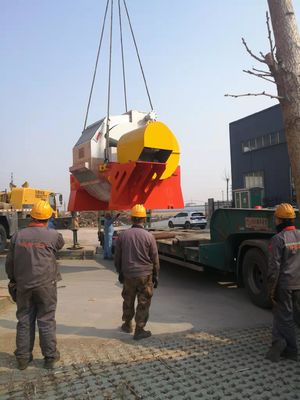

Shipping

Company Profile

Basic Company Introduction

Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.

About GUOTE

Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...

Certifications

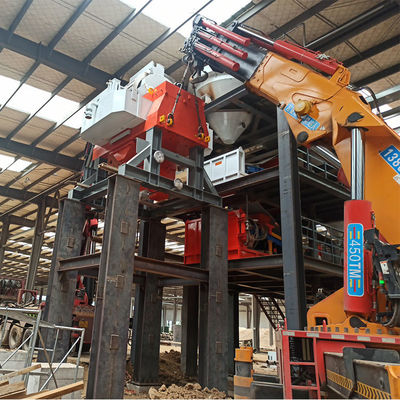

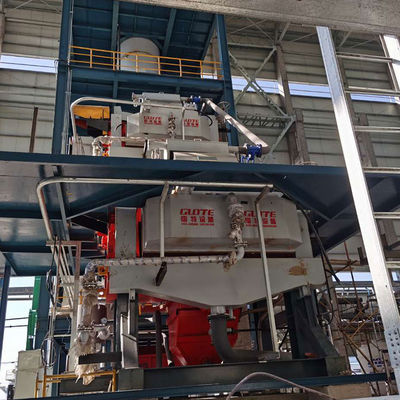

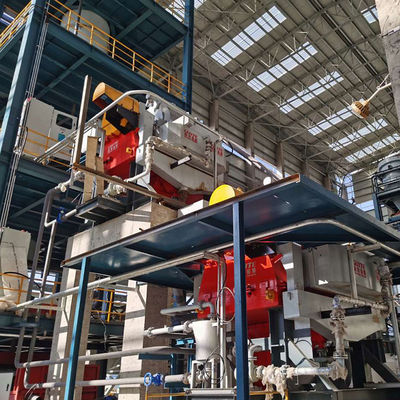

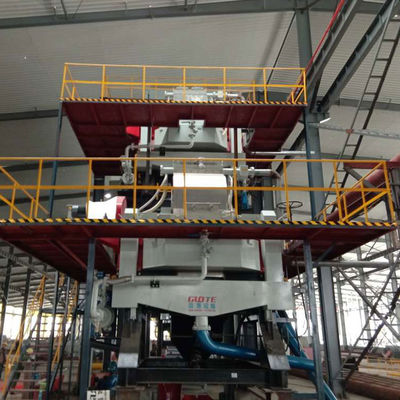

Customer Photos
