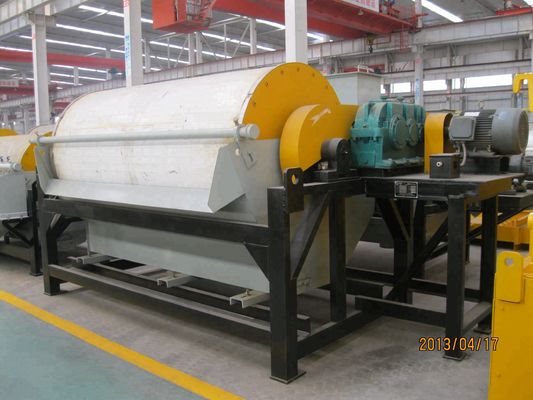

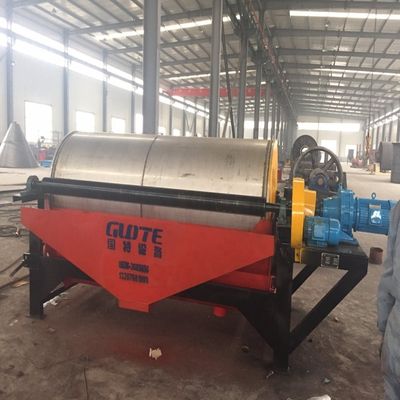

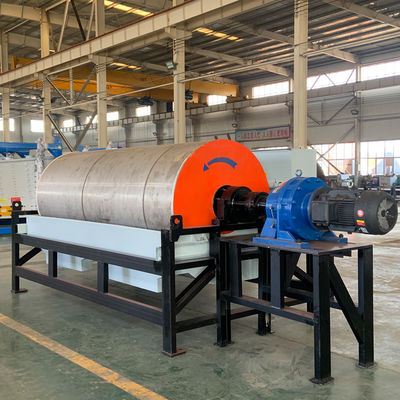

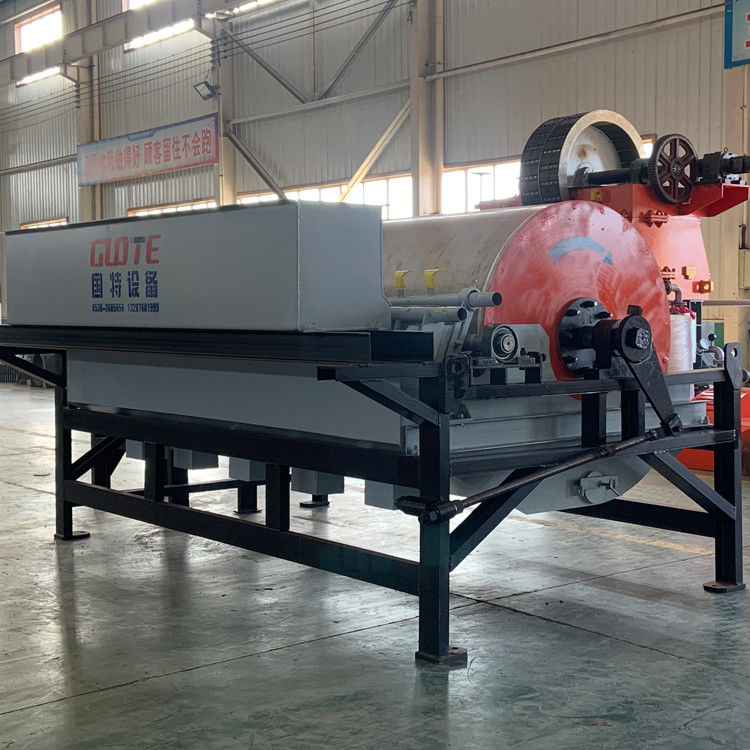

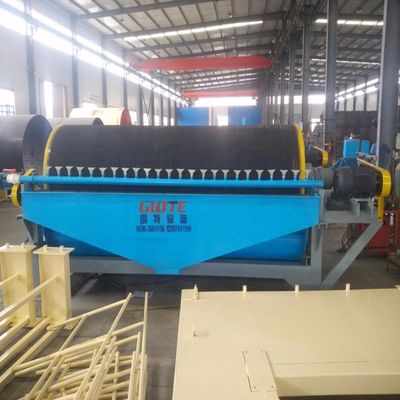

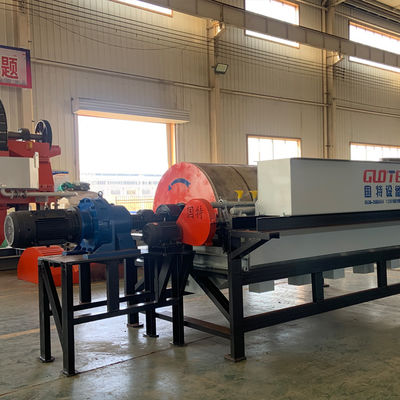

High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation

High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation
High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation

Large Image :  High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation

Product Details:
Place of Origin: Shandong, China
Brand Name: Guote
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $5,000.00/sets >=1 sets
Contact Now

High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation

Description
Applicable Industries: Manufacturing Plant, Energy & Mining Showroom Location: Viet Nam, Indonesia, India, South Korea, Malaysia
Condition: New Type: Magnetic Separator
Production Capacity: 98% Voltage: 220V/380V
Dimension(L*W*H): 550*460*660 Weight: 750 KG
Warranty: 12 Months Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Key Selling Points: Automatic Product Name: Permanent Magnet Drum Magnetic Separator
Application: Mining Usage: Mining Separatoion
Installation: Technical Guidance Material: Stainless Steel
Capacity: 1-100 T/h Drum Speed: 14-45r/min
Magnetic Strength: 1000-7500

CTB(N/S) Series 800-6,500GS Wet Type Permanent Drum Magnetic Separator
High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation 0
Products Description
Permanent magnet drum magnetic separator is suitable for mines, coal preparation plant and other units. For weak magnetic field wet fine particles of strong magnetic minerals, or in addition to without strong magnetic mineral mixed magnetic minerals.The machine the same cylinder admirable three tub: half counter-current slot (CTB), counter-current slot (CTN) and the down-stream slot (CTS) applicable to different sorting granularity and different sorting process requirements. This product USES the computer optimization design, magnetic circuit is reasonable and strict selection of high coercive force, high residual magnetism of permanent magnet, ensure magnetic over a long time not to reduce, ensure long-term interests of the users, the overall structure is reliable and durable.
CTB:
half counter-current slot :0-0.5mm sand, especially for 0-0.15mm
CTN:
down-stream slot :0-0.6mm sand
CTS :
counter-current slot:0-6mm sand
Magnetic strength:800-6,500GS
High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation 1
Working principle
High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation 2
When the slurry enters the magnetic field area through the feeding hopper, the strong magnetic minerals are absorbed on the of the cylinder, while the weak magnetic and non-magnetic minerals are washed out by the water flow, while the magnetic minerals adsorbed on the surface of the cylinder rotate with the cylinder and are taken out of the magnetic field area, and the washing water is used to flush into the concentrate tank to complete the separation.
High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation 3
Product Paramenters
High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation 4
Manufacturing Technique
High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation 5
Outstanding Advantages
1. Using computer optimization design.

2. Many magnetic filed intensity for option according to different mineral ores.
3.The magnetic circuit is reasonable and the permanent magnet with high coercivity and high remanence is strictly selected . ensure
that the magnetic does not decrease for a long time .The overall structure is reliable and durable .
High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation 6
High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation 7
Site Picture 1
High Gradient Magnetic Separator The Cutting-Edge Technology for Iron Beneficiation 8
Site Picture 2
