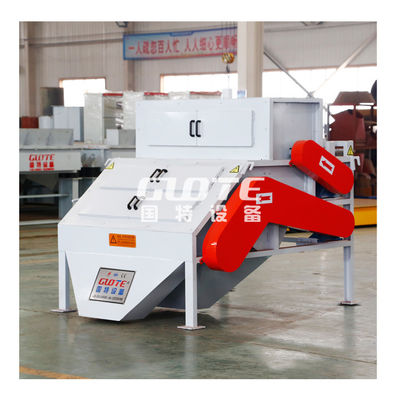

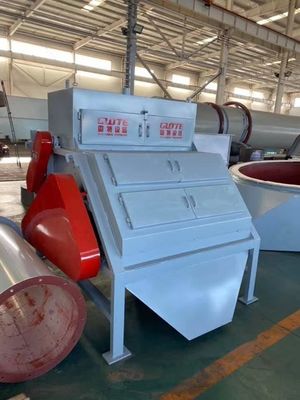

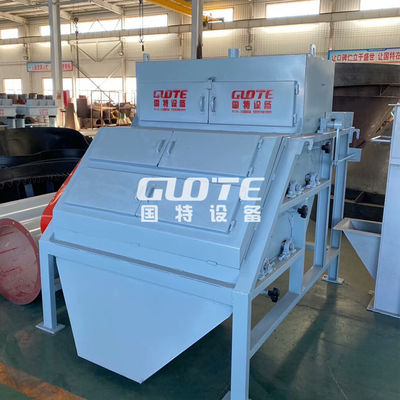

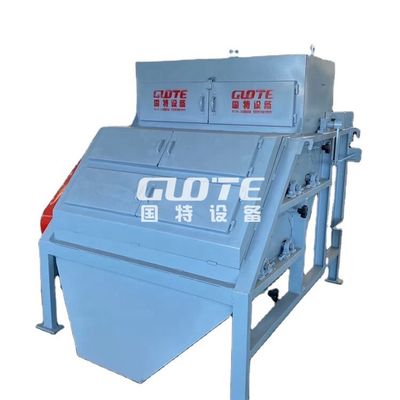

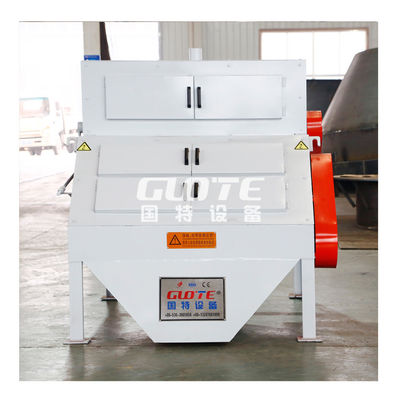

1 of Core Components High Gradient Dry Roller Magnetic Separator for Mining at Competitive

Large Image : 1 of Core Components High Gradient Dry Roller Magnetic Separator for Mining at Competitive

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,000.00/sets >=1 sets

Contact Now

1 of Core Components High Gradient Dry Roller Magnetic Separator for Mining at Competitive

Description

Applicable Industries:	Manufacturing Plant, Energy & Mining	Showroom Location:	Germany, Viet Nam, Saudi Arabia, Indonesia, India, South Korea, Kazakhstan, Ukraine, Uzbekistan, Australia
Condition:	New	Type:	Magnetic Separator
Production Capacity:	2-15T/H	Voltage:	220V/380V
Dimension(LWH):	Diffrent Model	Weight:	800 KG
Warranty:	1 Year	Marketing Type:	Hot Product 2019
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	High Magnetic Strength	Material Size:	83-5000um
Belt Thickness:	0.1-2mm	Magnetic Field Intensity Of Dum:	4000-10000Gs
Magnetic Field Intensity Of Roller:	15000-20000Gs	Roller Length:	1000mm
Application:	Coal Preparation Plant/mine	Name:	Roller Magnetic Separator Mineral Separator Magnetic Separator

Product Description

Introduction

Input size:≤0-5 mm
Capacity:0.5-10 TPH
Magnetic strength: 15000 GS
Usage :remove iron impurity for sand
It is used for iron removal from particles and coarse powder materials, It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral,And It's apply to purification of chemical, food, medicine and purification, hematite, feldspar and manganese.

Specification

Model	Capacity(t/h)	Magnetic field strength of roller(Gs)	Magnetic field strength of drum(Gs)	Belt thickness(mm)	Material size(μm)	Drum driving power(kw)
GCT/F-3	0.4-0.6	15000-20000	4000-10000	0.1-2	83-5000	0.75*2
GCT/F-5	0.8-0.1	15000-20000	4000-10000	0.1-2	83-5000	0.75*2
GCT/F-8	1.2-2	15000-20000	4000-10000	0.1-2	83-5000	1.1*2
GCT/F-10	2-3.5	15000-20000	4000-10000	0.1-2	83-5000	1.5*2
GCT/F-12	4-7	15000-20000	4000-10000	0.1-2	83-5000	2.2*2
GCT/F-15	7-10	15000-20000	4000-10000	0.1-2	83-5000	3*2

Recommend Products

GTLH vertical ring Magnetic Separato

1.0T 1.3T 1.5T Wet Process Electromagnetic Type

GTGB Plate Magnetic Separator

4,500GS-15,000GS Wet Process Permanent

CTB/N/S Drum Magnetic Separator

1,000-6,500GS Wet Process Permanent Magnetic Type

GDF Magnetic Separator

10,000-20,000GS Dry Powder Electromagnetic Type

GCT/F Roller Magnetic Separator

15,000GS Dry Permanent Multi Rollers Type

GTZ Drum Magnetic Pulley

1,000-7,000GS Dry Permanent Drum Magnetic Pulley

Company Profile

Basic Company Introduction

Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.

About GUOTE

Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...

Certifications

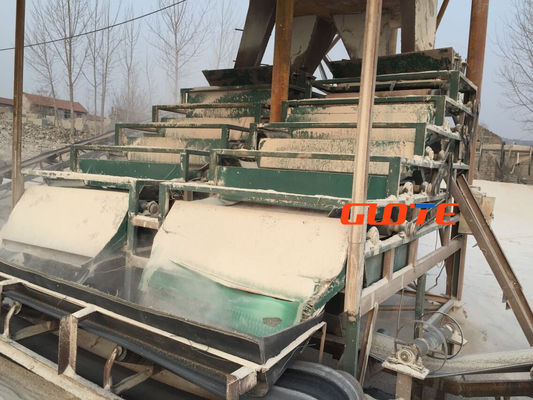

Customer Photos

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.

Contact Information

Weifang Guote Mining Equipment Co., Ltd.
Contact: Yolanda (Sales manager)
Mobile :+86 156 8429 0980 whatsapp/wechat)
Add: Dongjing Road East, Industrial Zone, Qingzhou City, Weifang,Shandong Province, P.R.China
E-mail: yolanda@sdguote.com
Alibaba website: http://sdguote.en.alibaba.com/
Webstie: www.guotegroup.com

If you have any questions, pls don't hesitate to contact me. We will reply you ASAP.
