Installation Guide and Technical Assistance for Quartz Silica Sand Washing Machine

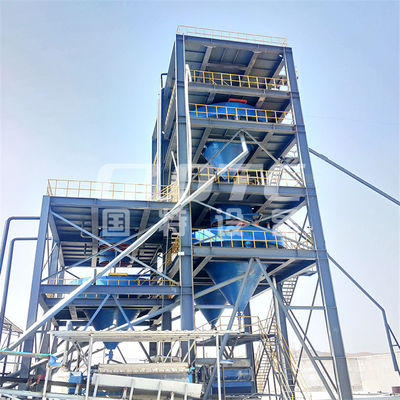

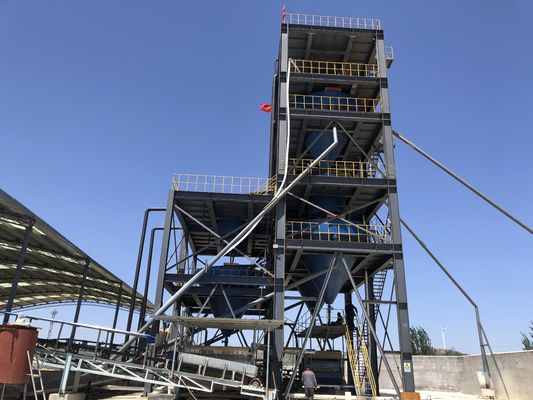

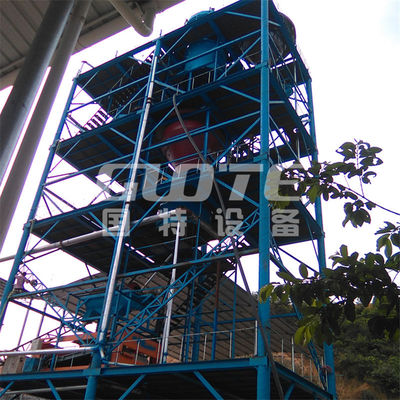

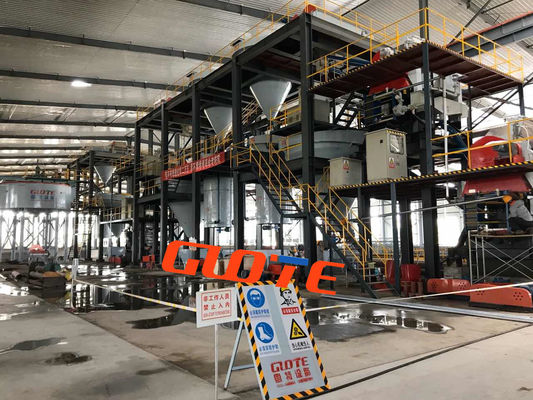

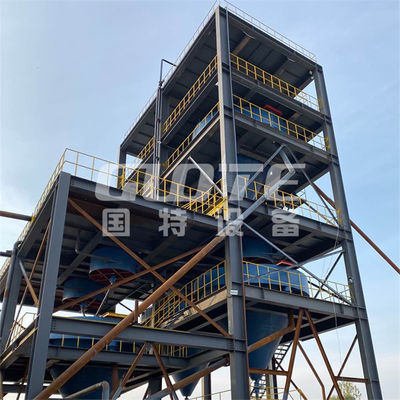

 Quartz Feldspar wet process production line

Quartz Feldspar wet processing technology
The process is a common processing technology for wet process glass sand.firstly, Quartz fall under the hopper,quartz stone is broken into the coarse material after primary crushing, and be transported by belt conveyor for further crushing to the second crushing machine, then the smaller stone will be taken into the vibrating screen for screening out two type size quartz stones, exceed size stone will be returned to crushing machine again.

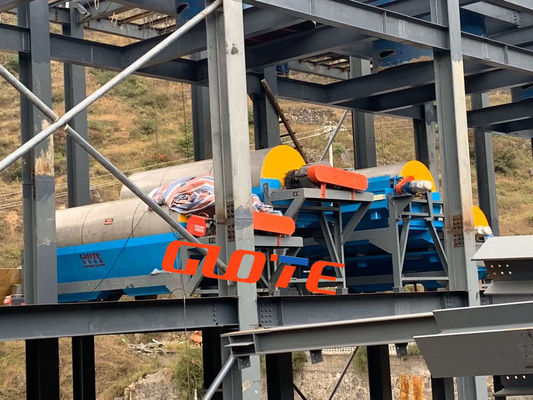

Sieved material into the rod milling machine, Materials from the rod milling machine to classify through the cylinder screen. in the sieve to return to the rod milling machine, Sieved material to eliminate the tramp iron by high intensity magnetic separator, and then into the Vertical Ring High Gradient Magnetic Separator to remove the residual mechanical iron and associated iron , usually after two procedures of separating, quartz sand iron content can down to below 0.07%,

Finally ,the qualified pulp through the hydraulic desliming slot to take off the mud, and then dehydrated to become the qualified quartz sand products. In the production line, Rod mill and the High Gradient Magnetic Separator is one of the core equipment, this production line is a high degree of automation, low operation cost, high crushing efficiency, energy saving, large output, less pollution, easy maintenance, the final quartz sand has the uniform size, good grain shape and reasonable size distribution ,which can meet the national standards of construction machine-made sand.

OEM Service

We could make whole production line or single equipment following different clients requirements.

For whole process as below:

• Firstly Please offer detailed technical drawing in CAD including whole detailed requirements.
• Secondly we will offer different technical proposals follwing offered drawings with requirements for clients.
• Thridly make decision for which proposal and confirm it.
• At last manufacture whole equipments following techncial proposal and holding test in warehouse.
• Finally finished equipment/prodcution line and offered service as turn-key-project.

For details, please contact me:

Annie Chang

Mob:0086-18678029069(whatsapp)

E-mail: Annieflower.chang dot sdguote.com

Weifang GUOTE Mine Equipment co.ltd. is professional and modern enterprise including research and development, engineering design, production and installation, debugging services , automatic control equipment, non-metallic mineral production line test, design, consultation and the complete line of delivery.The scope of services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles,food, cement ,etc.Our product sell well in more than thirty provinces, autonomous region.(For details, please contact me:Annie Chang,Mob:0086-18678029069(wechat/whatsapp),E-mail: Annieflower.chang dot sdguote.com)

Our product have electromagnetic, permanent magnetic separator, dry wet magnetic separator,electromagnetic vibration feeder, quartz sand making machine, air classifier, dust collector, water separator, washing machine, flotation machine,metal detector, screw conveyor, timing quantitative feeding,weigher and centralized control system, etc.
Facing the new opportunities and challenges, the company in line with the spirit of "honesty-oriented, mutual benefit, cooperation and innovation" , dedicated to providing “dependable,simple and efficient” products and services to customers, make enterprises become domestic advanced mining equipment manufacturer.
Our company is willing to work together with people from all walks of life for a better future.
