Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently

Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently
Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently

Large Image :  Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently

Product Details:
Place of Origin: Shandong, China
Brand Name: Guote
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000.00/sets >=1 sets
Packaging Details: standard export container,20GP,40GP ,40HQ,FR container,in bulk, <br> the spare parts in wooden case or according to the customer's requirements.
Supply Ability: 100 Set/Sets per Month
Contact Now

Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently

Description
Type: Drum Drying Equipment Application: Mining Processing
Condition: New Voltage: 380V, 380V
Power: 50-100kw Dimension(L*W*H): Different Model
Key Selling Points: Long Service Life Warranty: 1 Year
Weight (KG): 5000 Applicable Industries: Energy & Mining
Showroom Location: Viet Nam, Indonesia, India, Russia, South Korea, Sri Lanka, Uzbekistan, Malaysia, Australia Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Evaporation Capacity(kg/h): 5 Heating Method: Gas Heating, Gas Heating
Material: SUS304L, SS304 Product Name: Three Cylinder Dryer
Usage: Drying Sand Below 20-40mm Capacity: 10-50tph
Input Moisture: 10-15% Output Moisture: 1%
Installation: Under Engineer's Guidance Keywords: Dryer
Port: Qingdao/Shanghai/Dalian

Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently 0
Products Description
Three-cylinder dryer equipment can dry dry mortar, yellow sand, cement slag, clay, gangue, mixture, fly ash, gypsum, iron powder and other raw materials, widely used in building materials, chemicals, castings, etc. industry.The three-cylinder dryer improves the internal structure of the original single-barrel dryer, increases the pre-drying of the wet material before entering the machine and prolongs the drying time of the wet material in the machine, plus sealing, heat preservation and reasonable supporting measures to make the dryer dry. Machine production capacity is 48-80% higher than the original single drum dryer.Evaporation intensity per unit volume up to 120-180kg/m3, It has advanced technology, reasonable operating parameters, simple and feasible operation.
Details Images
Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently 1

1. Three cylinder dryer equipment investment is 1/6 of imported products, made of alloy steel plate, 3-4 times more wear than ordinary steel plate.
2. Material can be customized according to demand 304, 316 stainless steel, ultra-pure production, eliminate impurity
contamination.
Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently 2

3. The thermal efficiency of the three-cylinder dryer is as high as 80%, and the thermal efficiency is increased by 48%.
4. The three-cylinder dryer reduces the floor space by about 50% compared to the single-cylinder dryer and reduces the civil engineering investment by about 50%.
5. The fuel can be adapted to coal, oil and gas, and can bake blocks, granules and powder materials below 20-40mm.
Gas Heating Sand Dryer for Drying Sand Below 20-40mm in Three Cylinders Efficiently 3

6. According to user requirements can easily regulate the desired final moisture index.

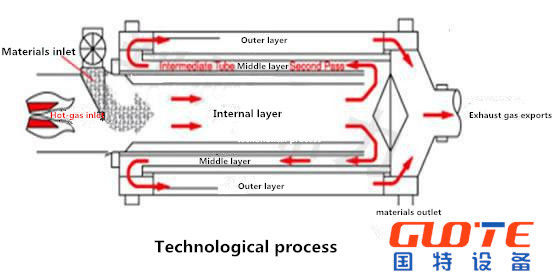

7. The machine adopts a material and hot air flow drying process,with a wide range of applications
Product Paramenters
Model
Diameter of outer cylinder
Length of outer cylinder
Cylinder volume
Weight
Rotating Speed
(rpm)
Productivity
(t/h)
GZS163
1.6
3
5.3
6
8-10
4.5-7.5
GZS214
2.1
4
12.6
7.4
10.6-17.8
GZS265
2.6
5
24..5
15.3
20.6-34.7
GZS306
3
6
36.9
32
31.1-52.2
