Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1%

Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1%
Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1% Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1% Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1% Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1% Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1% Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1%

Large Image :  Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1%

Product Details:
Place of Origin: Shandong, China
Brand Name: GUOTE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000.00/sets >=1 sets
Packaging Details: standard export container,20GP,40GP ,40HQ,FR container,in bulk, <br> the spare parts in wooden case or according to the customer's requirements.
Supply Ability: 100 Set/Sets per Month
Contact Now

Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1%

Description
Warranty: 1.5 Years Applicable Industries: Energy & Mining
Weight (KG): 5586 Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor Condition: New
Product Name: Three Cylinder Dryer Heating Method: Gas Heating
Usage: Drying Sand Below 20-40mm Material: SS304
Capacity: 10-50tph Input Moisture: 10-15%
Output Moisture: 1% Installation: Under Engineer's Guidance
Voltage: 380V Keywords: Dryer
Port: Qingdao/Shanghai/Dalian

Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1% 0
Products Description

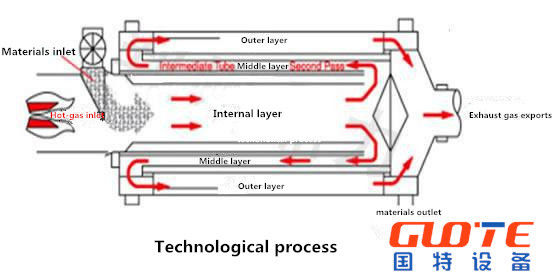

Three-cylinder dryer equipment can dry dry mortar, yellow sand, cement slag, clay, gangue, mixture, fly ash, gypsum, iron powder and other raw materials, widely used in building materials, chemicals, castings, etc. industry.The three-cylinder dryer improves the internal structure of the original single-barrel dryer, increases the pre-drying of the wet material before entering the machine and prolongs the drying time of the wet material in the machine, plus sealing, heat preservation and reasonable supporting measures to make the dryer dry. Machine production capacity is 48-80% higher than the original single drum dryer.Evaporation intensity per unit volume up to 120-180kg/m3, It has advanced technology, reasonable operating parameters, simple and feasible operation.
Details Images
Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1% 1

1. Three cylinder dryer equipment investment is 1/6 of imported products, made of alloy steel plate, 3-4 times more wear than ordinary steel plate.
2. Material can be customized according to demand 304, 316 stainless steel, ultra-pure production, eliminate impurity
contamination.
Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1% 2

3. The thermal efficiency of the three-cylinder dryer is as high as 80%, and the thermal efficiency is increased by 48%.
4. The three-cylinder dryer reduces the floor space by about 50% compared to the single-cylinder dryer and reduces the civil engineering investment by about 50%.
5. The fuel can be adapted to coal, oil and gas, and can bake blocks, granules and powder materials below 20-40mm.
Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1% 3

6. According to user requirements can easily regulate the desired final moisture index.
7. The machine adopts a material and hot air flow drying process,with a wide range of applications
Product Paramenters
Model
Diameter of outer cylinder
Length of outer cylinder
Cylinder volume
Weight
Rotating Speed
(rpm)
Productivity
(t/h)
GZS163
1.6
3
5.3
6
8-10
4.5-7.5
GZS214
2.1
4
12.6
7.4
10.6-17.8
GZS265
2.6
5
24..5
15.3
20.6-34.7
GZS306
3
6
36.9
32
31.1-52.2
Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1% 4
Mini Rotary Dryer for Dolomite Limestone Quartz Silica River Sand Output moisture 1% 5
