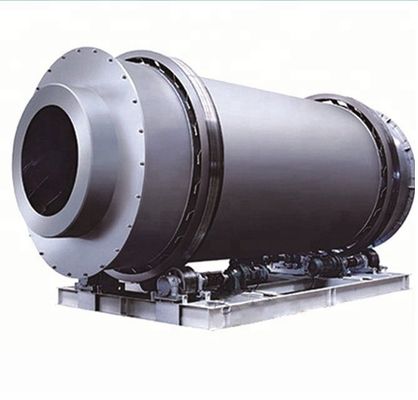

Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer

Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer

Large Image :  Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer

Product Details:
Place of Origin: Shandong, China
Brand Name: Guote
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000.00/sets >=1 sets
Packaging Details: standard export container,20GP,40GP ,40HQ,FR container,in bulk, <br> the spare parts in wooden case or according to the customer's requirements.
Supply Ability: 100 Set/Sets per Month
Contact Now

Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer

Description
Type: Drum Drying Equipment Application: Mining Processing
Condition: New Voltage: 380V, 380V
Power: 50-100kw Dimension(L*W*H): Different Model
Key Selling Points: Long Service Life Warranty: 1 Year
Weight (KG): 5000 Applicable Industries: Energy & Mining
Showroom Location: Viet Nam, Indonesia, India, Russia, South Korea, Sri Lanka, Uzbekistan, Malaysia, Australia Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Evaporation Capacity(kg/h): 5 Heating Method: Gas Heating, Gas Heating
Material: SUS304L, SS304 Product Name: Three Cylinder Dryer
Usage: Drying Sand Below 20-40mm Capacity: 10-50tph
Input Moisture: 10-15% Output Moisture: 1%
Installation: Under Engineer's Guidance Keywords: Dryer
Port: Qingdao/Shanghai/Dalian

Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 0
Products Description
Three-cylinder dryer equipment can dry dry mortar, yellow sand, cement slag, clay, gangue, mixture, fly ash, gypsum, iron powder and other raw materials, widely used in building materials, chemicals, castings, etc. industry.The three-cylinder dryer improves the internal structure of the original single-barrel dryer, increases the pre-drying of the wet material before entering the machine and prolongs the drying time of the wet material in the machine, plus sealing, heat preservation and reasonable supporting measures to make the dryer dry. Machine production capacity is 48-80% higher than the original single drum dryer.Evaporation intensity per unit volume up to 120-180kg/m3, It has advanced technology, reasonable operating parameters, simple and feasible operation.
Details Images

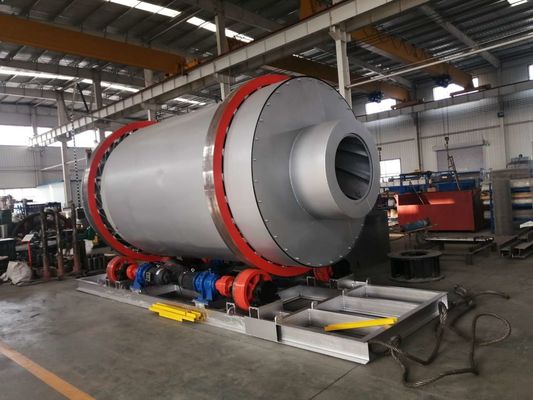

Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 1

1. Three cylinder dryer equipment investment is 1/6 of imported products, made of alloy steel plate, 3-4 times more wear than ordinary steel plate.
2. Material can be customized according to demand 304, 316 stainless steel, ultra-pure production, eliminate impurity
contamination.
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 2

3. The thermal efficiency of the three-cylinder dryer is as high as 80%, and the thermal efficiency is increased by 48%.
4. The three-cylinder dryer reduces the floor space by about 50% compared to the single-cylinder dryer and reduces the civil engineering investment by about 50%.
5. The fuel can be adapted to coal, oil and gas, and can bake blocks, granules and powder materials below 20-40mm.
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 3

6. According to user requirements can easily regulate the desired final moisture index.

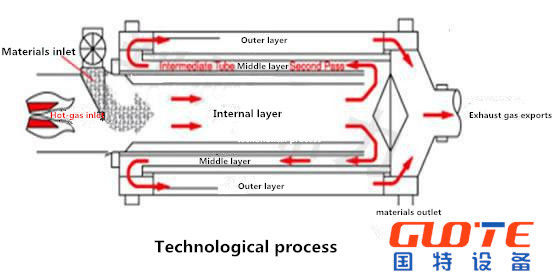

7. The machine adopts a material and hot air flow drying process,with a wide range of applications
Product Paramenters
Model
Diameter of outer cylinder
Length of outer cylinder
Cylinder volume
Weight
Rotating Speed
(rpm)
Productivity
(t/h)
GZS163
1.6
3
5.3
6
8-10
4.5-7.5
GZS214
2.1
4
12.6
7.4
10.6-17.8
GZS265
2.6
5
24..5
15.3
20.6-34.7
GZS306
3
6
36.9
32
31.1-52.2
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 4
Company Profile
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 5
Basic Company Introduction
Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 6
About GUOTE
Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 7
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 8
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 9
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 10
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 11
Certifications
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 12
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 13
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 14
Customer Photos
Gas Heating Drum Drying Equipment for Industrial River Sand Triple Pass Rotary Dryer 15

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
