Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage

Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage

Large Image :  Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage

Product Details:
Place of Origin: Shandong, China
Brand Name: guote
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $39,000.00/sets >=1 sets
Packaging Details: standard export container,20GP,40GP ,40HQ,FR container,in bulk, the spare parts in wooden case or according to the customer's requirements
Supply Ability: 200 Set/Sets per Month ball mill quartz powder making machine
Contact Now

Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage

Description
Applicable Industries: Manufacturing Plant, Energy & Mining Showroom Location: Viet Nam
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Motor Condition: New
Voltage: 220v/380v Power: 132KW-600KW
Dimension(L*W*H): Different Model Weight: 2000 Kg
Warranty: 1 Year Key Selling Points: No Pollution
Product Granularity: 4-120mesh Total Power: 110-260kw
Dust Removal Area: 100-300㎡ Speed: Variable Speed
Productivity: 7-20t/h Price: Negotiatable
After Warranty Service: Video Technical Support Port: Qingdao

Product Overview
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 0
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 1

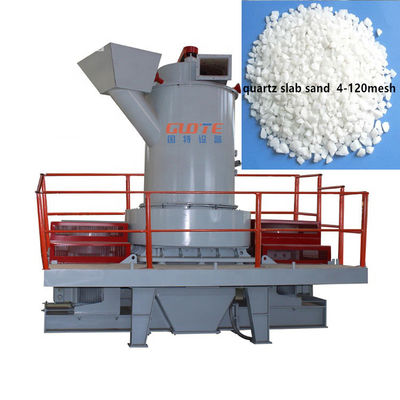

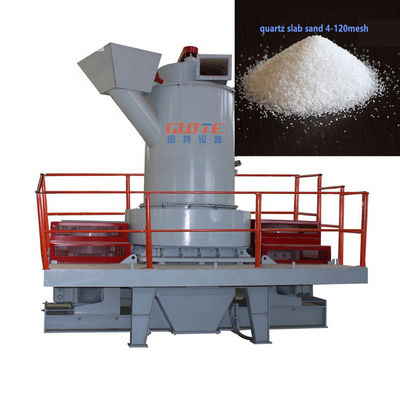

Sand Making Machine

our patent product, feeding size less than 3 cm, can make 4-120 mesh quartz plate sand
finished product：high purity, no pollution, large output, low investment
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 2

Basic Introduction

Vertical sand making machine is our company's patented product, with the characteristics of large output, high purity, pollution-free and less investment. The  plate sand is
specially used for high-grade quartz plate, which can be used in plate, glass, ceramics, casting, construction and other industries.
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 3

Outstanding advantages

1. Large output and high efficiency. 2. The sand production rate is high, more than 90%. 3. The product has good iron removal
effect. 4. The entire equipment structure is simple and reasonable, easy to operate, low failure rate, easy maintenance. 5.
Environment-friendly and dust-free.
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 4

Working principle

Feed requirements are less than 3cm, the material from the top of the equipment directly into the high-speed rotating turntable, at this time from the feed into the material and the surrounding into the material impact, stone hit stone, the formation of sand, you can get 4-120 qualified plate sand grain size.
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 5

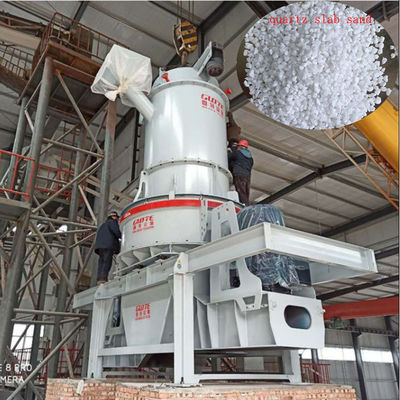

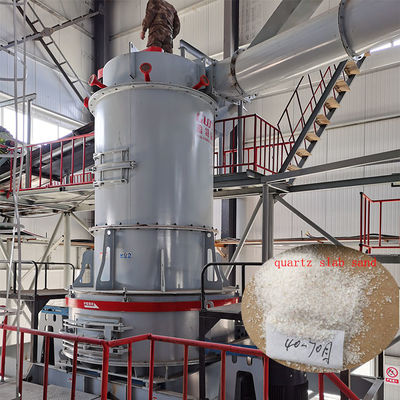

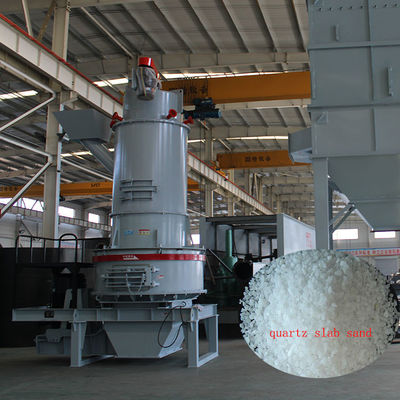

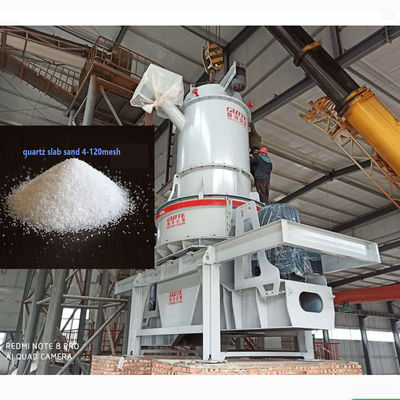

product scene picture
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 6
product scene picture
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 7
product scene picture
PRODUCT SPECIFICATIONS
Model
Feed granularity
（mm)
Product granularity
(mesh)

Total power
(kw)
Dust removal area
(㎡)
Rotating Speed
(rpm)
Productivity
(t/h)
GZP180
≤50
4-120
110
100
Variable speed
7-9
GZP200
≤80
4-120
130
150
8-12
GZP220
≤120
4-120
170
200
10-15
GZP260
≤150
4-120
260
300
15-20
Successful Project
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 8
Project in Vietnam
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 9
Project in Gangsu
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 10
Project in Xinjiang
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 11
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 12
Company Profile
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 13
Basic Company Introduction
Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 14
About GUOTE
Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 15
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 16
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 17
our laboratory
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 18
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 19
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 20
Certifications
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 21
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 22
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 23
Customer Photos
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 24

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
Services，packing，FAQ
1.EPC service for single equipment and whole production line. 2.OEM service for your personal equipment or production line  3.Testing before delivery  and Pretesting in working site until get qualified products  4.24hours for technical Operation Guide and  4hours offer technical proposal for problem shooting.
Plate Quartz Sand Making Machine for 4-120mesh Silica Sand Production 220v/380v Voltage 25
Q: Why we believe in Weifang GuoteMining Equipment  Company? A: 1. More than 10 years experience. Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry. A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery. Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality
