Silica Sand Powder Making Machine Continuous Ball Mill 5-12m Length

Large Image : Silica Sand Powder Making Machine Continuous Ball Mill 5-12m Length

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$20,000.00/sets >=1 sets
Packaging Details:	standard export container,20GP,40GP ,40HQ,FR container,in bulk, the spare parts in wooden case or according to the customer's requirements
Supply Ability:	260000 Set/Sets per Year

Contact Now

Silica Sand Powder Making Machine Continuous Ball Mill 5-12m Length

Description

Applicable Industries:	Energy & Mining	Showroom Location:	Viet Nam, Indonesia, India, Russia, Thailand, Sri Lanka, Malaysia, Australia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	PLC	Condition:	New
Type:	Ball Mill	Motor Type:	Other
Capacity(t/h):	1-50T/H	Dimension(LWH):	M) Dimension
Weight:	20 KG	Warranty:	12 Months
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Liner:	High Chrome Steel Or Ceramic
Ring Diameter(mm):	1.5-3m	Length:	5-12m
Grinding Media:	High Chrome Steel Or Ceramic	Matched Mill:	1.5, 1.83, 2.2, 2.4, 3.0
Installation:	Maintenance	Capacity:	98%
Blower Air Pressure:	2.18-2.6 Kpa	Blower Rotating Speed:	710-1500 R/min
Port:	Qingdao

Product Description

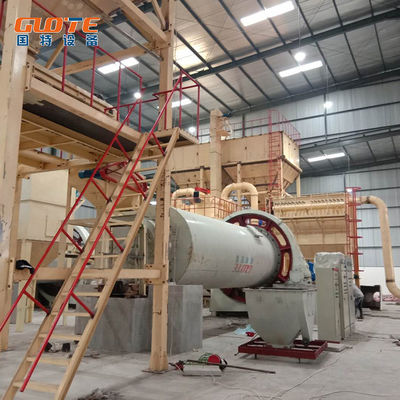

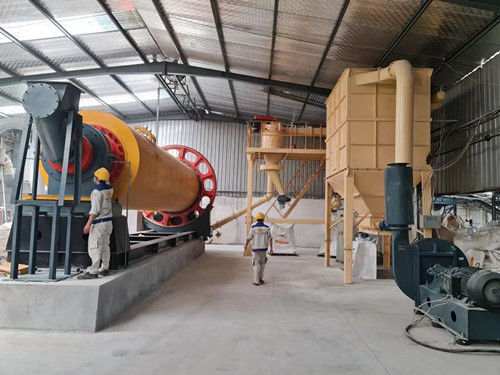

Ball mill with air classifier equipment is used for making quartz sand powder ,the whole set is including ball mill ,air classifier ,cyclone collector ,bag house dust collcetor and so on .

Specification

model	ball mill	air classifier	capacity(TPH)	mesh
GMF-100	1500x5700	GF100	1.2-1.8	325 mesh-400mesh
GMF-200	1830x7000	GF200	3.5-4	325 mesh-400mesh
GMF-400	2200x7000	GF400	5-6	325 mesh-400mesh
GMF-500	2200x7500	GF500	5-7	325 mesh-400mesh
GMF-600	2400x7500	GF600	7-9	325 mesh-400mesh
GMF-800	2600x8000	GF800	8-12	325 mesh-400mesh
GMF-1000	2800x8000	GF1000	10-15	325 mesh-400mesh
GMF-1200	3200x9000	GF1200	15-20	325 mesh-400mesh

Product Application:

Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such
as quartz sand , silica sand, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics
and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

Main Features:
1) This Ball mill machine changes the intrinsic grinding mill structure.
2) Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only.
3) Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%.
4) The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling
of the granule and the quantity dealt with is reduced by 15-20%.

FAQ

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Company Profile

Basic Company Introduction

Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.

About GUOTE

Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as:quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...

our laboratory

Certifications

Customer Photos

About customers:

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.

Weifang Guote Mining Equipment Co., Ltd.

Contact: Rika Li (Sales manager)
Mobile :+86 156 1023 2233 (whatsapp/wechat)
Add: Dongjing Road East, Industrial Zone,Qingzhou City, Weifang,Shandong Province, P.R.China
E-mail:rikali@sdguote.com
Alibaba website: http://sdguote.en.alibaba.com/
Webstie: www.guotegroup.com

If you have any questions, pls don't hesitate to contact me. We will reply you ASAP.
