durable rotary drum sand dryer with video outgoing-inspection provided at competitive

Large Image : durable rotary drum sand dryer with video outgoing-inspection provided at competitive

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Guote

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$50,000.00/sets >=1 sets
Packaging Details:	standard export container,20GP,40GP ,40HQ,FR container,in bulk, <br> the spare parts in wooden case or according to the customer's requirements.
Supply Ability:	100 Set/Sets per Month

Contact Now

durable rotary drum sand dryer with video outgoing-inspection provided at competitive

Description

Warranty:	6 Months	Applicable Industries:	Energy & Mining
Weight (KG):	30000	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	PLC	Condition:	New
Product Name:	Three Cylinder Dryer	Heating Method:	Gas Heating
Usage:	Drying Sand Below 20-40mm	Material:	SS304
Capacity:	10-50tph	Input Moisture:	10-15%
Output Moisture:	1%	Installation:	Under Engineer's Guidance
Voltage:	380V	Keywords:	Dryer

Products Description

Three-cylinder dryer equipment can dry dry mortar, yellow sand, cement slag, clay, gangue, mixture, fly ash, gypsum, iron powder and other raw materials, widely used in building materials, chemicals, castings, etc. industry.The three-cylinder dryer improves the internal structure of the original single-barrel dryer, increases the pre-drying of the wet material before entering the machine and prolongs the drying time of the wet material in the machine, plus sealing, heat preservation and reasonable supporting measures to make the dryer dry. Machine production capacity is 48-80% higher than the original single drum dryer.Evaporation intensity per unit volume up to 120-180kg/m3, It has advanced technology, reasonable operating parameters, simple and feasible operation.

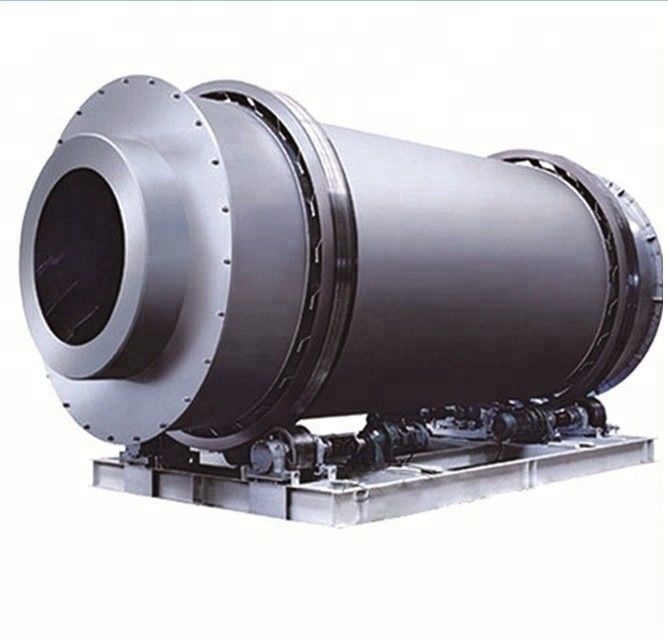

Details Images

1. Three cylinder dryer equipment investment is 1/6 of imported products, made of alloy steel plate, 3-4 times more wear than ordinary steel plate.
2. Material can be customized according to demand 304, 316 stainless steel, ultra-pure production, eliminate impurity
contamination.

3. The thermal efficiency of the three-cylinder dryer is as high as 80%, and the thermal efficiency is increased by 48%.
4. The three-cylinder dryer reduces the floor space by about 50% compared to the single-cylinder dryer and reduces the civil engineering investment by about 50%.
5. The fuel can be adapted to coal, oil and gas, and can bake blocks, granules and powder materials below 20-40mm.

6. According to user requirements can easily regulate the desired final moisture index.
7. The machine adopts a material and hot air flow drying process,with a wide range of applications

Product Paramenters

Model	Diameter of outer cylinder	Length of outer cylinder	Cylinder volume	Weight	Rotating Speed (rpm)	Productivity (t/h)
GZS163	1.6	3	5.3	6	8-10	4.5-7.5
GZS214	2.1	4	12.6	7.4			10.6-17.8
GZS265	2.6	5	24..5	15.3			20.6-34.7
GZS306	3	6	36.9	32			31.1-52.2

Company Profile

Basic Company Introduction

Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.

About GUOTE

Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...

Certifications

Customer Photos

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
