High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive

High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive

Large Image :  High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive

Product Details:
Place of Origin: Shandong, China
Brand Name: Guote
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $10,000.00/sets >=1 sets
Packaging Details: standard export container,20GP,40GP ,40HQ container,in bulk,the spare parts in wooden case or according to the customer's requirements.
Supply Ability: 10 Set/Sets per Month
Contact Now

High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive

Description
Applicable Industries: Manufacturing Plant, Energy & Mining Showroom Location: Viet Nam, Indonesia, India, Malaysia
Condition: New Type: Impact Crusher
Application: To Make Slab Sand Motor Type: AC Motor
Capacity(t/h): 1-50tph Dimension(L*W*H): Different
Weight: 4000 KG Warranty: 1 Year
Marketing Type: Hot Product 2019 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: PLC Key Selling Points: High Sand Making Rate
Keyword: Sand Making Machine Power: 83kw
Dust Control Area: 100 Cubic Meter Capacity: 5-30 T/h
Installation: Engineer Guide Quality: High Level
Rotate Speed: Adjustable After Warranty Service: Video Technical Support
After-sales Service Provided: Free Spare Parts Product Name: China Vsi Crusher Quarry Grind Sand Making Machine Price
Port: QINGDAO

Product Overview
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 0
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 1

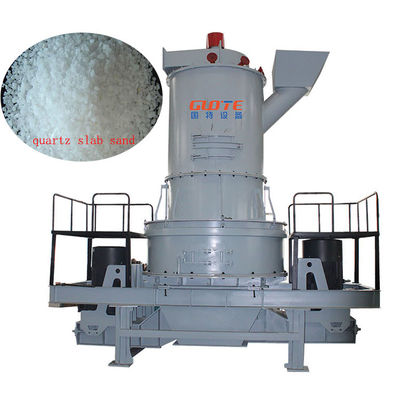

Sand Making Machine

our patent product, feeding size less than 3 cm, can make 4-120 mesh quartz plate sand
finished product：high purity, no pollution, large output, low investment
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 2

Basic Introduction

Vertical sand making machine is our company's patented product, with the characteristics of large output, high purity, pollution-free and less investment. The  plate sand is
specially used for high-grade quartz plate, which can be used in plate, glass, ceramics, casting, construction and other industries.
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 3

Outstanding advantages

1. Large output and high efficiency. 2. The sand production rate is high, more than 90%. 3. The product has good iron removal
effect. 4. The entire equipment structure is simple and reasonable, easy to operate, low failure rate, easy maintenance. 5.
Environment-friendly and dust-free.
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 4

Working principle

Feed requirements are less than 3cm, the material from the top of the equipment directly into the high-speed rotating turntable, at this time from the feed into the material and the surrounding into the material impact, stone hit stone, the formation of sand, you can get 4-120 qualified plate sand grain size.
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 5

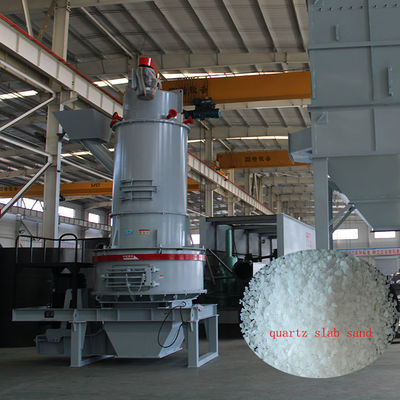

product scene picture
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 6

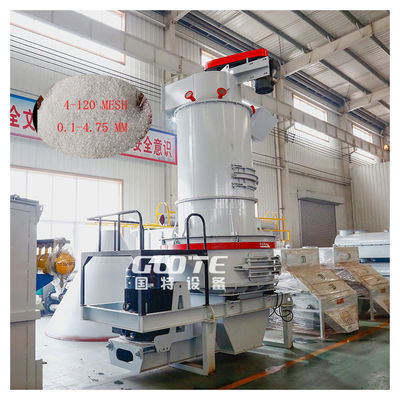

product scene picture
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 7

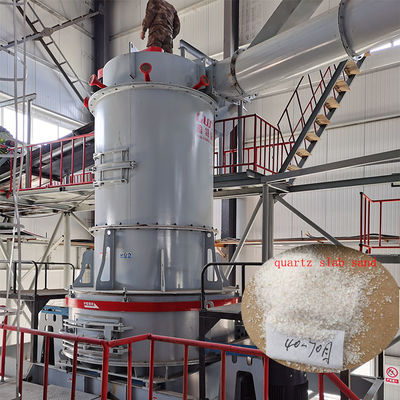

product scene picture
PRODUCT SPECIFICATIONS
Model
Feed granularity
（mm)
Product granularity
(mesh)

Total power
(kw)
Dust removal area
(㎡)
Rotating Speed
(rpm)
Productivity
(t/h)
GZP180
≤50
4-120
110
100
Variable speed
7-9
GZP200
≤80
4-120
130
150
8-12
GZP220
≤120
4-120
170
200
10-15
GZP260
≤150
4-120
260
300
15-20
Successful Project
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 8
Project in Vietnam
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 9
Project in Gangsu
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 10
Project in Xinjiang
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 11
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 12
Company Profile
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 13
Basic Company Introduction
Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 14
About GUOTE
Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 15
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 16
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 17
our laboratory
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 18
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 19
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 20
Certifications
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 21
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 22
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 23
Customer Photos
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 24

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
Services，packing，FAQ
1.EPC service for single equipment and whole production line. 2.OEM service for your personal equipment or production line  3.Testing before delivery  and Pretesting in working site until get qualified products  4.24hours for technical Operation Guide and  4hours offer technical proposal for problem shooting.
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 25
Q: Why we believe in Weifang GuoteMining Equipment  Company? A: 1. More than 10 years experience. Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry. A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery. Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality
Contact Information
High Purity Quartz Slab Sand Making Machines with 5-30 t/h Capacity at Competitive 26
Weifang Guote Mining Equipment Co., Ltd.
Contact: Yolanda (Sales manager)
Mobile :+86 156 8429 0980 (whatsapp/wechat)
Add: Dongjing Road East, Industrial Zone,Qingzhou City, Weifang,Shandong Province, P.R.China
E-mail:yolanda@sdguote.com
Alibaba website: http://sdguote.en.alibaba.com/
Webstie: www.guotegroup.com

If you have any questions, pls don't hesitate to contact me. We will reply you ASAP.
