Ball Mill for 325 Mesh Silica Quartz Powder Production Line White Quartz Powder Making Machine

Large Image : Ball Mill for 325 Mesh Silica Quartz Powder Production Line White Quartz Powder Making Machine

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Guote
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$18,000.00/sets >=1 sets
Packaging Details:	Packaging: Specially made wooden boxes and containers.Equipment painting completed before shipment, With Stretch film to avoid rub off the surface paint, It can used wooden cases packaging according to users requirements.(Key parts such as electric cabine
Supply Ability:	100 Set/Sets per Month

Contact Now

Ball Mill for 325 Mesh Silica Quartz Powder Production Line White Quartz Powder Making Machine

Description

Applicable Industries:	Manufacturing Plant, Energy & Mining	Showroom Location:	Viet Nam, India
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor	Condition:	New
Type:	Ball Mill	Motor Type:	AC Motor
Capacity(t/h):	.	Dimension(LWH):	Different
Weight:	KG	Warranty:	1 Year
Color:	Requirement	Installation:	Engineer Guide
Dust Concentration:	≤40	After-sales Service Provided:	Video Technical Support
After-sales Service Provided2:	Online Support	Port:	Qingdao

GMF Quartz Grinding Mill with Air Classifier; Quartz Powder Production Line

Products Description

Brand: GUOTE
Model: GMF
Input Size: 0-5mm
Output Size: 200-1250 mesh

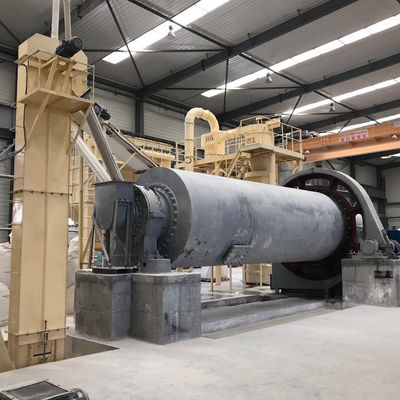

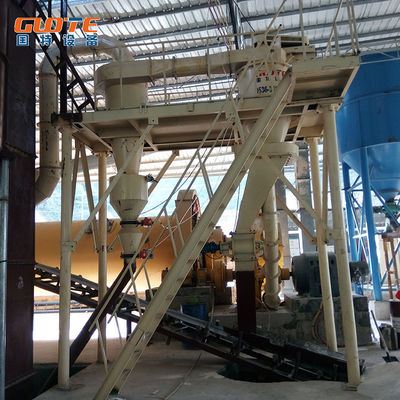

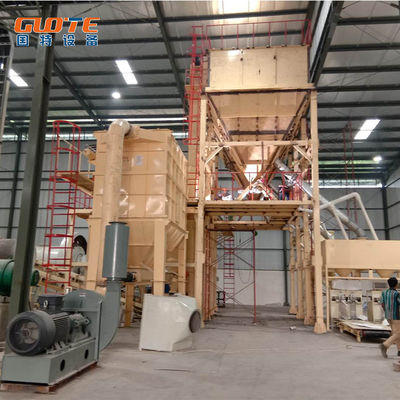

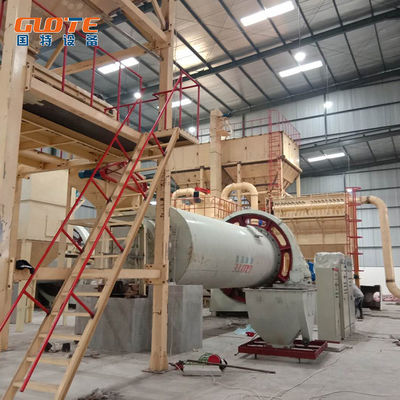

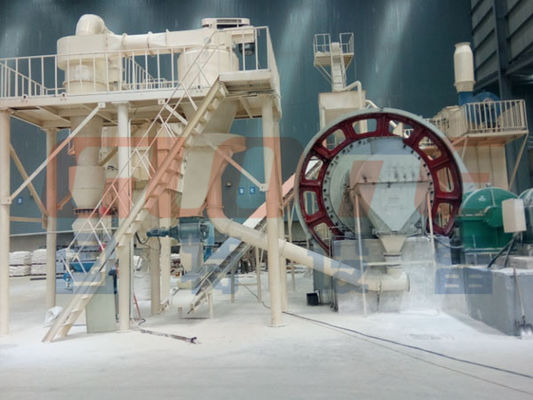

Ball mill with air classifier equipment is used for making quartz sand powder ,the whole set is including ball mill ,air classifier ,cyclone collector ,bag house dust collector and so on.
Application: Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as quartz sand , silica sand, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

Working principle

The materials which less than 10 mesh, from feeding apparatus through the feeding hollow shaft screw enter into mill warehouse homogeneous, the warehouse is equipped with a ceramic liner plate with steel and jade balls of different specifications, the centrifugal force generated by the rotation of the cylinder brings the dielectric ball to a certain height and then falls down, impact and grinding on materials. The powder that meets the requirement is discharged through the discharge grate, finish the milling operation. After grinding, the material enters the classifier from the inlet, by adjusting the speed of the classifying wheel (frequency control, stepless speed regulation) and reasonable secondary wind, a reasonable and stable gas-solid two-phase flow is formed in the grading zone, the interaction between centrifugal force and the negative pressure of the fan is generated by the rotation of the classifying wheel to realize effective grading of materials. The coarse particles are returned to the ball mill by the coarse material return device to continue grinding, and the finished products are packaged by the automatic packaging machine. The whole system is equipped with a dust precipitator using more advanced electromagnetic pulse automatic ash removal,the dust is filtered by the filter bag after the dust-carrying gas enters the dust collector,dust attached to the outer surface of the filter bag is scattered at the bottom under the action of pulse blowback gas. The filtered clean gas is discharged into the atmosphere through the fan.

Product Paramenters

Manufacturing Technique

Outstanding Advantages

1) This Ball mill machine changes the intrinsic grinding mill structure.
2) Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only.
3) Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%.
4) The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling
of the granule and the quantity dealt with is reduced by 15-20%.

Recommend Products

GTLH vertical ring Magnetic Separato

1.0T 1.3T 1.5T Wet Process Electromagnetic Type

GTGB Plate Magnetic Separator

4,500GS-15,000GS Wet Process Permanent

CTB/N/S Drum Magnetic Separator

1,000-6,500GS Wet Process Permanent Magnetic Type

GDF Magnetic Separator

10,000-20,000GS Dry Powder Electromagnetic Type

GCT/F Roller Magnetic Separator

15,000GS Dry Permanent Multi Rollers Type

GTZ Drum Magnetic Pulley

1,000-7,000GS Dry Permanent Drum Magnetic Pulley

Company Profile

Basic Company Introduction

Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.

About GUOTE

Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...

Certifications

Customer Photos

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
