Automatic Mineral Separator Wet Magnetic Separator with ≥14000GS Magnetic Field Intensity

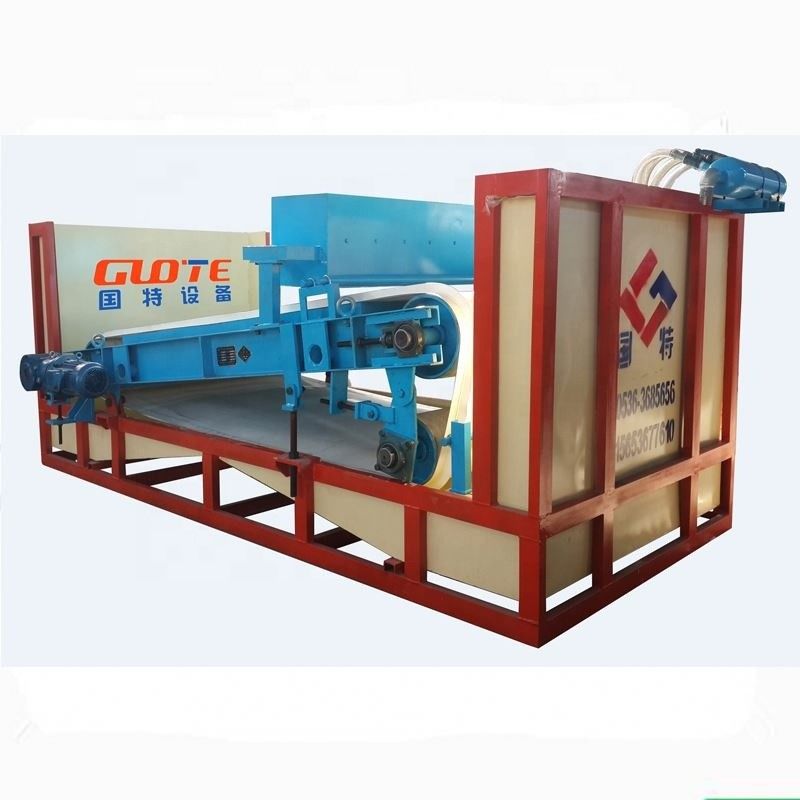

Large Image : Automatic Mineral Separator Wet Magnetic Separator with ≥14000GS Magnetic Field Intensity

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Guote

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$50,000.00/sets >=1 sets

Contact Now

Automatic Mineral Separator Wet Magnetic Separator with ≥14000GS Magnetic Field Intensity

Description

Applicable Industries:	Energy & Mining	Showroom Location:	Viet Nam, Indonesia, India, South Korea, Malaysia
Condition:	New	Type:	Magnetic Separator
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	Diffrent Model	Weight:	5000 KG
Warranty:	1 Year	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Automatic	Capacity:	8-35t/h
Magnetic Field Intensity:	≥14000GS	Concentration Of The Slurry:	10-30%
Belt Speed:	2-8r/min	Keywords:	Magnetic Separator
Feeding Size:	0-1.2mm	Price:	Negotiable
Color:	Customers' Requirements	Feature:	High Magnetic Field
Processed Materials:	Separating Iron From Non Metallic Mining

4,500-15,000GS Wet Type Permanent Magnetic Separator

Products Description

GTGB series permanent high strength magnetic flat type magnetic separator is our latest research and development of high gradient and high intensity magnetic separator equipment.

It is mainly used to 1.2 mm fine non-metallic minerals, such as quartz, feldspar and nepheline. Kaolin iron impurities removing purification, can also be used in red iron ore (hematite, limonite and siderite, etc.), manganese ore, ilmenite, wolframite variety of weak magnetic ore wet separation and black and white tungsten separation, black tungsten and tin separation.

Details Images

Product Paramenters

Model	Capacity (t/h)	Magnetic field Intensity	Concentration of the Slurry	Belt Speed	Power (kw）	Machine Size
GTGB815	8-10	15,000GS	10-30%	2-8 (r/min)	1.1	2500X1500X1400
GTGB1020	10-15						1.5	3000X1600X1400
GTGB1520	15-20						2.2	3000X2000X1500
GTGB2025	20-25						3	4200X2600X1700
GTGB2030	25-30						4	4600X2600X1700
GTGB2030	30-35						4	4900X2600X1900

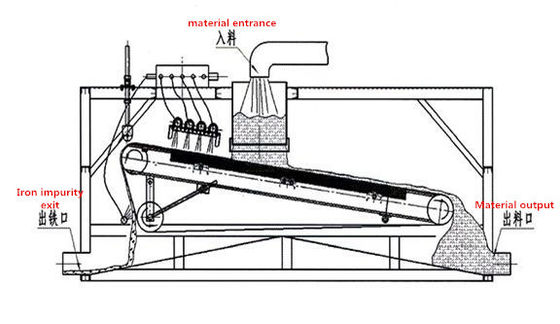

Working principle

The slurry enters the distribution device of the magnetic separator through the feeding pipe, and after fully dispersed, it is evenly sprinkled on the belt of iron removing which on the upper part of the magnetic plate.
Under the action of gravity, the slurry flows downward along the inclined direction of the magnetic plate. The ferromagnetic material contained in the slurry is firmly adsorbed on the iron-removing belt under the strong magnetic field provided by the magnetic plate,the motor drive the belt to move upward along the direction of the magnetic plate, and at the same time, the adsorbed ferromagnetic material is brought into the iron removing area. Washed by the flushing water and get into the tailing hopper for concentrated collection and the non-magnetic slurry continues to flow down the magnetic plate, and the inflow into the concentrate bucket for collection.

Working principle

belt to move upward along the direction of the magnetic plate, and at the same time, the adsorbed ferromagnetic material is brought into the iron removing area. Washed by the flushing water and get into the tailing hopper for concentrated collection and the non-magnetic slurry continues to flow down the magnetic plate, and the inflow into the concentrate bucket for collection.

Manufacturing Technique

Outstanding Advantages

1.Selection of high performance NdFeB magnetic materials , the magnetic circuit design is unique, the magnetic filed intensity , the surface magnetic field strength can reach15000Gs.
2.Compared to the other permanent separation of the magnetic field , Large scavenging area of magnetic field , the magnetic separation effect is better.

3.Variable frequency adjustable belt speed , Power saving and energy conservation

4. Automatic cleaning of adsorbed magnetic materials

5.Compared to other high gradient magnetic separator energy saving,power saving

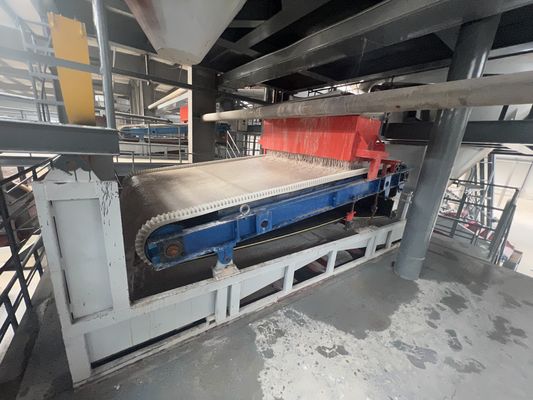

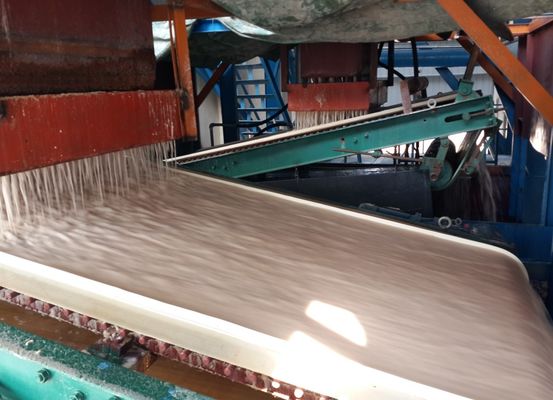

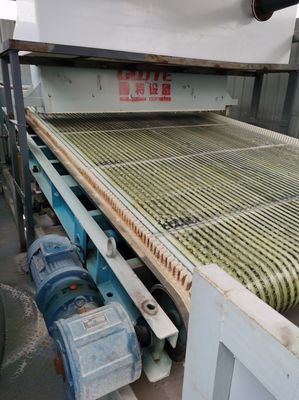

Site Picture 1

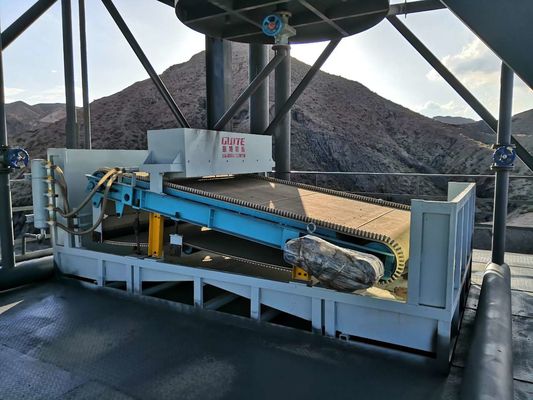

Site Picture 2

Recommend Products

GTLH vertical ring Magnetic Separato

1.0T 1.3T 1.5T Wet Process Electromagnetic Type

GTGB Plate Magnetic Separator

4,500GS-15,000GS Wet Process Permanent

CTB/N/S Drum Magnetic Separator

1,000-6,500GS Wet Process Permanent Magnetic Type

GDF Magnetic Separator

10,000-20,000GS Dry Powder Electromagnetic Type

GCT/F Roller Magnetic Separator

15,000GS Dry Permanent Multi Rollers Type

GTZ Drum Magnetic Pulley

1,000-7,000GS Dry Permanent Drum Magnetic Pulley

Company Profile

Basic Company Introduction

Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.

About GUOTE

Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...

Certifications

Customer Photos

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
