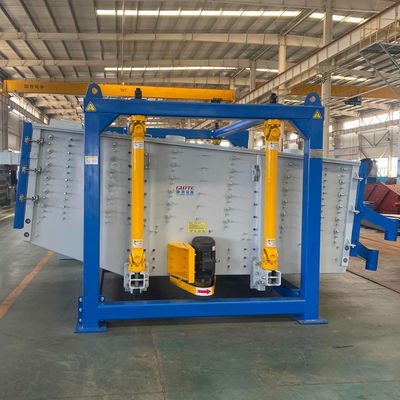

1-5 Layers Classifying Sand Vibrating Screen Machine for India Market

Large Image : 1-5 Layers Classifying Sand Vibrating Screen Machine for India Market

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$6,000.00/sets >=1 sets
Packaging Details:	Specially made wooden boxes and containers (sea transport),by 20 feet container/ 40 feet container ,and for large machinery, we use deck transportation or according to the customer's requirements
Supply Ability:	2 Set/Sets per Month

Contact Now

1-5 Layers Classifying Sand Vibrating Screen Machine for India Market

Description

Applicable Industries:	Energy & Mining	Showroom Location:	Viet Nam, Indonesia, India, South Korea, Sri Lanka, Uzbekistan
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2019	Warranty Of Core Components:	1 Year
Core Components:	Engine	Condition:	New
Type:	LINEAR	Application:	Ore
Voltage:	380V	Dimension(LWH):	Model
Weight:	1000 KG	Warranty:	1 Year
Product Name:	Square Swing Screen	Usage:	Classifying
Layer(s):	1-5 Layers	Capacity:	1-50tph
Screen Mesh:	2-120mesh	Frequency:	180-260r/min
Sieve Size:	1000*3000mm	Motor:	Vertical Vibrating Motor
Feed Size:	Less Than 20mm	Port:	Qingdao Port

Product Description

Equipment introduction:vibrating screen ,sand classifying screen

Equipment introduction: The square swing screen is a kind of high-efficiency screening equipment with high precision and large output specially designed for pursuing the screening accuracy at the expense of output. The vibration and vibration motion of the vibrator is transmitted to the screen surface through the square-shaped oscillating screen, so that the materials are quickly dispersed in the front of the sieve machine, so as to achieve the purpose of sieving in the university.
Application areas: Widely used in chemical industry, metallurgy, non-ferrous metals, non-ferrous metals, food, abrasives and other industries.

Product advantages:

1. Reasonable design, long service life: reasonable design, simple structure, stable operation; energy saving
and environmental protection, long service life, high screening accuracy, simple operation, in line with global users' production process requirements.
2. Stable high-capacity operation: unique grid structure and cleaning method, effectively prolong the service life of the screen and improve the production accuracy and capacity; the vibrating screen adopts a professional supplier of vibrating screen accessories to solve your worries about the replacement of accessories. Safe and reliable, saving maintenance costs.
3. Precise positioning: precise positioning, professional engineer design, combination of multiple styles, can effectively screen particles, powders, and slurries.
4. Complete variety: complete variety, single layer and multiple layers can be selected at random, the outlet can be rotated 360° at will, suitable for continuous assembly line production.

Specification

Type	Effective screening area (m²)	Power (kw)	Screen angle°	Number of layers	Rotation frequency (r/min)	Screen box travel (mm)
GFYB1030	3	3	5-8	1-5	180-260	25-60
GFYB1036	3.6	3	5-8	1-5	180-260	25-60
GFYB1230	3.6	4	5-8	1-5	180-260	25-60
GFYB1236	4.32	4	5-8	1-5	180-260	25-60
GFYB1530	4.5	5.5	5-8	1-5	180-260	25-60
GFYB1536	5.4	5.5	5-8	1-5	180-260	25-60
GFYB1830	5.4	7.5	5-8	1-5	180-260	25-60
GFYB1836	6.48	7.5	5-8	1-5	180-260	25-60
GFYB2030	6	7.5	5-8	1-5	180-260	25-60
GFYB2036	7.2	7.5	5-8	1-5	180-260	25-60

Working principle:The square swing screen can also be called a reciprocating vibration screen or a precision vibration screen. The
vibration force generated by the motor drive device is an inertial force that changes around a fixed axis and the direction
changes regularly. The essence is that the eccentric wheel rotates around the fixed axis The reciprocating inertial force formed.
According to the structural characteristics and working principle of the swing screen, the screen surface is generally horizontal
or slightly inclined (inclination angle is 0°~5°)
The working principle of the square swing sieve is: after the swing sieve is started, the shaking body of the equipment, that is,
the sieve box reciprocates back and forth under the action of inertia, and the sieve box and the sieve surface are periodically
shaken, so that the material on the sieve surface With the screen box for directional jumping movement. During this period, the
material smaller than the screen hole falls to the lower layer through the screen hole and becomes the under-screen. The material
larger than the screen hole diameter is discharged from the discharge port after continuous tumbling and jumping movement, thereby
completing the screening work.

Company Profile

Basic Company Introduction

Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.

About GUOTE

Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as:quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...

our laboratory

Certifications

Customer Photos

About customers:

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.

Services,packing,FAQ

1.EPC service for single equipment and whole production line. 2.OEM service for your personal equipment or production line 3.Testing before delivery and Pretesting in working site until get qualified products 4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.

Q: Why we believe in Weifang GuoteMining Equipment Company? A: 1. More than 10 years experience. Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry. A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.

Q: Payment terms A: Accepted Payment Type: T/T, L/C, Western Union, Cash.

After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery. Q: What will you do if the machine is broken down?

A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality
