Motor-Driven Industrial Dry Powder Air Classifier Cyclone Air Distributors Separator

Large Image : Motor-Driven Industrial Dry Powder Air Classifier Cyclone Air Distributors Separator

Product Details:

Place of Origin:	shandong
Brand Name:	Guote
Certification:	ISO:9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$38,800.00/sets 1-4 sets
Packaging Details:	Containers or according to customer requirements
Supply Ability:	100 Set/Sets per Month

Contact Now

Motor-Driven Industrial Dry Powder Air Classifier Cyclone Air Distributors Separator

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Type:	Magnetic Separator
Production Capacity:	98%	Voltage:	220V/380V
Dimension(LWH):	700020003000 Mm	Weight:	2750 KG
Warranty:	1 Year	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Easy To Operate, Long Service Life	Width:	500-2000mm
Keywords:	Air Classifier	Material:	Steel
Application:	Ore	Capacity:	10-20000t/h
Power:	Power: 15 - 380 KW	Product Fineness:	D97: 3 - 150 Micron
Installation:	Engineer Instruction And Supervision On Site	Port:	Qingdao

Product Description

Industrial Collector Fine Powder Cyclone Air Classifier Separator Machine, Classifier Powder Separator Equipment

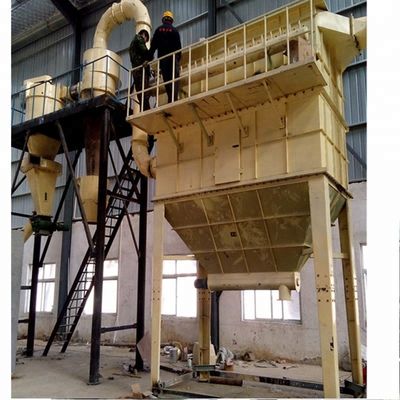

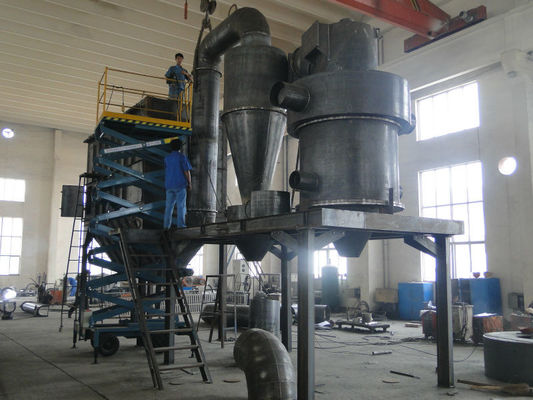

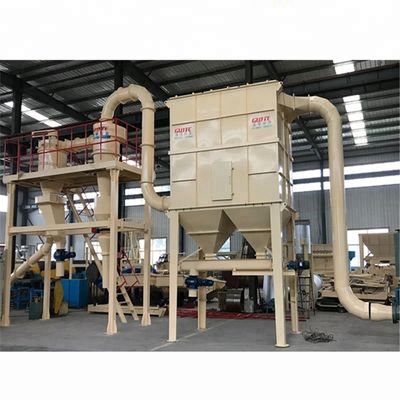

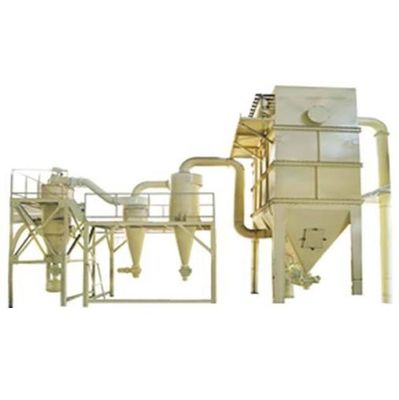

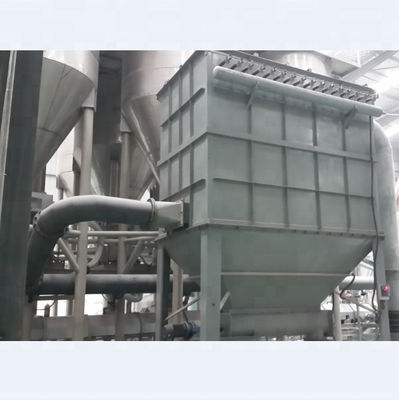

The classifying device is composed of pneumatic classifier, cyclone, collector, induced draft fan, control cabinet and so on.

Equipped with second air inlet and vertical impeller rotor, the materials are fed in visa the bottom roller under the force
generated from the induced draft fan and then mixed with first input air to disperse particle and then brought to classifying
zone. Owing to the high rotary speed of classifying rotor, the particles are under the centrifugal force produced by the
classifying rotor and centripetal force generated from induced draft fan. When the centrifugal force is stronger than the
centripetal force, the coarse particles fall down along inside roller. The second air is induced to sieve the coarse material and separate the fine powder that stick on or mixed with the coarse. After the coarse material is discharged from classifier, the over-milled powder are collected by the cyclone and pulse collector.

Product advantages:

1.With special design for classifying structure and its high classifying precision, it can block big granular strictly.
2.To get the required product, you can adjust the rotary speed of classifying wheel and air inlet volume.
3.Single vertical rotor with low speed, steady flow field, high efficiency and robust performance.
4.With multi-series structure, it can get products with different size to meet requirement

Industrial Collector Fine Powder Cyclone Air Classifier Separator Machine, Classifier Powder Separator Equipment the classifying device is composed of pneumatic classifier, cyclone, collector, induced draft fan, control cabinet and so on.

Specification

Model	Capacity(kg/h)	Efficiency of classification	Product Particle Size(um)	Power(kw)
GF010	10-50	70-90%	D97=3-50	7
GF020	50-350				15-19
GF050	100-800				25-30
GF100	300-1500				41-48
GF200	500-4000				63-73
GF400	2000-5000				97-120
GF500	3000-6000				110-130
GF600	4000-8000				140-169
GF800	6000-12000				170-210
GF1200	8000-20000				230-380

Packing & Delivery

FAQ

Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part
availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
