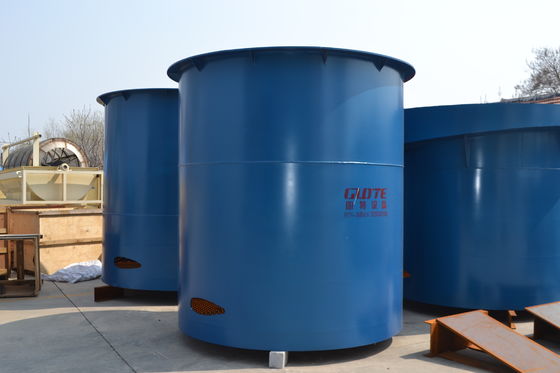

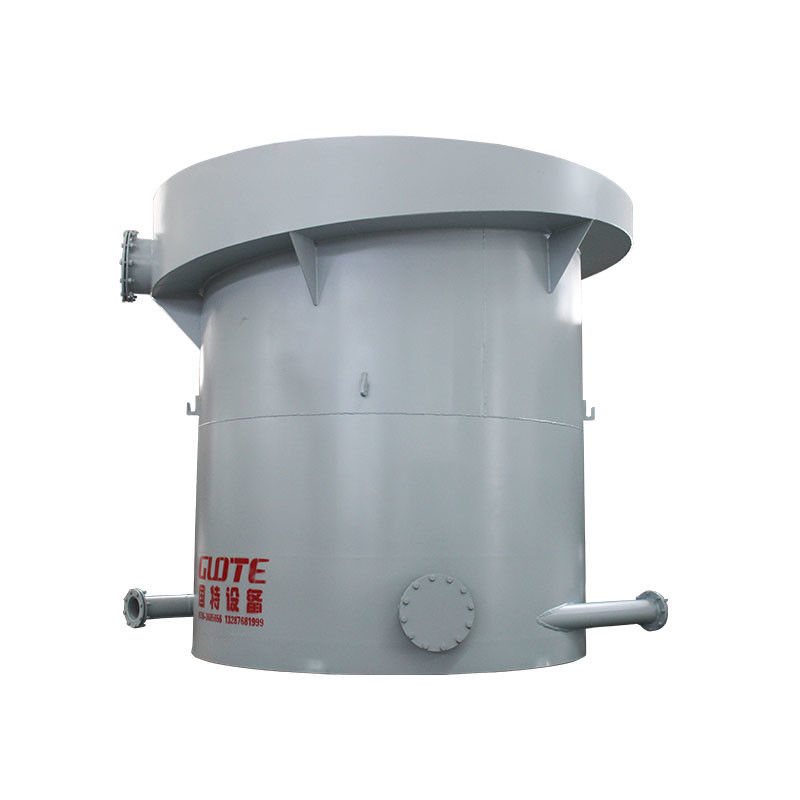

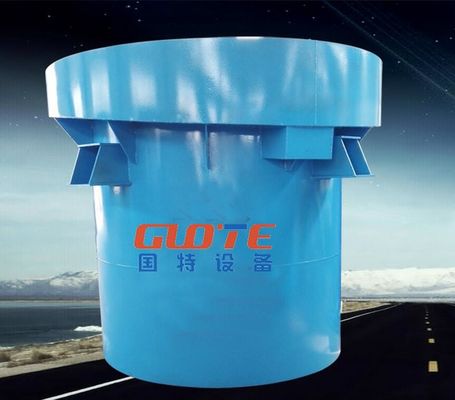

Granularity Classifying Machine Hindered Settler for Silica Sand Separation Efficiency

Product Introduction:

Strict grading of coarse and fine particles of silica sand or other minerals. It can be used as an alternative to fine sieve for strength control of mineral separation with specific gravity difference

Application scope:

Strict grading of coarse and fine particles of silica sand or other minerals is applicable to mineral separation with specific gravity

Materials :silica sand ,quartz sand,kalialbite etc

Advantages:

1. Under the action of upwelling water, the material in the tube can achieve the purpose of granularity grading or specific gravity separation, with high production efficiency and low energy consumption automatic control system ,

2. Equipment with automatic control system ,The parameter of the automatic control system can be adjusted then change the grading particle size and easy to operate.

3. The water tank under the barrel equipment with special installation , When the water is stopped, the upper water hole is closed automatically, which prevents the material in the tube from blocking the hole and entering the water tank

Technical parameter:

Working principle:

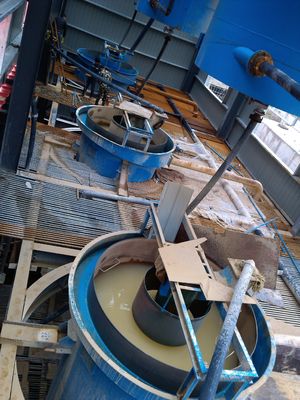

The mixture of the sand and water are fed from the top through the feeder trough ,moving down in the cylinder body at the action of the gravity . There is an empty water jet plate at the bottom of the barrel, which gradually forms a fluidized bed when the rising water interacts with the falling solid particles . Particles of different particle sizes will fall down or move up at a blocked drop rate at the volume concentration . With the help of electronic pressure sensor, the pressure condition of the sulfide bed layer can be measured and the opening degree of the ore discharge valve can be automatically adjusted to ensure the accurate separation classification as required

Certification

Our customers :

1.EPC service for single equipment and whole production line.

2.OEM service for your personal equipment or production line

3.Testing before delivery  and Pretesting in working site until get qualified products

4.24hours for technical Operation Guide and  4hours offer technical proposal for problem shooting.
