Silica Sand Screen Wet Type Hydraulic Separator with Advanced PLC System

Product name: GSF hydraulic classifier
The grain—size: < 5 mm
Production capacity: 3—40 t/h

Material:Quartz , feldspar ,coal

Application field:Mainly used in various industries with strict classification and selection of silica sand

Coal/ash separations by density
Silica/heavy mineral separation by density
Removal of deleterious material from sand including lignite, coal, wood, plastic/paper, clay/ silt and mica
Alternative to cycloning:
- where fines must not be present in the underflow
- for removing large amounts of clays and slimes
- for sharp classification in mill circuits
- at cut sizes coarser than usual applications for cyclones,

Equipment introduction:Mainly used for fine mineral particle degree of classification

Advantages:

1, the material in the cylinder body by the rising water effect, achieve the purpose of sizing, the proportion of separation,
high efficiency, low energy consumption.

2, equipped with automatic control system, the operation parameter adjustment is simple and convenient, easy to control.

3, a water tank at the bottom of the barrel is equipped with special devices and to rise above the water hole automatically shut down, the cylinder body of the material will not block the hole and into the tank.

Extremely efficient washing of soluble or colloidal species from granular particles by virtue of counter-current plug flow washing
High sharpness, little misplaced material via direct bed measurement
Multiple discharge valves on large units, to continue an even bed draw down without valve blockages or channeling
Multiple water injection nozzles result in uniform flow even at minimal flow rates
No moving parts are exposed to process slurry, meaning little maintenance is required and a long operating life is achievable
Low headroom design results in low capital installation and maintenance costs and easier inspection
Zero bypass, no fines in underflow

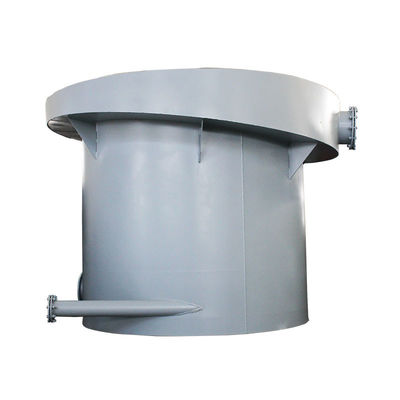

The  flat bottom classifier is a well proven performer for the hydraulic classification of particles by size or density. The  flat bottom classifier reliably extracts light or small particles from slurry at high efficiency, while displacing a minimum of heavy or coarse particles to the overflow.
