High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers

High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers

Large Image :  High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers

Product Details:
Place of Origin: Shandong, China
Brand Name: Guote
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $10,000.00/sets >=1 sets
Packaging Details: standard export container,20GP,40GP ,40HQ container,in bulk,the spare parts in wooden case or according to the customer's requirements.
Supply Ability: 10 Set/Sets per Month
Contact Now

High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers

Description
Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Impact Crusher
Application: To Make Slab Sand Motor Type: AC Motor
Capacity(t/h): 1-50tph Dimension(L*W*H): Different
Weight: 4000 KG Warranty: 1 Year
Marketing Type: Hot Product 2019 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: PLC Key Selling Points: High Sand Making Rate
Keyword: Sand Making Machine Power: 83kw
Dust Control Area: 100 Cubic Meter Capacity: 5-30 T/h
Installation: Engineer Guide Quality: High Level
Rotate Speed: Adjustable After Warranty Service: Video Technical Support
After-sales Service Provided: Free Spare Parts Product Name: China Vsi Crusher Quarry Grind Sand Making Machine Price
Port: QINGDAO

Input size:≤30 mm
Output size:0.125-4.75 mm(4-120 mesh) 4-6 ,6-8,8-16,16-26,26-40,40-70,70-120 mesh
Capacity:5-50 TPH
Finished product Usage：for quartz slab

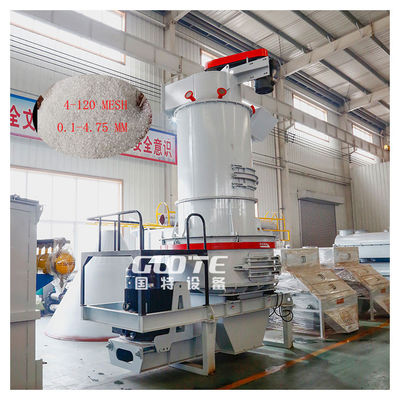

Product Overview
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 0

Sand Making Machine

our patent product, feeding size less than 3 cm, can make 4-120 mesh quartz plate sand
finished product：high purity, no pollution, large output, low investment
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 1

Basic Introduction

Vertical sand making machine is our company's patented product, with the characteristics of large output, high purity, pollution-free and less investment. The  plate sand is
specially used for high-grade quartz plate, which can be used in plate, glass, ceramics, casting, construction and other industries.
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 2

Outstanding advantages

1. Large output and high efficiency. 2. The sand production rate is high, more than 90%. 3. The product has good iron removal
effect. 4. The entire equipment structure is simple and reasonable, easy to operate, low failure rate, easy maintenance. 5.
Environment-friendly and dust-free.
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 3

Working principle

Feed requirements are less than 3cm, the material from the top of the equipment directly into the high-speed rotating turntable, at this time from the feed into the material and the surrounding into the material impact, stone hit stone, the formation of sand, you can get 4-120 qualified plate sand grain size.
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 4

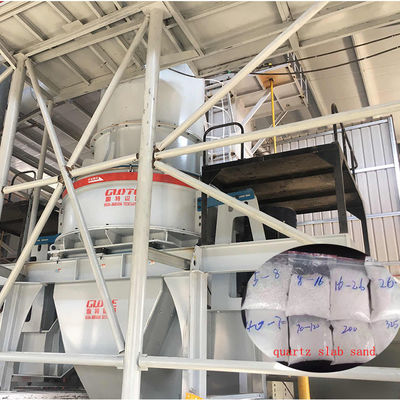

product scene picture
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 5

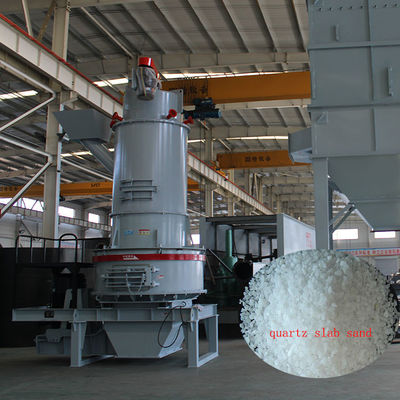

product scene picture
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 6

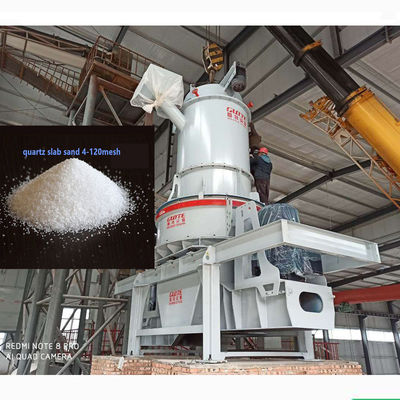

product scene picture
PRODUCT SPECIFICATIONS
Model
Feed granularity
（mm)
Product granularity
(mesh)

Total power
(kw)
Dust removal area
(㎡)
Rotating Speed
(rpm)
Productivity
(t/h)
GZP180
≤50
4-120
110
100
Variable speed
7-9
GZP200
≤80
4-120
130
150
8-12
GZP220
≤120
4-120
170
200
10-15
GZP260
≤150
4-120
260
300
15-20

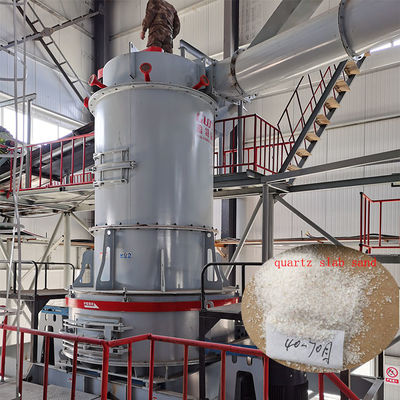

Successful Project
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 7
Project in Vietnam
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 8
Project in Gangsu
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 9
Project in Xinjiang
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 10
Company Profile
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 11
Basic Company Introduction
Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 12
About GUOTE
Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 13
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 14
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 15
our laboratory
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 16
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 17
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 18
Certifications
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 19
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 20
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 21
Customer Photos
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 22

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
Services，packing，FAQ
1.EPC service for single equipment and whole production line. 2.OEM service for your personal equipment or production line  3.Testing before delivery  and Pretesting in working site until get qualified products  4.24hours for technical Operation Guide and  4hours offer technical proposal for problem shooting.
High Sand Making Rate 0-5mm Silica Sand Maker for 1-50tph Capacity from Suppliers 23
Q: Why we believe in Weifang GuoteMining Equipment  Company? A: 1. More than 10 years experience. Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry. A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery. Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality
