Air Classifier for Dry Classification of Micro Powder in Fine Powder Production Plant

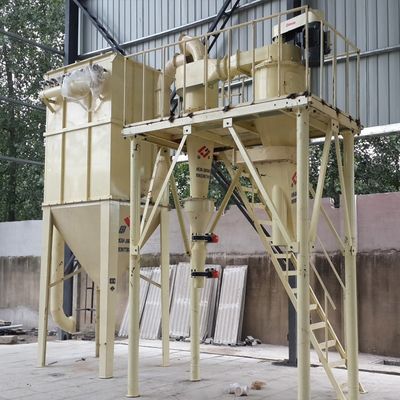

Large Image : Air Classifier for Dry Classification of Micro Powder in Fine Powder Production Plant

Product Details:

Place of Origin:	Shandong, China
Brand Name:	GUOTE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,000.00/sets >=1 sets
Packaging Details:	Special boxes and containers (sea transport) for Nice Quality laboratory magnetic separator
Supply Ability:	500 Set/Sets per Month Nice Quality laboratory magnetic separator

Contact Now

Air Classifier for Dry Classification of Micro Powder in Fine Powder Production Plant

Description

Applicable Industries:	Energy & Mining	Showroom Location:	None
Condition:	New	Production Capacity:	98%
Voltage:	380V	Dimension(LWH):	Model Choosing
Weight:	5000 KG	Warranty:	1 Year
Marketing Type:	Ordinary Product	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor, PLC, Engine, Gearbox	Key Selling Points:	High Productivity
Blower Air Pressure:	2.18-2.6 Kpa	Blower Rotating Speed:	710-1500 R/min
Rotating Speed Of Main Shaft:	100-380 R/min	Matched Mill:	1.5, 1.83, 2.2, 2.4, 3.0
Application Field:	Ultrafine Powder Classification	Applicable Materials:	Microsilica, Calcium Carbonate
Port:	QingDao

Product Description

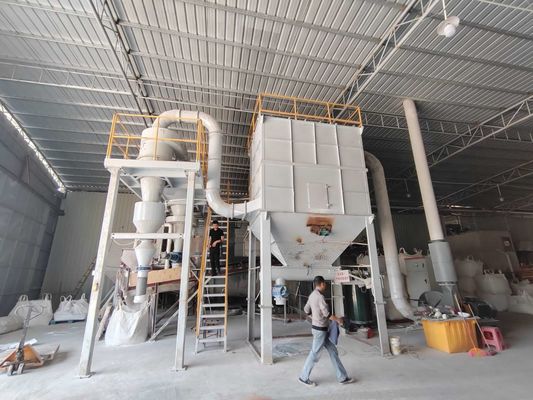

Air Classifier for Dry Classification of Micro Powder in Fine Powder Production Plant 0

The classifying device is composed of pneumatic classifier, cycione, collector induced draft fan,control cabinet and so on,Equipped with second air iniet and vertical impeller rotro.the materials are fed in visa the bottom roller under the force generated from the induced draft fan and then mixed with first input air to disperse particle and then brought to classifying zone.Owing to the high rotary speed of classifying rotor,the particles are under the centrifugal force produced by the classifying rotor and centripetal force generatde from induced draft fan.When the centrifugal force is strong than the centripetal force,the coarse particles fall down along inside roller.The second air is induced to sieve the coarse material is discharged from classifier,the over-milled powder are collected by the cyclone and pulse collector.

Technical Data

Model	Capacity(kg)	Grading efficiency	Product granularity	Supporting power(kw)
GF010	10-50	70-90%	D97=5-500	7
GF020	50-350			15-19
GF050	100-800			25-30
GF100	300-1500			41-48
GF200	500-4000			63-73
GF400	200-5000			97-120

Working Principe

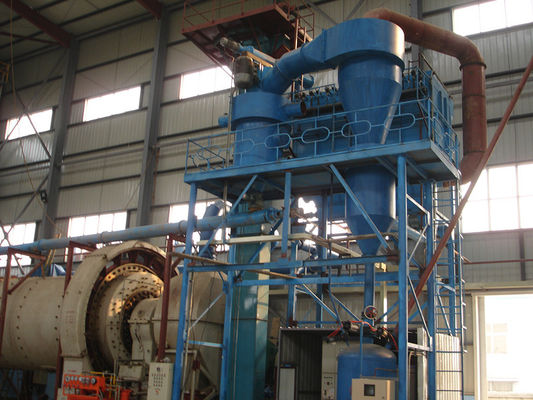

Air Classifier for Dry Classification of Micro Powder in Fine Powder Production Plant 1

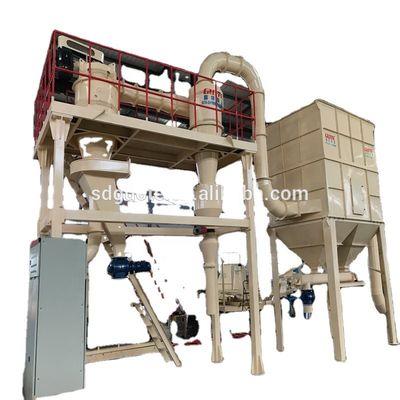

1,bin 2,operating platform 3,classifier 4,cyclone collector 5,pulse dust collector 6,a high pressure draught fan 7,the cabinet

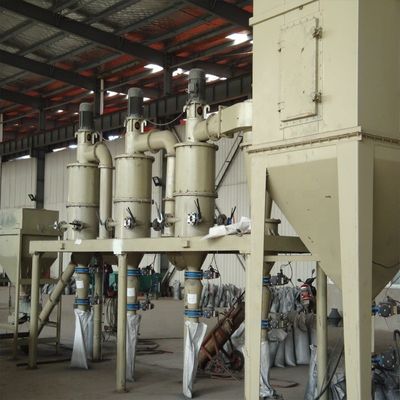

Air Classifier for Dry Classification of Micro Powder in Fine Powder Production Plant 2

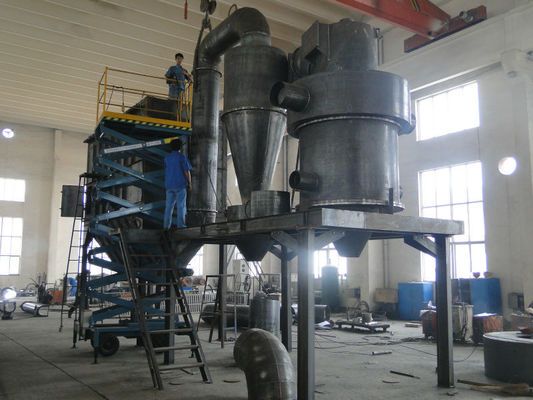

Air Classifier for Dry Classification of Micro Powder in Fine Powder Production Plant 3

Technical Features

♦The classifier used within the ceramic protection, less equipment wear, no pollution, high purity.

♦ classifier structure is designed, almost by all large particles, high grading precision, large granular control.

♦ classification by grading impeller speed and fan free to adjust the air volume, in order to obtain the required product, grading range.

♦ adopts low speed vertical single impeller hierarchical structure, material flow is stable, equipment processing capacity, high classification efficiency.

♦ using multi-stage structure, at the same time granularity classification of several products, the particle size distribution to obtain the ideal.
