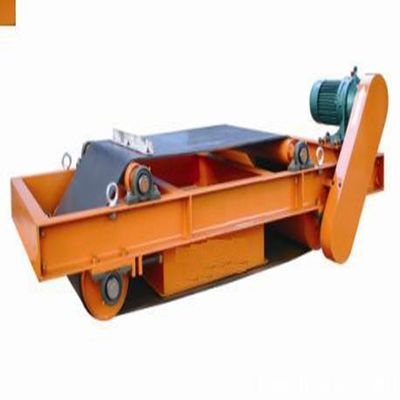

Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage

Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage
Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage

Large Image :  Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage

Product Details:
Place of Origin: Shandong, China
Brand Name: GUOTE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $38,800.00/sets 1-4 sets
Packaging Details: Containers or according to customer requirements
Supply Ability: 500 Set/Sets per Month
Contact Now

Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage

Description
Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Magnetic Separator, Permanent Magnet Or Electromagnetic
Production Capacity: 98% Voltage: 220V/380V
Dimension(L*W*H): 1900*735*935 Weight: 750 KG
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Not Available Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Key Selling Points: Easy To Operate, Self-discharging Application: Iron Removal
Belt Width: 500-2000mm Keywords: Iron Separator
Machine Type: Beneficiation Equipment Advantage: Self Discharging
Cooling Type: Oil Cooled Magnetic Intencity: Nlt700gs
Overband Magnets Capacity: As Required Port: QINGDAO

Product Description
Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage 0
Introduction
Guote RCYD Self-cleaning Permanent Magnetic Separators for belt conveyor is made up with permanent magnetic chip , iron-discharging belt, reducer, frame and roller etc. and can match with all kinds of conveyors.
It is used to eliminate the ferromagnetic material weighing from 0.1kg to 35kg .we adopt the computerized simulating and make it still work in the harsh environment for a long period.
Specification
Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage 1

Features:
1)High magnetic field intensity, usually used in occasions with plenty of iron.
2)The wholly sealed structure makes the separator water-proof, dust- proof and corrosion resisting.
3)Made of rare earth NdFeB
4)High gauss
5)Energy saving
6)Easy to install and convenient to use.
7)High efficiency and stable performance.
8)Good operational reliability and flexibility
Model
Belt  width (mm)
Magnetic strength (MT)
Material thickness (mm)
Driving power (kw)
Belt speed (m/s)
RCYD-6
600
60
120
1.5
4.5
RCYD-8
800
70
200
2.2
RCYD-10
1000
70
250
3
RCYD-12
1200
70
300
4
RCYD-14
1400
70
350
4
RCYD-16
1600
70
400
5.5
RCYD-18
1800
72
450
5.5
RCYD-20
2000
72
500
7.5
Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage 2
Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage 3
Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage 4
Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage 5
Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage 6
Packing and shipping
Suspension Conveyor Belt Permanent Magnetic Separator with Self Discharging Advantage 7
