Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency

Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency

Large Image :  Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency

Product Details:
Place of Origin: Shandong, China
Brand Name: GUOTE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $38,800.00/sets 1-4 sets
Packaging Details: Containers or according to customer requirements
Supply Ability: 500 Set/Sets per Month
Contact Now

Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency

Description
Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Magnetic Separator, Permanent Magnet Or Electromagnetic
Production Capacity: 98% Voltage: 220V/380V
Dimension(L*W*H): 1900*735*935 Weight: 750 KG
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Not Available Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Key Selling Points: Easy To Operate, Self-discharging Application: Iron Removal
Belt Width: 500-2000mm Keywords: Iron Separator
Machine Type: Beneficiation Equipment Advantage: Self Discharging
Cooling Type: Oil Cooled Magnetic Intencity: Nlt700gs
Overband Magnets Capacity: As Required Port: QINGDAO

Product Description
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 0
Introduction

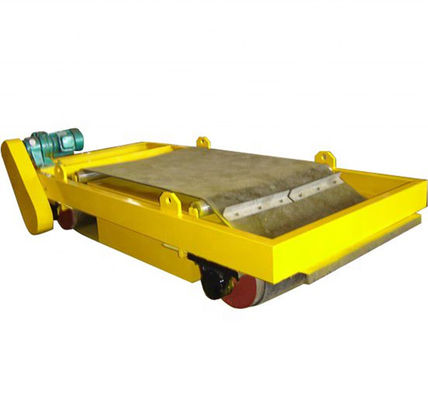

Guote RCYD Self-cleaning Permanent Magnetic Separators for belt conveyor is made up with permanent magnetic chip , iron-discharging belt, reducer, frame and roller etc. and can match with all kinds of conveyors.
It is used to eliminate the ferromagnetic material weighing from 0.1kg to 35kg .we adopt the computerized simulating and make it still work in the harsh environment for a long period.
Specification
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 1

Features:
1)High magnetic field intensity, usually used in occasions with plenty of iron.
2)The wholly sealed structure makes the separator water-proof, dust- proof and corrosion resisting.
3)Made of rare earth NdFeB
4)High gauss
5)Energy saving
6)Easy to install and convenient to use.
7)High efficiency and stable performance.
8)Good operational reliability and flexibility
Model
Belt  width (mm)
Magnetic strength (MT)
Material thickness (mm)
Driving power (kw)
Belt speed (m/s)
RCYD-6
600
60
120
1.5
4.5
RCYD-8
800
70
200
2.2
RCYD-10
1000
70
250
3
RCYD-12
1200
70
300
4
RCYD-14
1400
70
350
4
RCYD-16
1600
70
400
5.5
RCYD-18
1800
72
450
5.5
RCYD-20
2000
72
500
7.5
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 2
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 3
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 4
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 5
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 6
Packing and shipping
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 7
Recommend Products
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 8

RCYB Iron Separator

Permanent Magnetic Type
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 9

RCYD Iron Separator

Permanent Magnetic Type
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 10

RCYF Pipeline Iron Separator

Permanent Magnetic Type
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 11

RCDB Iron Separator

Electromagnetic Type
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 12

RCDD Iron Separator

Electromagnetic Type
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 13

RCYZ Pipeline Iron Separator

Permanent Magnetic Type
Company Profile
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 14
Basic Company Introduction
Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 15
About GUOTE
Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 16
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 17
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 18
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 19
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 20
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 21
Certifications
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 22
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 23
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 24
Customer Photos
Permanent Magnet Type Mineral Magnetic Separator Machine for 98% Separation Efficiency 25

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
