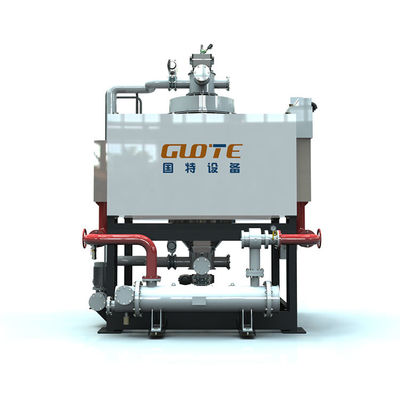

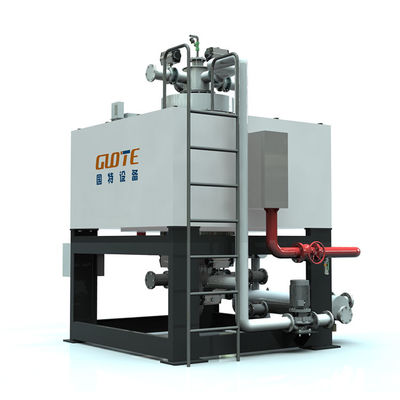

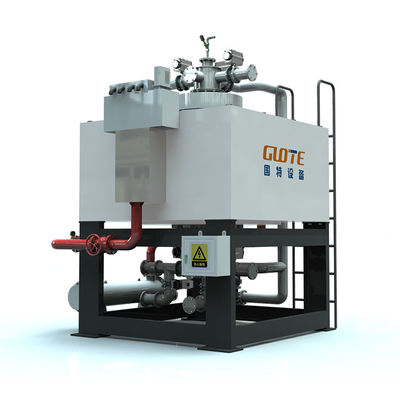

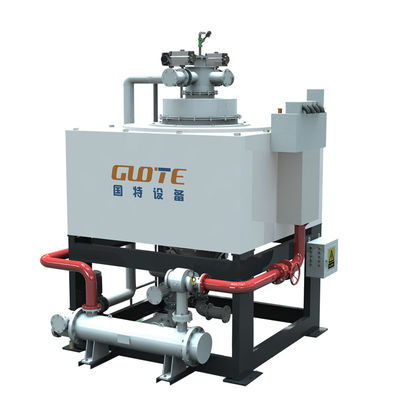

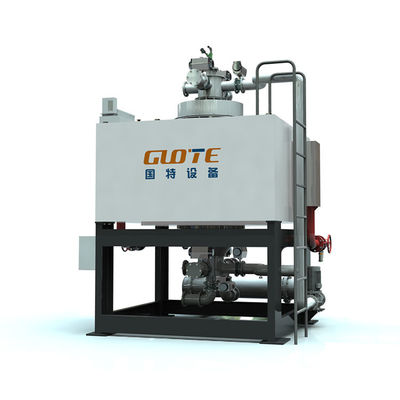

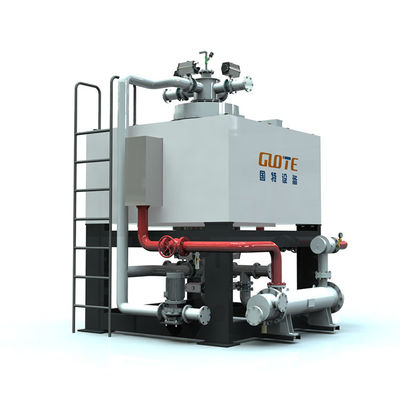

380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation

380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation
380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation

Large Image :  380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation

Product Details:
Place of Origin: Shandong, China
Brand Name: guote
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3,000.00/sets >=1 sets
Packaging Details: Specially made wooden boxes and containers (sea transport) for RCYB series conveyor belt magnetic separator for separating Iron
Supply Ability: 50 Set/Sets per Month magnetic separator for separating Iron
Contact Now

380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation

Description
Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Magnetic Separator
Production Capacity: 98% Voltage: 380V
Dimension(L*W*H): Depend On Different Models Weight: 2800 KG
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, PLC, Gearbox
Key Selling Points: High Rigidity, Automatic Cooling Type: Oil And Water Compound
Material: Stainless Steel Rated Excitation Power(Kw): Varies
Excitation Current(Dca): 224-332 Rated Background Magnetic Intensity: 1. 3t
Outline Dimension(mm): According To Customer Requirements Keywords: High Gradient Magnetic Separator
Keywords 2: Magnetic Separator For Slurry Keywords 3: Magnetic Separator
Port: Qingdao

Product Description
380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 0

Product Introduction:

GTDZ series electromagnetic sizing agent magnetic separator is the latest magnetic separation products developed by our company ,The background magnetic field reaches 1.5t ,High magnetic field gradient .
It can be equipped with a variety of special magnetic stainless steel media to meet the needs of different minerals in different regions

Outstanding advantages:

Unique electromagnetic coil design and efficient cooling method
---The magnetic coil of the magnetic separator of electromagnetic paste is cooled with fully sealed cooling oil, and the external
high-efficiency heat exchanger is used for heat exchange of oil and water to realize compound cooling of oil and water, with fast
cooling speed, low temperature rise and stable magnetic field

The separation medium produces high magnetic field gradient, and the removal of iron is better

---The medium is made of special magnetic-conducting stainless steel, which can generate extremely high gradient magnetic field
under the excitation of background magnetic field. It has a strong adsorption effect on low content of weak magnetic impurities
and a better effect on iron removal

Fully automatic operation, low operating and maintenance cost
---The working process of this equipment is controlled by automatic program, which can realize automatic operation without human
being on duty and reduce operation and maintenance cost

High pressure water positive and reverse washing, iron removal clean, no residue
--- When removing iron from the equipment, use high pressure water to clean the medium and remove iron cleanly. The cleaning time
can be set according to different mineral stages to improve the treatment efficiency
Specification
Model
GTDZ-520F
GTDZ-780F
GTDZ-1000F
GTDZ-1250F
GTDZ-1500F
GTDZ-2000F
Rated background field strength(T)
1.0
0.8
Input Voltage (ACV)
380
Exciting Current(DCA)

≤220

≤300

≤360

≤420

≤510

≤590
Rated exciting power (KW)
≤80
≤120
≤130
≤160
≤210
≤230
Cooling Mode
 Oil and weter compound
Magnetic Cavity (mm)
520
780
1000
1250
1500
2000
Inlet pipe size (mm)
100
150
200
200
250
300
Water pump motor power (KW)
5.5
11
18.5
18.5
30
45
Capacity (m³/h)
15-25
30-40
55-70
70-90
90-110
11-140
Slurry Density
10-25%
Overall Dimension (mm)
2700*3040*3200
3700*3100*3800
3550*3200*3720
4100*4000*4200
4300*4200*4350
5450*5150*6000
Packing & Delivery
380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 1
380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 2
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 3
380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 4
380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 5
380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 6
380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 7
380V Magnet Mineral Separator for Aluminum and Copper Non Ferrous Metal Separation 8
Application scope:
used for iron removal and purification of nonmagnetic ores such as quartz ,feldspar ,kaolin and other minerals . It can also be used for waste water treatment and clean of contaminated chemical materials in iron and steel power plants.
FAQ
SemQ: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part
availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
