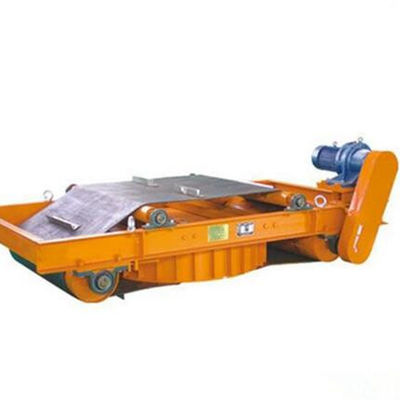

Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator

Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator
Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator

Large Image :  Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator

Product Details:
Place of Origin: Shandong, China
Brand Name: GUOTE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,020.00/sets
Contact Now

Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator

Description
Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Magnetic Separator
Production Capacity: 100t/h Voltage: 220V/380V
Dimension(L*W*H): Diffrent Model Weight: 1380 KG
Warranty: 1 Year Marketing Type: Hot Product 2019
Machinery Test Report: Not Available Video Outgoing-inspection: Not Available
Warranty Of Core Components: 1 Year Core Components: Motor
Key Selling Points: Long Service Life Product Name: Dry Self-cleaning Overband Magnetic Separator
Application: Particles And Block Materials Installation: Technical Guidance
Color: Customers' Requirements Material: Stainless Steel
Item: Beneficiation Plant Price: Low Price
Motor: Electric Quality: High Quality
After-sales Service Provided: Video Technical Support

RCDD series dry self-cleaning overband magnetic separator



Summary

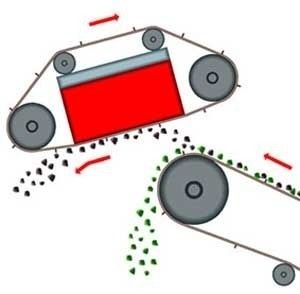

RCDD series self-cleaning electromagnetic separator is used for automatically removing particles and block scrap iron in the non magnetic material.It adopts electrical resin casting and self-cooling sealed structure. There are several advantages :large penetration depth, strong suction, dustproof, waterproof and corrosion resistance . Moreover, it can still work in harsh environments.



Overall and installation diagram



Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator 0





MODEL

BELT WIDTH MM

RATED LIFTING HEIGHT H ≤ MM

MAGNETIC FIELD INTENSITY ≥ MT

MATERIAL THICKNESS ≤ MM

EXCITATION POWER       ≤ KW

FAN POWER   ≤ KW

BELT SPEED   ≤ M/S

WEIGHT

DIMENSIONS MM

A

B

C

D

E

RCDD-5

500

150

60

100

1

1.5

4.5

950

2020

1040

775

853

1000

RCDD-6

600

175

60

130

1.8

1.5

1380

2140

1100

800

910

1100

RCDD-6.5

650

200

70

150

2

2.2

1490

2275

1190

820

988

1250

RCDD-8

800

250

70

200

3

2.2

1770

2540

1480

865

1287

1350

RCDD-10

1000

300

70

250

4.5

3

2380

2750

1635

940

1420

1400

RCDD-12

1200

350

70

300

5.8

3

3170

3000

1800

1010

1580

1700

RCDD-14

1400

400

70

350

6.7

4

4800

3500

2050

1050

1800

2000

RCDD-16

1600

450

70

400

9.5

5.5

6300

3900

2450

1180

2200

2350

RCDD-18

1800

500

70

450

12.5

7.5

7800

4400

2850

1290

2600

2800







1

 Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator 1

\

Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator 2Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator 3Long Service Life Electric Motor 2023 RCDD Series Dry Self-Cleaning Overband Magnetic Separator 4
